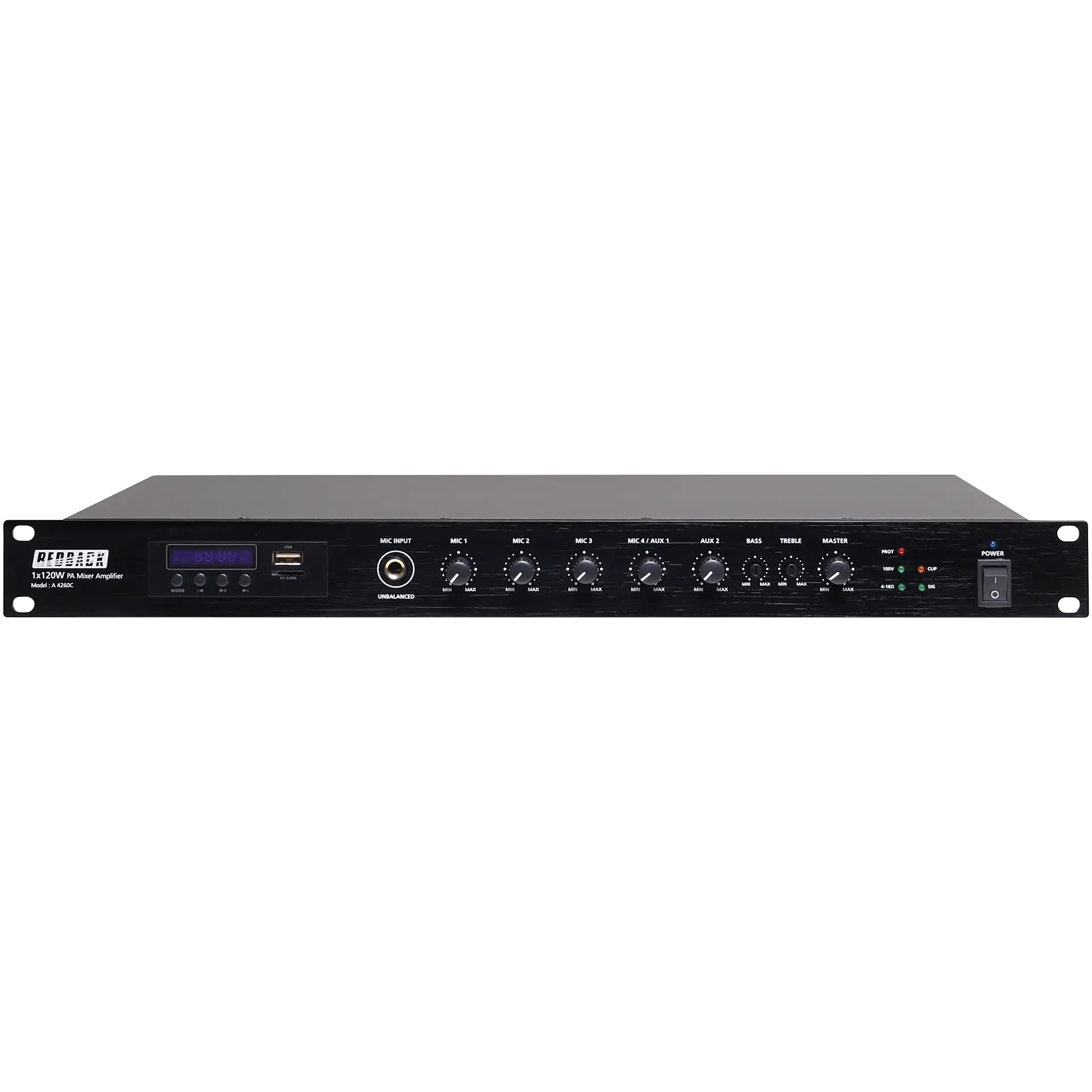

Compact 100V Class D Bluetooth PA Mixer Amplifier 120W

by: Redback
SKU: A4260C
These 6 input compact Class-D design amplifiers offer multi source PA sound including 4 mic and 2 AUX inputs plus USB/SD card/FM tuner audio playback and Bluetooth streaming functionality.
$726.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $726.36
2+ $680.91
i h

Overview

These 6 input compact Class-D design amplifiers offer multi source mixing including 4 mic and 2 AUX inputs plus USB/SD card/FM tuner audio playback and Bluetooth streaming functionality. They are an all in one amplifier and audio source housed in just a single rack unit of space! Ideal for use in retail, offices, venues and other commercial buildings.

The unique feature of the Class-D design is the significant reduction in power consumption and heat generation due to the switchmode power supply design employed. They utilise active power factor correction (APFC) switch mode power technology allowing an efficiency rating of 85%. The result of which is a much cooler running amplifier (<55°C), offering a long life span and significant power savings for a reduced environmental impact.

Screw terminal connections are provides for balanced inputs sources and 100V output. A stereo RCA line output is provided, plus two stereo RCA line inputs. Inputs 1 - 4 have switches to select mic or line operation and phantom power on/off. A top priority emergency input is also provided which can be connected to an alert/evac tone generator. Music playback is easily managed via the front panel track selection and play/pause controls. Music files can be stored and played back from SD card, USB memory stick or Bluetooth enabled device. Dimensions: 484W x 330D x 44Hmm.



Features:

  • Mixer amplifier with in-built SD/USB/FM tuner/Bluetooth music source
  • 85% efficient class-D power performance
  • Low power consumption & heat generation
  • Compact 1RU case
  • Bass & treble control
  • Front panel mic input
  • Protection circuitry
  • LED indicators for output type, clipping, protection and power
  • Mic/Line/Phantom Power options on Mic 1-4
  • Emergency priority input (Mic 1)
  • Adjustable VOX muting





Specifications:



Rated Power Output: 1 x 120W RMS

Output: 100V or 4-16 ohm switchable

Frequency Response: 80-16000Hz, +/-3dB

THD: Less than 0.5% at 1 kHz (1/3 Rated Power)

S/N Ratio: Better than 80dB

Tone Controls: BASS: 100 Hz(+/- 10dB), TREBLE: 10k Hz(+/- 10dB)

FM Tuner: 87.5 - 108MHZ in 0.1MHz steps.

FM Tuner: Balanced input Channel 1-4, Stereo aux 1-2, 6.35mm unbal. Ch 1

Controls: All input gain, 1 treble, 1 bass, 1 mute, and power switch

Cooling: Internal 24 VDC fan, extensive heat sinking

Indicators: Power indicator LED, PROT, 100V, 4-16 OHM, CLIP, SIG

Protection: Current limiter, short circuit and thermal protection circuits

Power Consumption: 185W

Power Requirements: 220-240V AC, 50/60 Hz

Dimensions: 44.5H x 483W x 330D mm

Built-in Dimensions: 1U 19 inch rack mount

Weight: 5.6kg

Finish: Panel: Aluminium plate, black Case: steel plate, black
