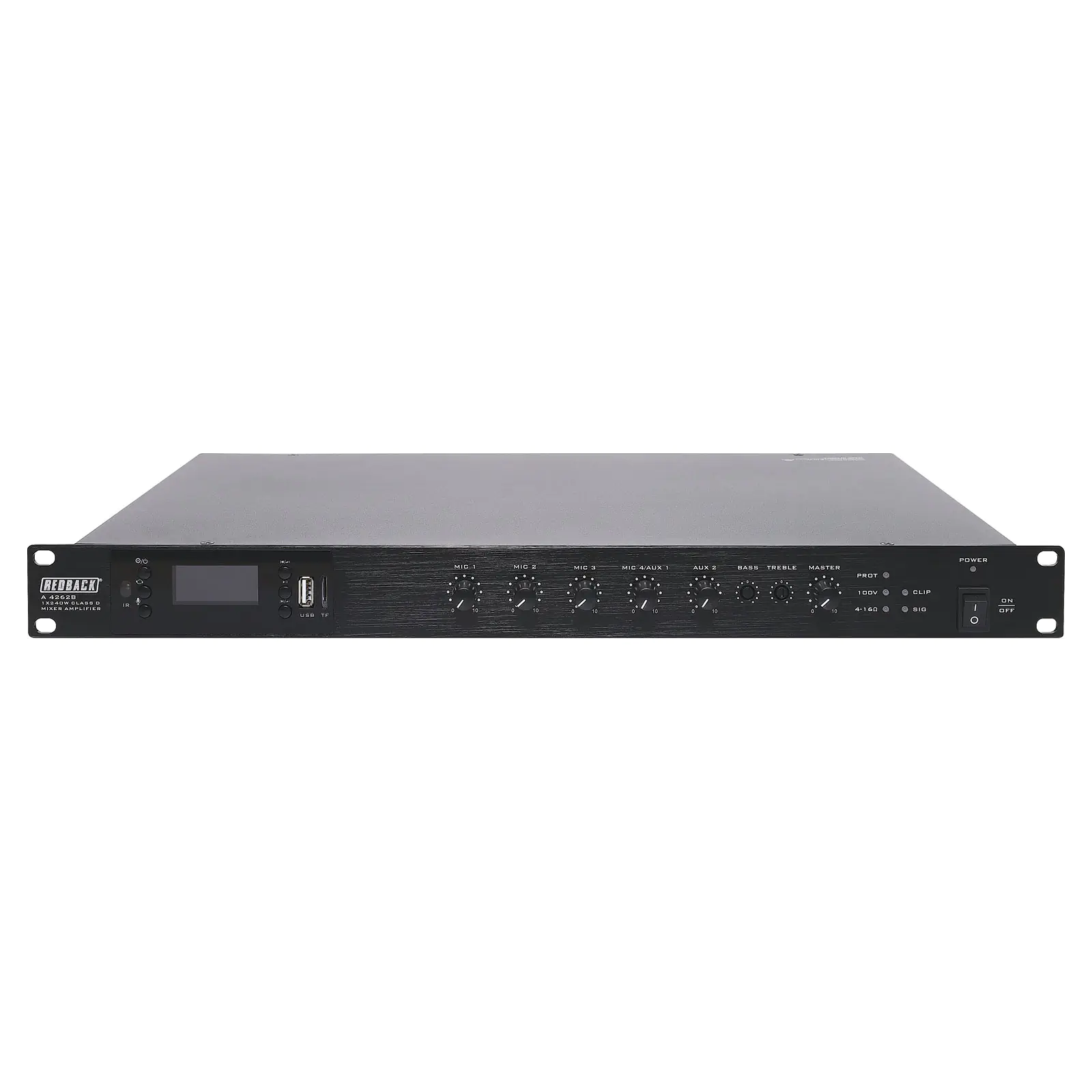

Compact 100V Class D Bluetooth PA Mixer Amplifier 240W

by: Redback
SKU: A4262B
These compact Class-D design amplifiers offer multi source PA sound plus USB/SD card/FM tuner audio playback and Bluetooth streaming functionality.
$908.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $908.18
2+ $817.27
i h

Overview

These compact Class-D design amplifiers offer multi source mixing plus USB/SD card/FM tuner audio playback and Bluetooth streaming functionality. They are an all in one amplifier and audio source housed in just a single rack unit of space! Ideal for use in retail, offices, venues and other commercial buildings. Dimensions: 484 x 295 x 44 mm

The unique feature of the Class-D design is the significant reduction in power consumption and heat generation due to the switch mode power supply design employed. They utilise active power factor correction (APFC) switch mode power technology allowing an efficiency rating of 85%. The result of which is a much cooler running amplifier (<55°C), offering a long life span and significant power savings for a reduced environmental impact.

Screw terminal connections are provides for balanced inputs from sources, 100V / 4-16Ω output and 24V DC input. A stereo RCA line output is provided, plus two stereo RCA line inputs. Easy line/mic/phantom power options are available on mic inputs 1 to 4. A top priority emergency input is also provided which can be connected to an alert/evac tone generator.

Music playback is easily managed via the front panel track selection and play/pause controls. Music files can be stored and played back from SD card, USB memory stick or Bluetooth enabled device.

Note: Remote control requires 1 x CR2032 coin cell battery.



Features:

  • Mixer amplifier with in-built SD/USB/FM tuner/Bluetooth music source
  • 85% efficient class-D power performance
  • Low power consumption & heat generation
  • Compact 1RU case
  • Bass & treble control
  • Front panel mic input
  • Protection circuitry
  • LED indicators for signal, peak, protection and power
  • Selectable 100V line/4-16Ω output
  • Mic/Line/Phantom Power options on Mic 1-4
  • 24V DC battery backup power input
  • Emergency priority input (Mic 1)
  • Adjustable VOX muting





Specifications:



General:

Rated Power: 240W

Output Level: 4-16Ω/100V

Indicator: Power indicator

Short-Circuit Mode: Short Circuit, no voltage

Cooling Mode: Air cooling

Protection Mode: Overheat/Short circuit

Operation Temperature: +5°C~+40°C

Storage Temperature: -20°C~+70°C

Relative Humidity: <95% (No condensation)

Voltage: ~240V 50Hz

Power Consumption: 370W

Weight: 3.9kg

Dimensions: 484 x 295 x 44 mm



Input Sensitivity:

Mic: 2mV±1mV

Line: 100mV±20mV

AUX: 350mV±20mV

EMC: 775mV±40mV

Pre-Output: 1V±50mV/100Ω



Mic Tones:

Low Frequency: ±10dB at 100Hz

High Frequency: ±10dB at 10KHz



Music Tones:

Low Frequency: ±10dB at 100Hz

High Frequency: ±10dB at 100Hz



Frequency Response:

Audio Out: 20Hz ~ 20KHz (±3dB)

Mic: 200Hz ~ 16KHz (±3dB)



SNR:

Mic: =65dB

Music: =70dB



THD:

THD+N = 0.1%
