Similar in functionality to the recently released A 4377/A4387 amplifiers with the addition of four 100V line output zones.

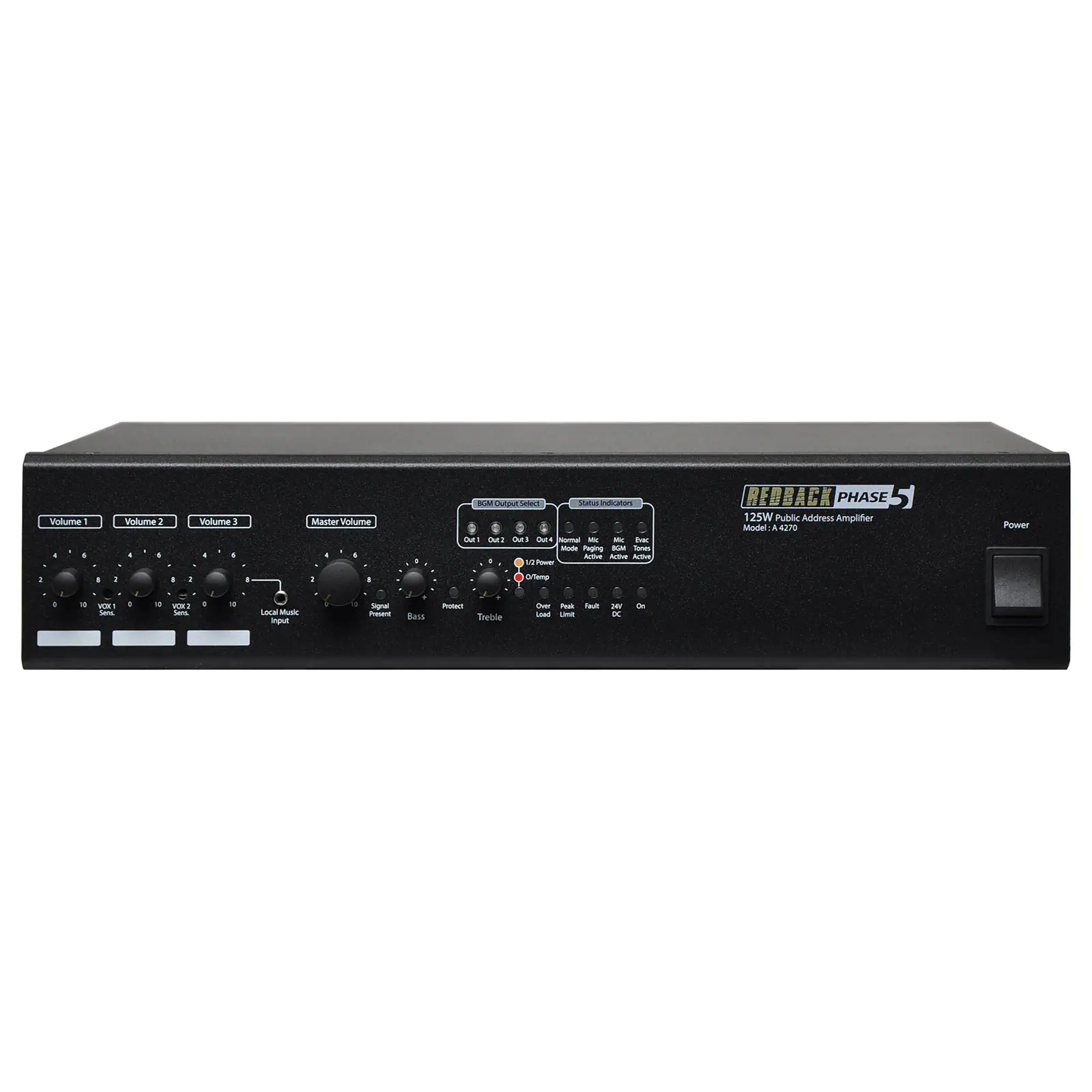

Public Address (PA) Mixer Amplifier 125W 100V 4 Zone

Name: Public Address (PA) Mixer Amplifier 125W 100V 4 Zone
SKU: A4270
Price: 1268.18 AUD
Availability: InStock

by: Redback

SKU: A4270

Similar in functionality to our popular A 4377A/A4387A amplifiers, with the addition of four 100V line output zones.

$1,268.18

All Prices Shown are (ex GST)

Bulk Pricing

ea	$1,268.18
2+	$1,177.27

i h

Overview
Details
Warranty
Downloads

Overview

This Redback 4 Zone 125 Watt 100V Public Address Mixer Amplifier is similar in functionality to our A 4377A amplifier, with the addition of four 100V line output zones. During normal use, you are able to select via the front panel switches, any zone on or off to control BGM programming. Remote paging to each zone is made possible by connecting the A 4660 paging console to the amplifier via Cat6 cable (2 consoles @ max 300m). This allows for paging to selected zones or all call, muting BGM to all zones. At the completion of the announcement, music will be restored to previously selected zones. BGM can also be selected on or off to all zones remotely from the paging console. When using the paging console, these microphones assume priority between input 1 and input 2 on the amplifier. If two consoles are connected, they operate on a first in, first served basis, activating a system busy indicator on the inoperative console.

Features:

Multi-stage thermally cued fan cooling
2U 19” rack mount (with optional A 4376)
Tape record out terminals
Provision for connection to Redback A4660 touchscreen paging console
MP3 based Alert/Evac tones with MP3 voice over message for emergency tones (built in)
3 mic input and 4 auxiliary inputs
Phantom powering available on all inputs
Adjustable vox muting on inputs 1 & 2.
Bass and treble tone controls
Terminals for 100V line output
240V AC or 24V DC power operation
Thermal & fuse overload protection
Built in short circuit protection
Australian designed & assembled

Specifications:

Power output: 125W

Distortion: <0.5% @ 1kHz

Output line: 100V

Frequency response: 50Hz - 12kHz, -3dB

Line inputs: 300mV

Mic line sensitivity: 3mV balanced

Mic input: >75dB below rated output

Line inputs: >81dB below rated output

Speaker connection: Pluggable terminals

Power connection: IEC or 24VDC pluggable terminal

Audio inputs: 3 pin XLR, stereo RCA, 3.5mm jack

Controls: Volume (3), Bass, Treble, Master, Zone Selection (4)

Bass adjustment: ±10dB @ 100hz

Treble adjustment: ±10dB @ 10kHz

Indicators: Power, 24VDC, Fault, Peak Limit, Over Load, Paging Active

Fuse protection: 7.5A AC, 10A DC

Power: 240V AC or 24V DC (nominal)

Dimensions: 483 x 270 x 88mm

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Details

Products specifications

Warranty	10 Years
Professional Audio
Type	Mixer PA Amplifiers
Output	Stereo Amplifiers, 100 Volt Line Amplifiers
