4 x 120W Class D Public Address Amplifier

by: Redback
SKU: A4310
Excellent for multizone public address paging and background music systems! Engineered to meet the growing demands of venues such as RSL clubs, taverns, hotels, conference & function centres enabling individual program sources to play to different rooms/zones
Save $544.55 $1,727.27 $2,271.82

All Prices Shown are (ex GST)
Bulk Pricing
ea
$1,727.27 $2,271.82
2+
$1,727.27 $2,044.55
i h

Overview

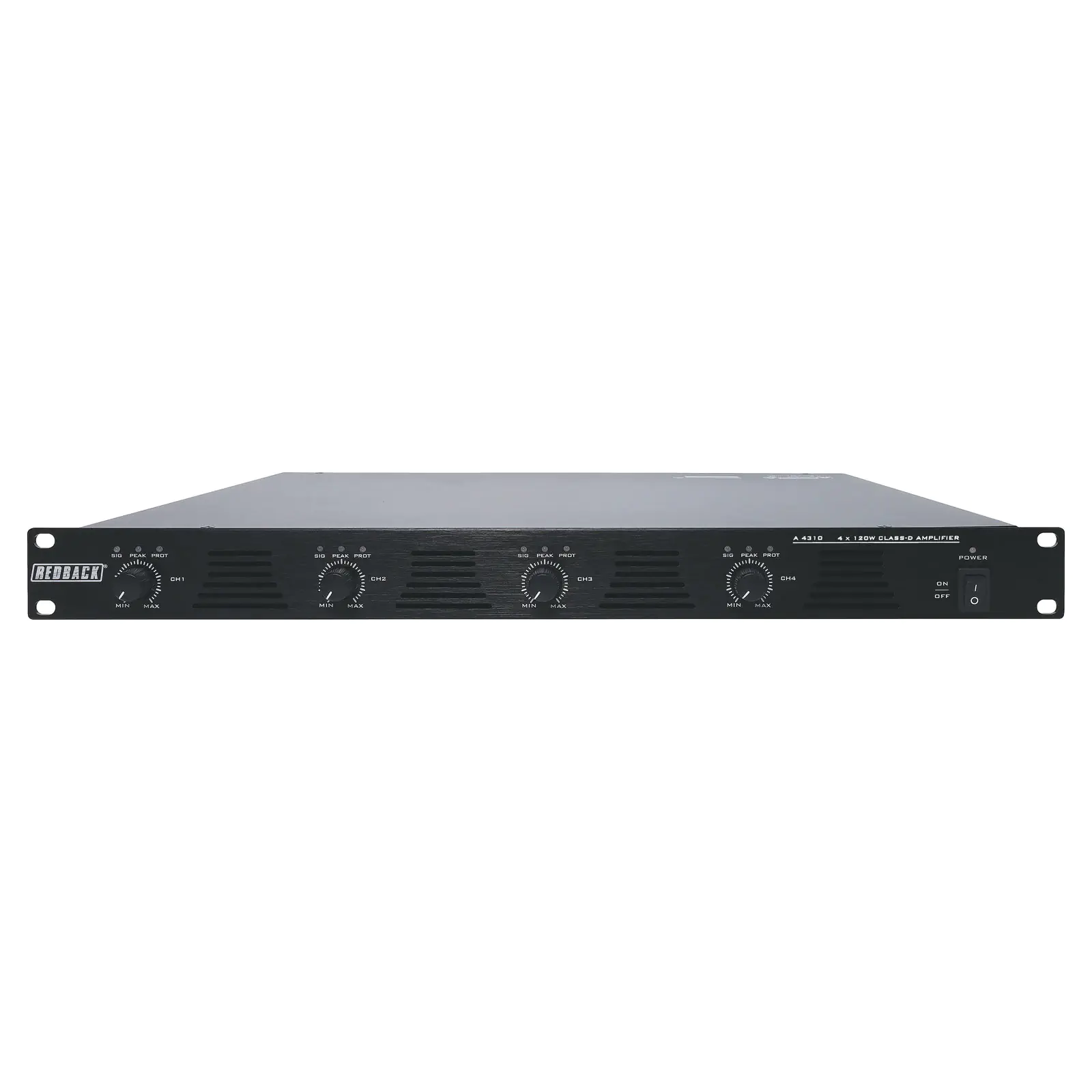

This compact four channel Class-D design amplifier provides four independent 120W power amplifiers built into a single 1RU 19” rack mount chassis. It is ideal for use in environments where four individual program sources are required in different building zones. Ideal for use in hotels, function centres, shopping malls and commercial offices.

The unique feature of the Class-D design is the significant reduction in power consumption and heat generation due to the switchmode power supply design employed. They utilise active power factor correction (APFC) switch mode power technology allowing an efficiency rating of 85%. The result of which is a much cooler running amplifier (<55°C), offering a long life span and significant power savings for a reduced environmental impact.

Each amplifier is provided with screw terminal connections for balanced input from the source and 100V line output. Each channel amplifier is provided with front panel level controls and indicators.

All amplifiers are also protected against short circuit, high temperature and overload conditions. Importantly these protections are dedicated for each channel, so that if a fault occurs on one amplifier, the others are unaffected



Features:

  • 85% efficient class-D power performance.
  • Low power consumption & heat generation.
  • Compact 1RU case housing four individual amplifiers.
  • Individual dedicated protection circuitry.
  • Individual cooling systems for each channel.
  • LED indicators for signal, peak, protection and power.
  • Constant 100V floating output per channel (ie no reference to earth).
  • Compatible with Altronics line monitoring equipment.
  • 24V DC battery backup power.
  • 240V AC operation.
  • Remote control on/off switching function.
  • In-built bandpass filter for 80Hz and 16KHz signals.
  • Built-in short circuit, overload, high temperature protection.
  • 2 year warranty





Specifications:



Electrical:

Power output: 4 x 120W RMS

Speaker output: 100V constant voltage

Input sensitivity: ±385mV/20KΩ balanced

Frequency response: 80Hz - 18KHz (+1dB,-3dB)

Signal to noise ratio: =85dB

Total harmonic distortion: =0.5% at 1KHz (1/3 rated power)

Power consumption: 4 x 144W

Power supply: 240V AC (50Hz) or 24V DC backup

Protection: High temp, overload & short circuit



Controls:

Controls: Volume control & status monitor

Indicators: Signal, peak, protection & power



Mechanical:

Dimensions: 484W x 390D x 44Hmm

Weight: 8.5kg

Details

Products specifications

Warranty 2 Years
Professional Audio
Type Power PA Amplifiers
Output 100 Volt Line Amplifiers
