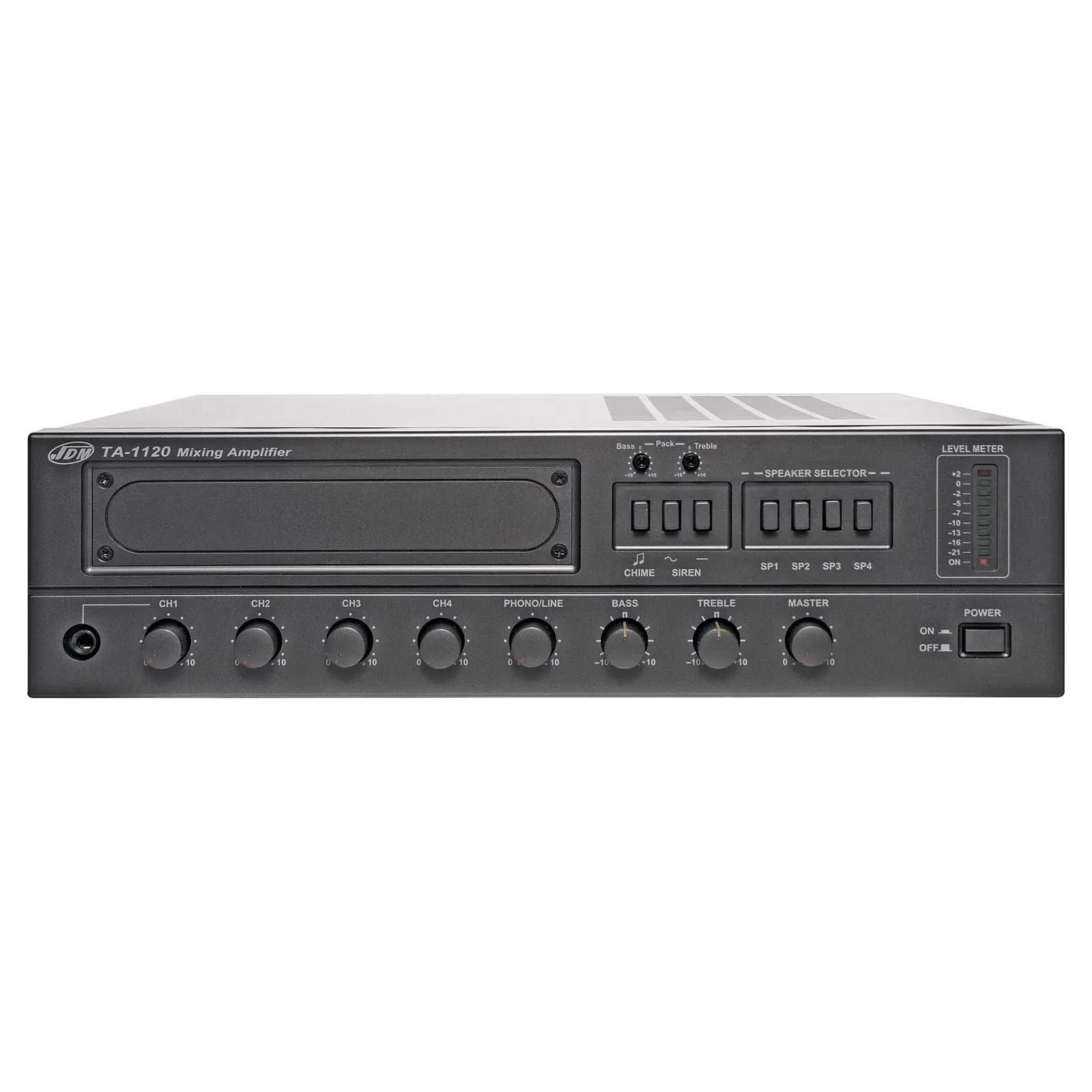

PA Mixer Amplifier 4 Zone 120W

by: JDM Audio
SKU: A4322
An economical solution for smaller installations including offices, workshops, smaller shopping arcades, schools etc.
$844.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $844.55
2+ $762.73
i h

Overview

An economical solution for smaller installations including offices, workshops, smaller shopping arcades, schools etc. Supplied with one front panel mic input and three rear mounted mic inputs which can also be configured as line inputs. Inputs two and three are 3 pin XLR whilst input four consists of either a 3 pin XLR or RCA sockets. Input five is suitable for either a line or phono input. A preamp output socket is provided enabling connection to extra slave amplifiers. Four speaker zones may be selected on or off via the front panel switches. Output level is monitored via the LED VU meter. Provision is included to fit one of the following optional modules: A4344A Tuner or A4346 CD/MP3 player. Operation is from 240V mains with provision for 24VDC battery operation in the event of mains failure. Telephone paging is also available along with a chime and siren tone generator.



Features:

  • 5 inputs
  • 4 output zones
  • 70V or 100V output
  • 4Ω or 8Ω output
  • 24V DC operation
  • Over temperature, over current and short circuit protection
  • LED VU meter
  • 2 year warranty
  • Telephone paging input
  • Chime and siren





Specifications:

Power: 120 watts RMS

Distortion: < 1% @ 1kHz

Signal to Noise Ratio Line: >70dB Mic: >60dB

Frequency Response 80Hz - 15kHz, ±3dB

Mic input sensitivity: 3mV balanced

Line inputs sensitivity: 300mV

Telephone input 245mV

Bass: ±10dB @ 100Hz

Treble: ±10dB @ 10kHz

Power supply: 240V AC or 24V DC

Dimensions: ≈420W x 320D x 110H mm

Weight: 12.5kg
