Designed for applications requiring up to six microphone inputs, without compromising output power and overall performance. Each model features inputs which can be configured for either microphone or line level operation.

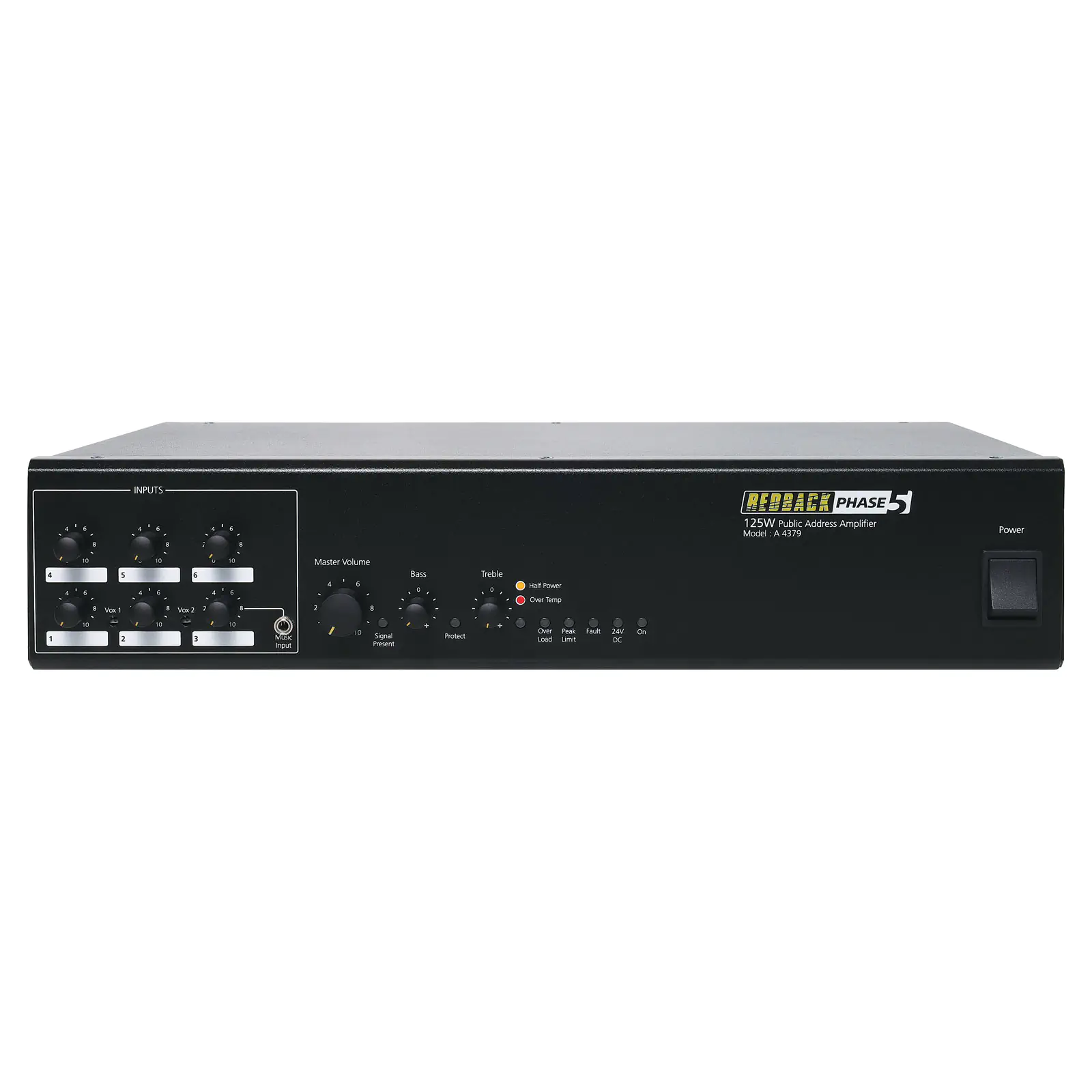

Public Address Amplifier (PA) 125W 6 Input

Name: Public Address Amplifier (PA) 125W 6 Input
SKU: A4379
Price: 1136.36 AUD
Availability: InStock

SKU: A4379

$1,136.36

All Prices Shown are (ex GST)

Bulk Pricing

ea	$1,136.36
2+	$1,045.45

i h

Overview
Details
Warranty
Downloads

Overview

Designed for applications requiring up to six microphone inputs, without compromising output power and overall performance. Each model features inputs which can be configured for either microphone or line level operation. Bass/treble controls, phantom powering and adjustable input sensitivity enable unparalleled flexibility for a wide scope of applications such as factories, workshops, mine sites, sports clubs and office buildings.

Features:

6 Balanced microphone inputs / 6 Aux inputs / 1 Music input
Robust design incorporating latest Mosfet technology
Very Low noise and distortion
100V standard with optional 70V and 4-16Ω outputs
240V AC or 24V DC operation
VOX muting on inputs 1 and 2 (Switch selectable internally)
Adjustable VOX level sensitivities
Bass and Treble controls
Tape Output
Phantom power on microphone inputs (DIP switch selectable internally)
Multi stage thermally cued fan cooling
Output Peak Limited
Thermal Overload protected
Signal Presence Indicator
Half power mode when overdriven
Fault Indicators
24V DC Power Status Indicator
Optional Alert/Evac module with voice over message for emergency tones (A 4573)
Optional remote volume (With A 4373 Digital volume control module fitted and external A 2280B wall plate)
Rack Mountable (suits 19 inch racks) with optional A 4376 rack ears

Specifications:

Power Outputs:

Power: 125 watts RMS

Distortion: < 0.5%, @ 1kHz

Output line: 100V

Frequency Response:

Mic inputs : 50Hz - 12kHz, -3dB

Line inputs: 50Hz - 15kHz, -3dB

Mic Sensitivity:

Mic inputs: 3mV

Line inputs: 1V

Music input: 500mV

Signal To Noise Ratio:

Mic inputs: > 75dB below rated output

Line Output:

600O balanced, 0dB , 3 Pin XLR

Output Connectors:

Speakers: Screw terminals

Input Connectors:

Inputs: 3 pin XLR balanced or 2 x RCA

24V DC power: Screw terminals

240V AC power: IEC power connector

Muting:

PTT via microphone switch contacts and VOX muting (inputs 1-2)

Controls:

Mic/Line/Music inputs: Volume

Power: On/off switch

Indicators: Power, signal present, output peak limiting, over-temp , overload protect, half power, 24V DC

General:

Power Supply: 240V AC or 24V DC

Fuse Protection: 125W - 5A AC ,10A DC

Dimensions: ˜483W x 300D x 88H

Weight: ˜ 11kg

Current Draw: Min ˜ 300 mA, Max ˜ 9.6A

Details

Products specifications

Warranty	10 Years
Professional Audio
Output	100 Volt Line Amplifiers
Type	Mixer PA Amplifiers

Warranty

WARRANTY

We offer 10 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Output Wiring Conversion

PDF

Instructions

PDF
