Australian Made

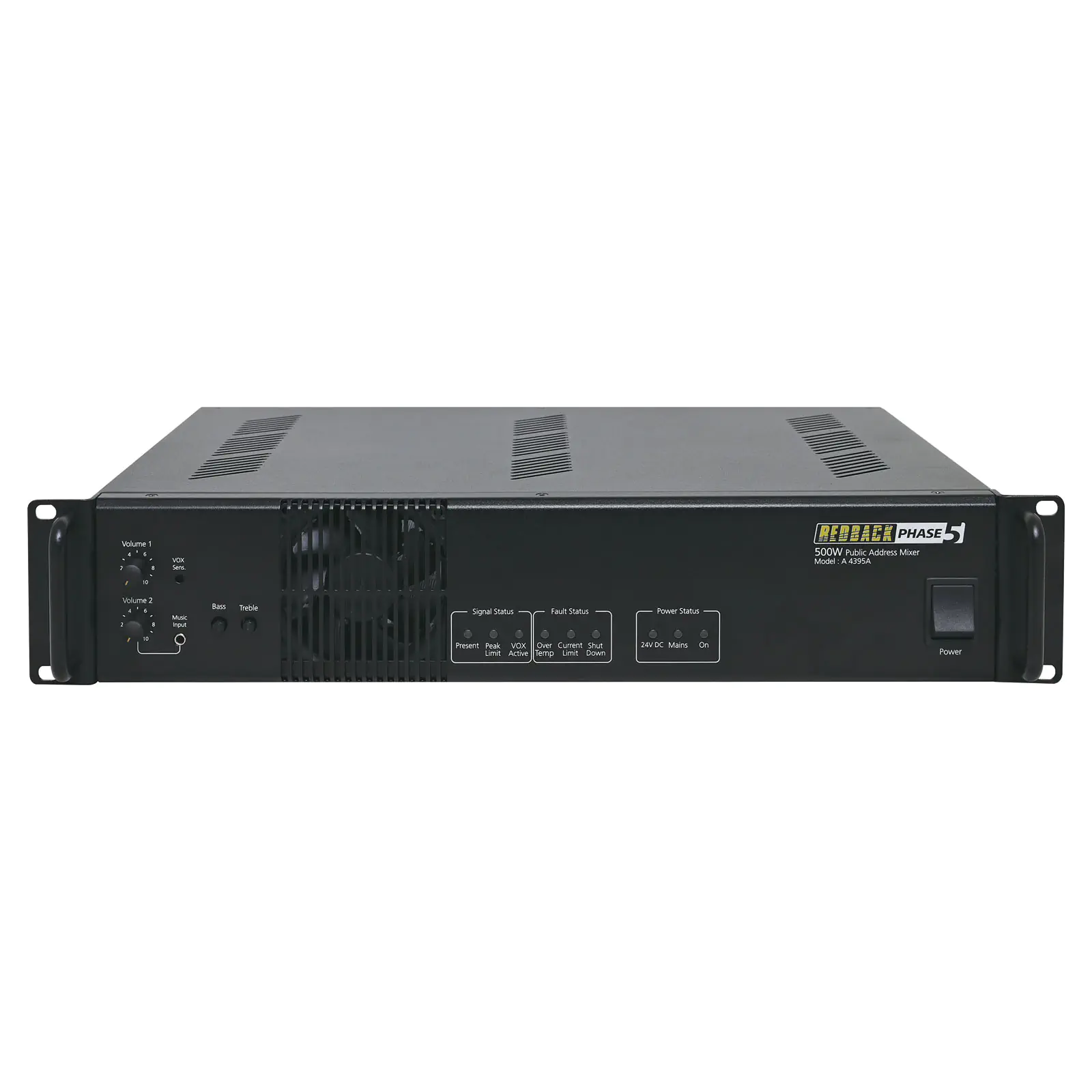

500W Mixer Amplifier

by: Redback
SKU: A4395A
The Redback A 4395 is a 500 Watt Mixer amplifier for installations requiring a high power zone amplifier. Ideally suited for use in shopping centres, pedestrian precincts, public transport facilities and convention centres.
$1,726.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $1,726.36
2+ $1,553.64
i h

Overview

The Redback A 4395A is a 500 Watt Mixer amplifier for installations requiring a high power zone amplifier. Ideally suited for use in shopping centres, pedestrian precincts, public transport facilities and convention centres.

The amplifier has two audio inputs, with input 1 either a balanced XLR Mic input or dual RCA line input, and input 2 a dual RCA. There is also a music input on the front of the amplifier for connection of portable devices. This input when connected, over-rides the rear input 2 audio source and is adjusted via the volume 2 level control.

A VOX circuit with front panel sensitivity adjustment, allows input 1 to mute input 2. Phantom power (15 volts) is available at the 3 pin Mic XLR on input 1, and both RCA inputs 1 and 2 have adjustable input sensitives. The amplifier has a host of protection circuitry including over current, over voltage and short circuit protection.



Features:

  • Robust design incorporating latest Mosfet technology
  • Very Low noise and distortion
  • 70V, 100V and 4-16Ω outputs
  • 240V AC or 24V DC operation
  • 24V DC @ 1 Amp output for external devices
  • 300mA battery trickle charge
  • Adjustable input level sensitivities
  • Bass and Treble controls
  • Phantom power on microphone input (XLR Input 1)
  • Multi stage thermally cued fan cooling
  • Output Peak Limited
  • Thermal Overload protected
  • Signal Presence Indicators
  • Fault Indicators
  • Power Status Indicators
  • Rack Mountable (suits 19 inch racks)





Specifications:



Power outputs:

A 4395A:  500 watts RMS

Distortion:  < 0.5%, @ 1kHz

Output line:  70V, 100V or 4 - 16Ω



Frequency response:

Mic input:  50Hz - 12kHz, -3dB

Line inputs:  50Hz - 15kHz, -3dB



Sensitivity:

Mic input: 2mV

Line inputs: 100mV or 1V



Signal to noise ratio:

Mic inputs:  > 75dB below rated output

Line inputs:  > 81dB below rated output



Output connectors:

Speakers:  Screw terminals



Input connectors:

Inputs:  3 pin XLR balanced or 2 x RCA

24V DC power:  Screw terminals

240V AC power: IEC power connector



Controls:

Mic inputs:  Volume

Line inputs:  Volume

Bass:  ±10dB @ 100Hz

Treble:  ±10dB @ 10kHz

Power:  On/off switch

Indicators:  Power, signal present, output peak limiting, overtemp, current limit, shutdown, VOX active, 24V DC, Mains

Power Supply:  240V AC or 24V DC



Fuse protection:

A 4395A:  10A AC , 20A DC



Dimensions:

483W x 410D x 88H





10 year warranty

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

australian made

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Details

Products specifications

Warranty 10 Years
Professional Audio
Type Mixer PA Amplifiers
Output 100 Volt Line Amplifiers
