Australian Made

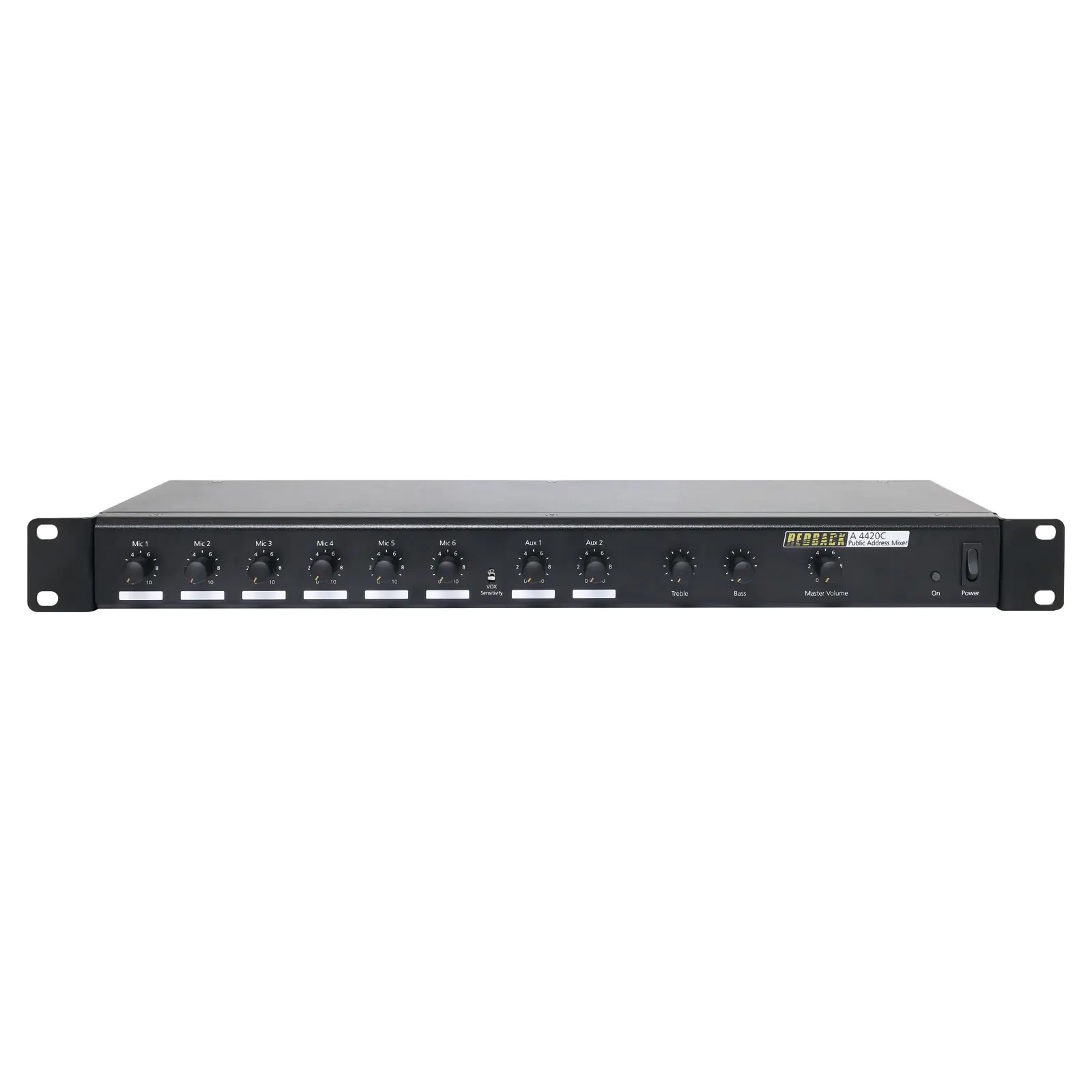

8 Channel Public Address (PA) Mixer

by: Redback
SKU: A4420C
This 8 channel mixer incorporates a variety of practical features ensuring suitability for a wide scope of PA and sound reinforcement applications.
$590.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $590.91
2+ $545.45
i h

Overview

This 8 channel mixer incorporates a variety of practical features ensuring suitability for a wide scope of PA and sound reinforcement applications. Features include: selectable phantom power for electret/condenser type microphones on each input, optional VOX muting of line programs, bass and treble controls (microphone channels can be routed through tone controls or bypassed as desired), individual level controls together with master level control. A 600Ω/0dBm XLR balanced line output is provided, enabling connection to a maximum of 16 power amplifiers.



Features:

  • 6 microphone and 2 line inputs
  • All mic inputs are 3 pin XLR balanced
  • Line inputs via twin RCA sockets
  • Separate bass and treble tone controls
  • Individual input and master volume controls
  • Optional VOX muting of line inputs
  • Optional phantom power for each mic input
  • Microphone bass cut internally selectable
  • Mic inputs routed via tone controls or bypassed
  • 24VDC input





Specifications:



Auxiliary:

No. of Channels: 2

Sensitivity (master full): 260mV

Signal to Noise Ratio: better than 76dB

Frequency Response (±3dB): 60Hz - 20kHz

Input Impedance: 100k Ohm

Muting Level: -50dB

Mode: Unbalanced

Connector Type: Stereo RCA



Tone Control:

Bass Control: ±9dB at 80Hz

Treble Control: ±10dB at 10kHz



Bass Cut Switch on Microphone:

Switch “ON”: -6dB/Octave from 150Hz



Phantom Power:

Voltage: 12V

Output Impedance: 3.4k Ohm



Microphone:

No. of Channels: 6

Sensitivity (master full): 1.2mV

Signal to Noise Ratio: better than 71dB

Frequency Response (±3dB): 60Hz to 20kHz

Input Impedance: 600 Ohm

Mic Impedance: 200 - 600 Ohm nominal

Mode: Balanced

Connector Type: 3 Pin XLR Female



Output:

Signal to Noise Ratio :

(all controls mid way) -85dB, ref 0dBm

(all controls maximum) -58dB, ref 0dBm

Impedance: 600 Ohms

Distortion: Less than 0.06%

Max Output Level: +19dBm

Mode: Balanced

Connector Type: 3 Pin XLR Male

*Specifications subject to change without notice.





10 year warranty

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

australian made

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.
