Australian Made

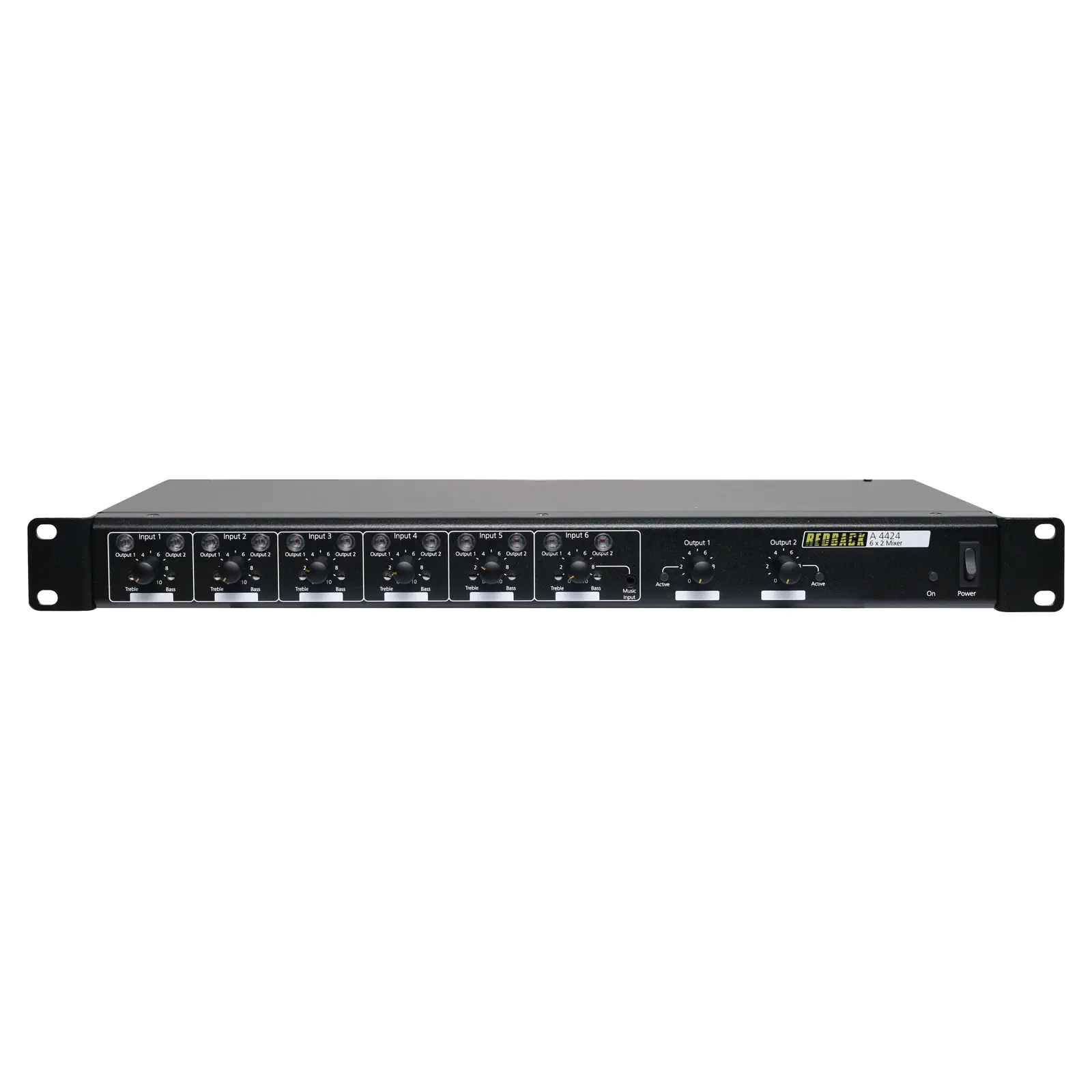

6 Input, 2 Output Public Address (PA) Mixer

by: Redback
SKU: A4424
New to the Redback mixer stable, this model incorporates six inputs which can be routed to 1 of 2 outputs or both as the installation requires. Inputs can be configured for either RCA line level signals or 3 pin XLR balanced mic signals.
$795.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $795.45
2+ $745.45
i h

Overview

This Redback PA mixer incorporates six inputs which can be routed to 1 of 2 outputs or both as the installation requires. Inputs can be configured for either RCA line level signals or 3 pin XLR balanced mic signals. Outputs are via RCA and 3 pin XLR balanced 1V signals. Front panel controls including volume, treble and bass are included for each input. Independent master volume controls are provided for each output. Pushbutton  switches are provided to enable inputs to be switched to either output 1, output 2 or both outputs 1 and 2. DIP switches allow for each input sensitivity to be set to 100mV and phantom power on/off, and choice of RCA or XLR connection for that chosen input. All housed in a low profile 1RU 19” rack mountable case.



Features:

  • Six mic / line input channels.
  • Two outputs via XLR/RCA 1V balanced.
  • Level, bass and treble control on all inputs.
  • Adjustable input sensitivity.
  • Phantom power selection on each input.
  • Route signals to each output or both outputs.
  • Includes power supply
  • 1RU 19” rack mount case.
  • Australian designed & assembled





Specifications:



Audio:

Output level: 0dBm

Distortion: 0.01%

Frequency response: 20Hz - 20kHz

Mic input sensitivity: 3mV balanced

Line input sensitivity: 100mV/1V



Connection:

Output: RCA Line out (mono) or 3 pin XLR balanced

Input - Microphone: 3 pin XLR

Input - Aux: Dual RCA, 3.5mm stereo jack front panel



Power:

24V DC power: Screw terminals, 2.1mm DC Jack

Power supply: 24V DC



Controls & Indicators:

Power: Standby Switch

Bass: ±10dB @ 100Hz

Treble: ±10dB @ 10kHz

Output 1 and 2: Volume

Indicators: Power on, Signal Present



Size & Weight:

Dimensions: 482W x 175D x 44H

Weight: 2.1 kg














10 year warranty

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

australian made

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.
