This fully revised mixer model offers improved noise circuitry and features six input channels which are user selectable for either balanced mic or line as well as two dedicated line level RCA inputs and a 3.5mm audio jack for portable devices. In addition a muting trigger and input for paging console has been added, providing added flexibility for installations requiring paging communications.

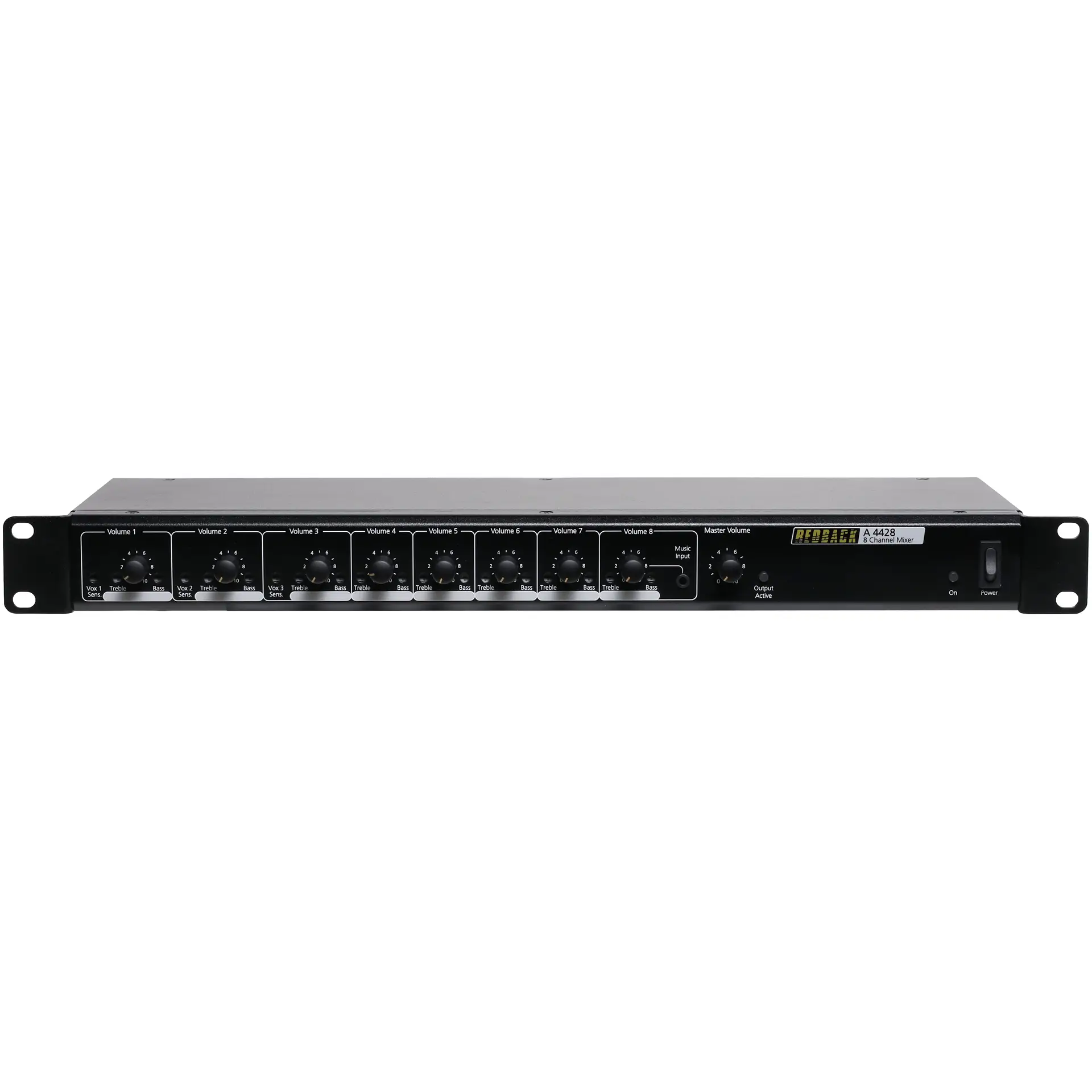

8 Channel Public Address (PA) Mixer

by: Redback

SKU: A4428

Overview
Details
Warranty
Downloads

Overview

This fully revised mixer model offers improved noise circuitry and features six input channels which are user selectable for either balanced mic or line as well as two dedicated line level RCA inputs and a 3.5mm audio jack for portable devices. In addition a muting trigger and input for paging console has been added, providing added flexibility for installations requiring paging communications. The unit has six levels of VOX priority on inputs 1-6 with adjustable VOX sensitivities on each input, and a 24V DC output (limited to 120mA current draw) which becomes live when any triggers are activated or VOX/PTT circuitry becomes active.

Features:

Eight input channels, including six dedicated XLR inputs
Individual level, bass and treble control on all inputs
Six levels of VOX priority
Adjustable VOX sensitivity
3.5mm music input
Adjustable input sensitivity on line inputs
24V DC battery back up terminals
24V DC output
Output active indicator
Connects to a suite of Redback UTP connection boxes
10 Year Warranty
Australian Designed and Manufactured

Specifications

Audio
Output level: 0dBm
Distortion: 0.01%
Frequency response:: 20Hz - 20kHz
Sensitivity: 3mV balanced (mic), 100mV-1V (line)

Outputs
Balanced Out: 3 pin XLR balanced
Line Out: 2 x RCA (mono)

Inputs
Mic Inputs: 3 pin XLR
Line Inputs: 2 x RCA
Music Input: 3.5mm stereo jack front panel
24V DC power: Screw terminals
24V DC Power: 2.1mm DC Jack
Mute Trigger: Screw Terminals
UTP Input: RJ45 8P8C

Controls
Power: Rocker Switch
Bass: ±10dB @ 100Hz
Treble: ±10dB @ 10kHz
Master: Volume
Inputs 1-8: Volume

Indicators

Power on, Output Active

Current draw:
Idle current draw: 120mA
Max current draw: 180mA

General

Power supply: 24V DC
Dimensions: ≈482W x 175D x 44H
Weight: ≈2.1 kg
Colour: Black

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.
