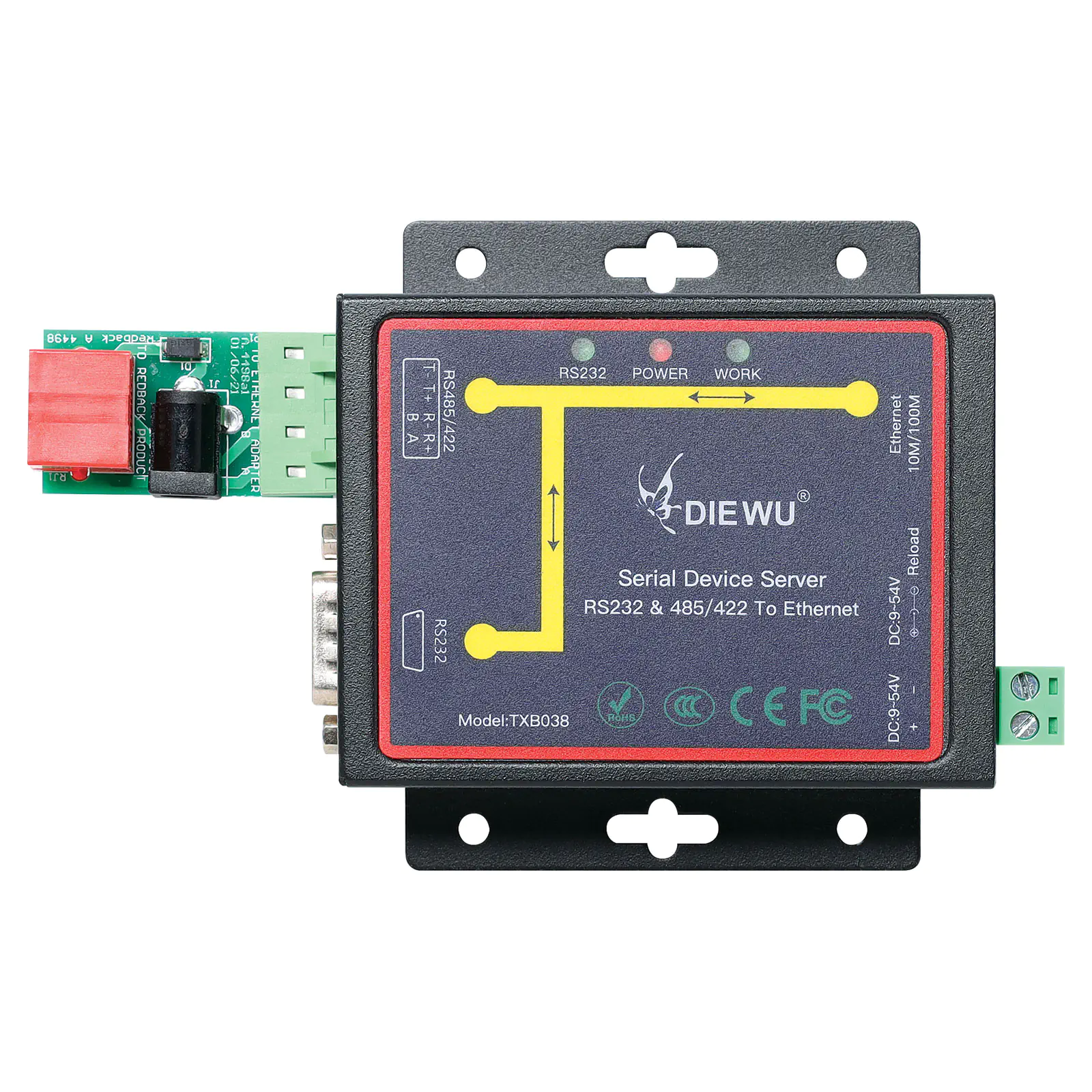

Serial To Ethernet Converter Network Connection Pack

SKU: A4498
This serial to ethernet converter allows you to easily send serial RS232/422/485 over ethernet for controlling equipment over longer distances than traditional serial cables.
$104.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $104.55
4+ $90.86
i h

Overview

This pack provides the components required to connect compatible Redback® products to an Ethernet network. Designated Redback® products have configuration software allowing remote setup & configuration via the Serial-to-Ethernet Converter (Altronics D4231) supplied in this pack.

Compatible Products:
A 4500C 24 Hour 7 Day Timer With Evac Tone Generator
A 4505C 7 Day Timer With Lockdown & Fire Alarm Control
A 4510B Yearly Programmable School Timer

Package Contents:
1x Serial-to-Ethernet Converter (D4231)
1x Proprietary Redback Adaptor Board
1x 1m CAT6 Patch Lead

Features

  • Supports auto-MDI/MDIX
  • Supports TCP/IP server, TCP/IP Client & UDP
  • Baud rate 300bps-230400bps
  • Supports Modbus RTU
  • Reload function
  • RS485 support full duplex and half duplex

Specifications

Chipset: IP210

Ports: 1 port 10/100M Auto MDI-MDIX RJ45,1port RS232, 1port RS485/422

Standards: IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3az

Network: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5 UTP

Data rate: 10/100M

Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps

LED Indicators: Link/Act, Power, System, TX/RX

Baud rate: 110bps~256000bps

Operation modes: TCP Server, TCP Client, UDP

Dimensions: 86W x 84H x 25Dmm

Power Input: 9V-54V DC

Power Consumption: Max 1.8W

Operating Temperature: -10°C to 55°C

Relative Humidity: 10%-90% (non-condensing)

Device Defaults

ID: admin

Password: system

IP address: 192.168.2.1

Operation mode: TCP server

Transmission Mode: RS232

Baud rate: 57600bps

UART parameters: 57600, 8, N, 1

Local port TCP 23, UDP 21
