Australian Made

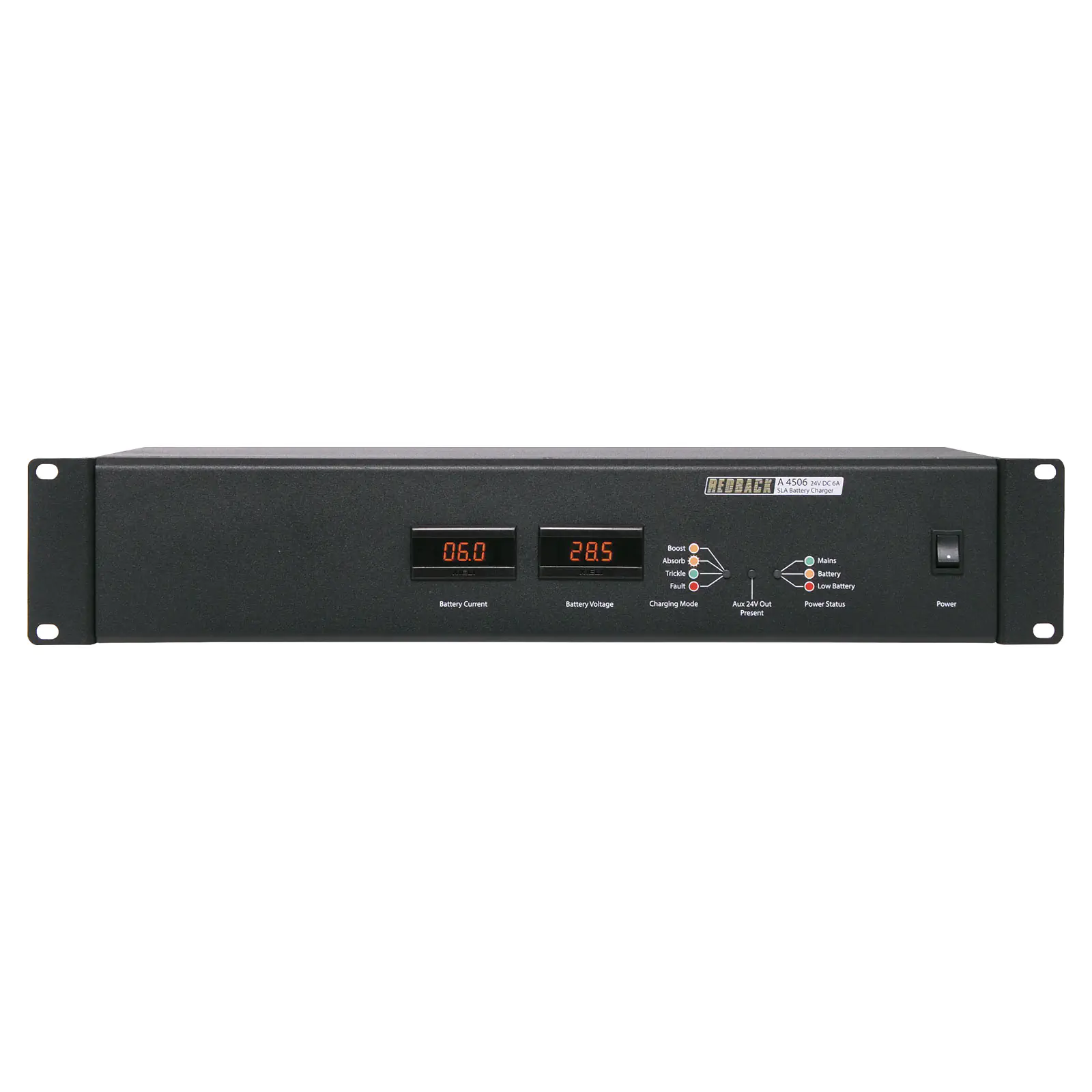

6A 24V Battery Charger Sealed Lead Acid (SLA)

by: Redback
SKU: A4506
Ideal for PA systems & other applications requiring battery backup. This all new model incorporates a highly efficient, intelligent, multi stage switchmode battery charger ensuring optimum battery charging and performance.
$831.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $831.82
2+ $786.36
i h

Overview

Ideal for PA systems & other applications requiring battery backup. This all new model incorporates a highly efficient, intelligent, multi stage switchmode battery charger ensuring optimum battery charging and performance.

An auxiliary 24V DC 1 amp power supply is provided to run ancillary devices without interfering with the charging cycle. Connected loads to this circuit automatically switch to the battery when mains fails. The circuit includes a host of protection to protect both the charger and batteries. These include reverse polarity connection, low battery disconnect feature and battery isolator/circuit breaker. Large heavy duty binding posts are included for battery and load terminals. Individual panel meters are provided for battery voltage and charge current. In normal operation, the panel meters indicate battery charge current and battery voltage. When mains fails, the meters show the load current being drawn (indicated by a minus symbol) and actual battery voltage.



Features:

  • 2RU 19" rack mount
  • Short circuit protection
  • Electronic reverse polarity protection
  • Multi stage charging
  • Automatic boost and float voltages
  • Precision control of boost and float voltage settings
  • Digital battery voltage and current meters
  • Charging indicator
  • End of charge (trickle) indicator
  • Suits sealed,vented lead acid and gel batteries
  • Low battery cut off
  • 2 switched 50A outputs
  • Australian designed & manufactured





Specifications:

Input voltage: 240V AC 50Hz

Boost voltage: 29.4V DC

Float voltage: 27.6V DC

Typical charge times: 24Ah 6Hrs, 40Ah 10Hrs

AC Load (max): 1A

Dimensions: 483W x 330D x 88H mm

Weight: 8kg






100% developed, designed & assembled in Australia.
Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support. Read more about our Australian Made products





10 year warranty

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

australian made

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Details

Products specifications

Warranty 2 Years

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
.pdf
Instructions
PDF
