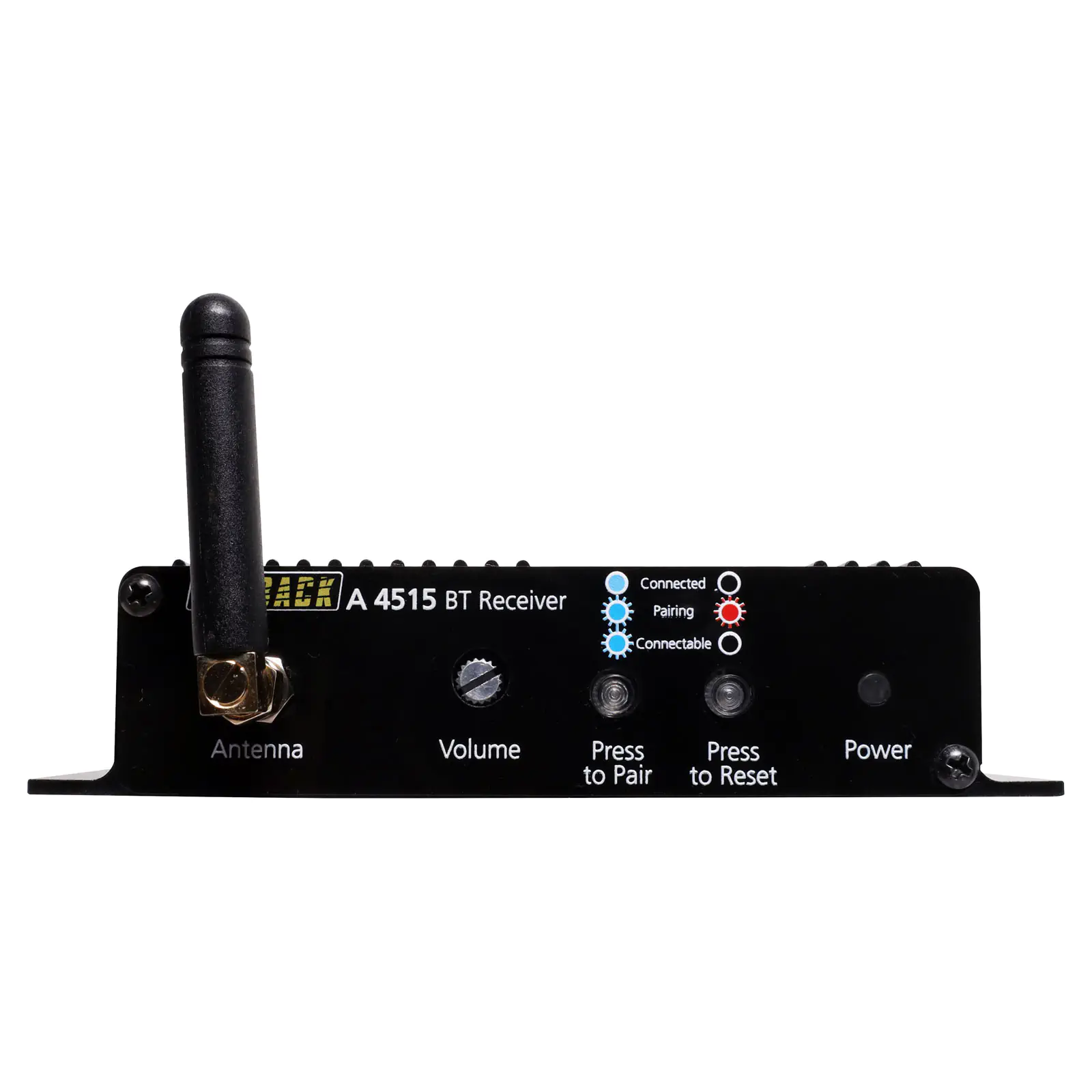

BT 5.0 Wireless Audio Receiver

by: Redback
SKU: A4515
This commercial grade BT 5.0 receiver offers the ability to interface Bluetooth audio devices into public address systems.
$318.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $318.18
2+ $290.91
4+ $272.73
i h

Overview

This commercial grade BT wireless 5.0 audio receiver offers the ability to interface Bluetooth audio devices into public address systems. Audio output is via standard stereo RCA sockets or balanced audio over UTP RJ45 cabling for connection to compatible Redback products. Each receiver can be custom named for use in situations where multiple receivers are used.

A closing set of contacts are available for triggering pairing mode, which can be activated by the A 4467 wall plate or a switch of your choosing. A set of screw terminals are provided for connection of an external pairing LED.

24V DC plugpack is supplied.



Note: if the transmitter disconnects or goes out of range, please reconnect the transmitter/your device manually



connection diagram



Features:

  • Custom naming for each receiver used in a system.
  • UTP output connection for extending signal to system amplifiers using Redback UTP solutions receivers.
  • Pairing trigger contacts for use with A4467 remote wallplate or other external switch.
  • Adjustable level control.
  • External pairing LED output.
  • RCA line output for local connection to amplifier.
  • 24V DC powered (power supply included).
  • Australian designed and manufactured.



Connection Matrix:

connection matrix





Specifications:

BT wireless version: V5.0

Audio Output: Stereo RCA line level or RJ45 UTP.

Contacts: Remote pairing, external pairing LED indicator (120mA output).

Power: 24V DC (2.1mm DC jack).

Dimensions: 25H x 105W x 81Dmm





Details

Products specifications

Warranty 10 Years
Audio Visual
Type Bluetooth Extenders

Warranty

WARRANTY

We offer 10 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
Accessories
A handy remote pairing plate to suit the Redback A4515/20 BT 5.0 receiver units. Connection is via any standard 4 core cabling back to the main receiver unit. This allows users to remote activate the pairing mode on the Redback A4515/20. Switch is fitted to a standard size Australian single gang electrical wallplate.
A4467

Remote BT Wireless Pairing Wallplate for A4515/20

A handy remote pairing plate to suit the Redback A4515/20 BT 5.0 receiver units. Connection is via any standard 4 core cabling back to the main receiver unit. This allows users to remote activate the pairing mode on the Redback A4515/20. Switch is fitted to a standard size Australian single gang electrical wallplate.
