NEW

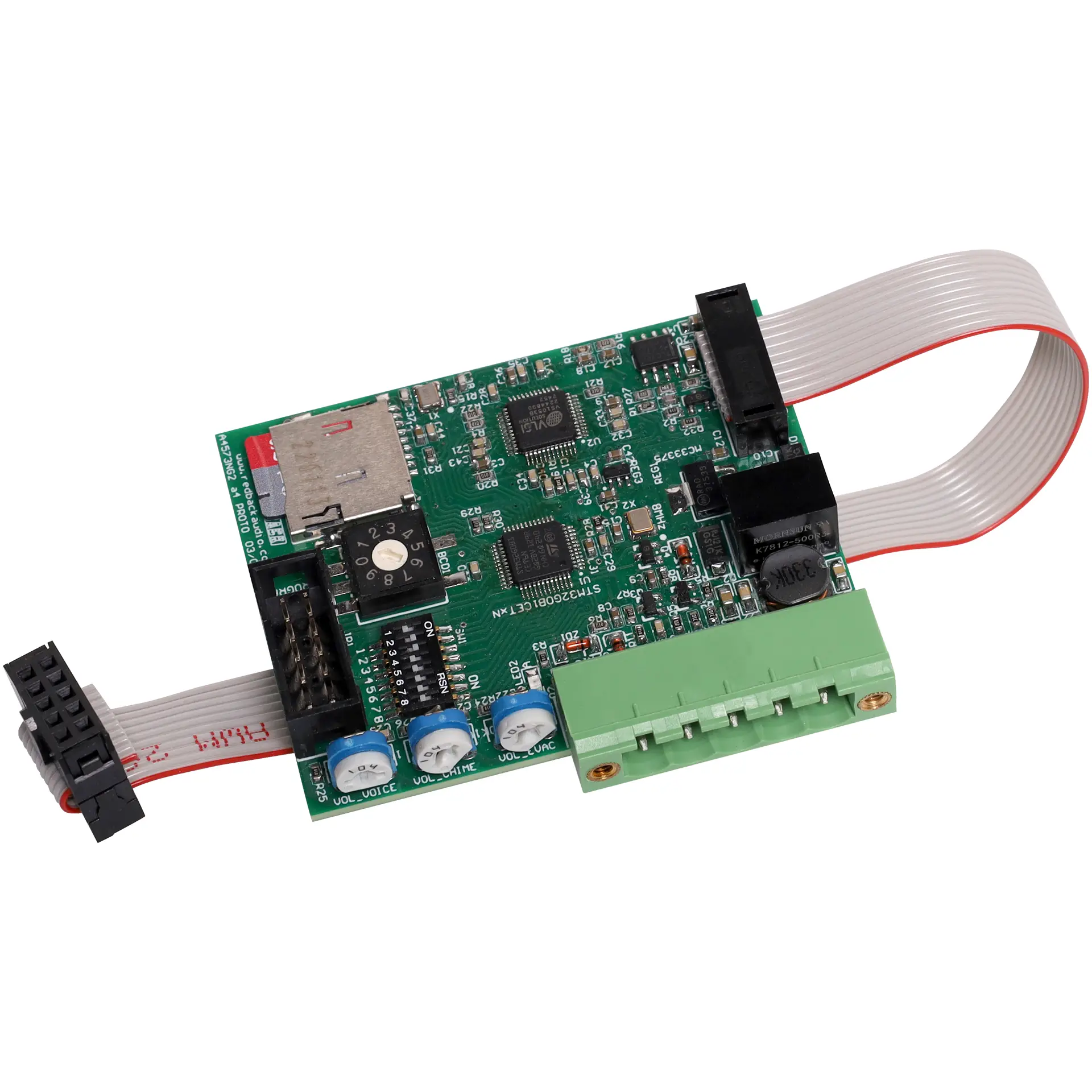

Alert/Evac Option Board For Mixers and Amplifiers

by: Redback
SKU: A4573A
Optional Plugin Board to suit the Phase 4 range of Redback Amplifiers. It generates pre chime, bell, alert and evacuation tones.
$159.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $159.09
2+ $136.36
i h

Overview

The A 4573A module generates pre announcement chimes and alert and evacuation tones for selected Redback® products. Separate volume controls are included for adjustment of the alert/evac tone level, the chime level and the message voice-over level. The chime and alert/evac tones are triggered by closing contacts via a five way euro block. These triggers can be set to momentary or alternate action by on board DIP switches. Chimes included on the module include pre announcement, Ding Dong, repeating Bing and repeating Bong. All of these are DIP switch selectable.

The module is also fitted with a switch over option which changes the evacuation tone from the Alert tone to the Evacuation tone after a set time. This can be adjusted from 30 seconds to 270 seconds in 30 second increments or it can be switched off altogether. A microphone has been included which is used to record an emergency voice over message if required. This message can be turned on via DIP switches, and will play twice after the evacuation tone has repeated four times.

Compatible Products

A 4037 40 Watt Amplifier

A 4043 60 Watt Amplifier

A 4047 100 Watt Amplifier

A 4275C 125 Watt Amplifier

A 4285C 250 Watt Amplifier

A 4377A 125 Watt Amplifier

A 4379 125 Watt 6 Input Amplifier

A 4387A 250Watt Amplifier

A 4389 250 Watt 6 Input Amplifier

A 4480B 8 Input to 8 Output Audio Switcher

A 2078B Alert/Evac/Cancel Remote Control Plate

A 2081 Alert/Evac/Cancel Remote Control Plate





Designed & manufactured in Australia.
Since 1976 Redback public address products have been manufactured in Perth, Western Australia by Altronics. With over 40 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support. Read more about our Australian Made products

Details

Products specifications

Warranty 10 Years
Professional Audio
Type Amplifier Add-Ons

Warranty

WARRANTY

We offer 10 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
