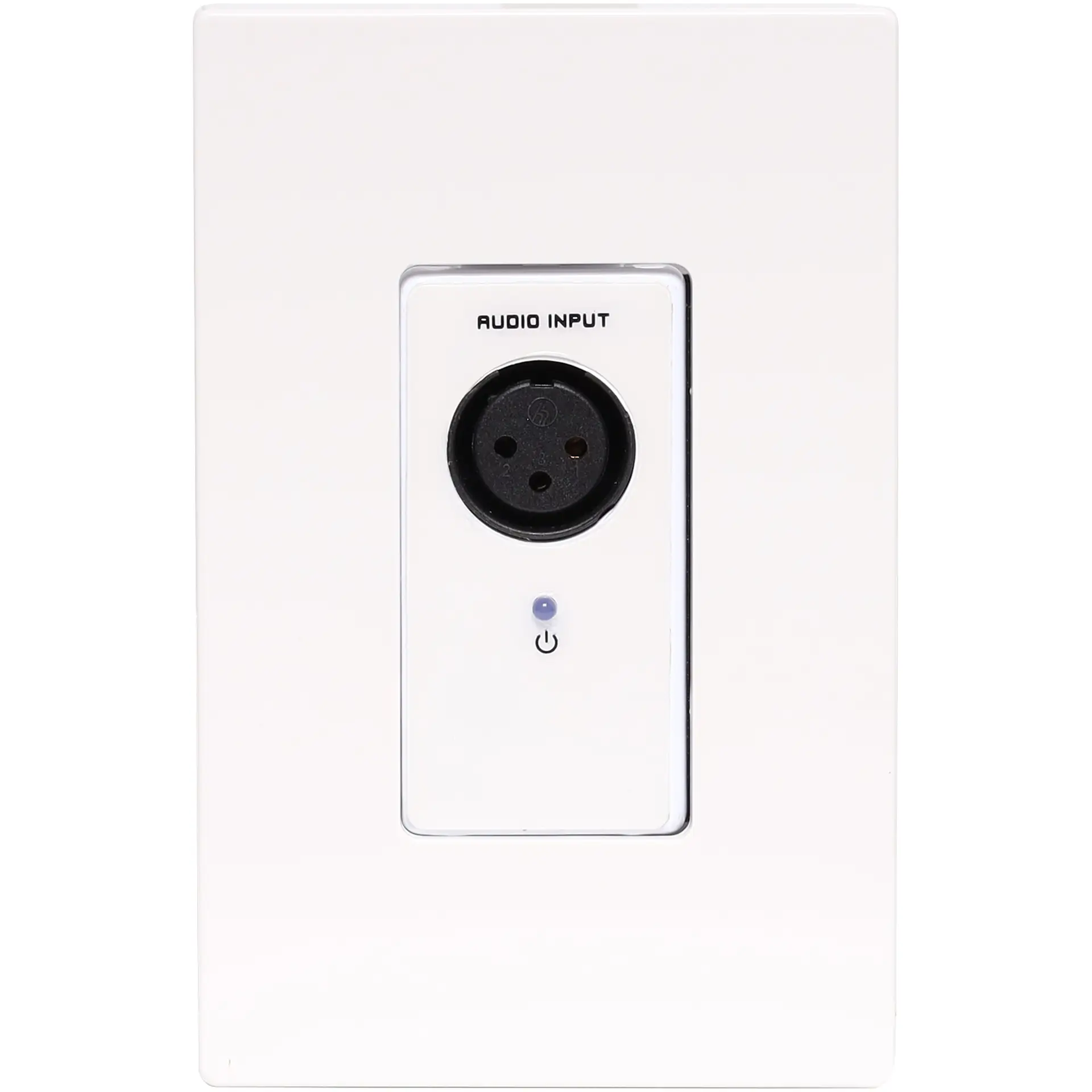

3 Pin XLR Line/Balanced Input UTP Balun Wallplate

SKU: A4820
This 3 pin XLR Line/Balanced input wallplate can be used in a stand-alone point to point basis, allowing balanced signals to be sent over long distances (up to 600m depending on cable used and configuration of plates).
$168.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $168.18
2+ $153.64
4+ $144.55
i h

Overview

This 3 pin XLR Line/Balanced input wall plate can be used in a stand-alone point to point basis, allowing balanced signals to be sent over long distances (up to 600m depending on cable used and configuration of plates).

Distributed audio signals over UTP cabling are becoming increasingly widespread in large building installations and multi-function venues. This product, used together with the rest in the range provide a connected solution for local zone inputs, feeding signals back to centrally located zone amplifiers. The system uses a proprietary standard called CSP which can be easily converted to the widely adopted Dante standard using the A4830/A4831 converter boxes. Powered by 24V DC input.



Features:

  • Balanced MIC XLR Input
  • Selector switch MIC GAIN
  • Switch Selects which Pair (A, B or C) Feeds the Output
  • Signal and Power Pair Pass-through on RJ45 jacks
  • Power can be linked to the removable terminal
  • Daisy chain topology
  • AFC Design (AFC: Auto Feedback Gain Circuitry)

Specifications:

Input Connection: XLR
Input Level: -45 to -65 dBu Bal.;
Max: -40 dBu (HIGH Gain), -28 dBu (NORM Gain)
Signal Pair Used: Switch-selectable A, B, or C Gain: 50 dB (NORM) or 63 dB (HIGH), Switch-selectable on rear panel
UTP Input: RJ45
Output: CSP UTP RJ-45
Output Connection: RJ45
Frequency Response: 100 Hz to 30 kHz (+/- 1 dB);integral low-cut filter -10 dB @ 30 Hz
THD+N: < 0>
Noise below +4 dBu: < -80 dB (NORM Gain), < -70 dB (HIGH Gain)
Headroom above +4 dBu: > 18 dB
CMRR (50 to 150 Hz): > 60 dB (HIGH Gain), > 65 dB (NORM Gain)
Indicator: Power In
Power Connections (2): Detachable terminal block; RJ45
Power Requirement: 24 Vdc @ 65 mA plus connected loads
Maximum Load Current: 135 mA
Dimensions: 4.06W x 10.45H x 4.8Dcm Mounting Box Min.
Depth: 2.4"

Details

Products specifications

Warranty 12 Months
Professional Audio
Type CSP Audio Distributors
