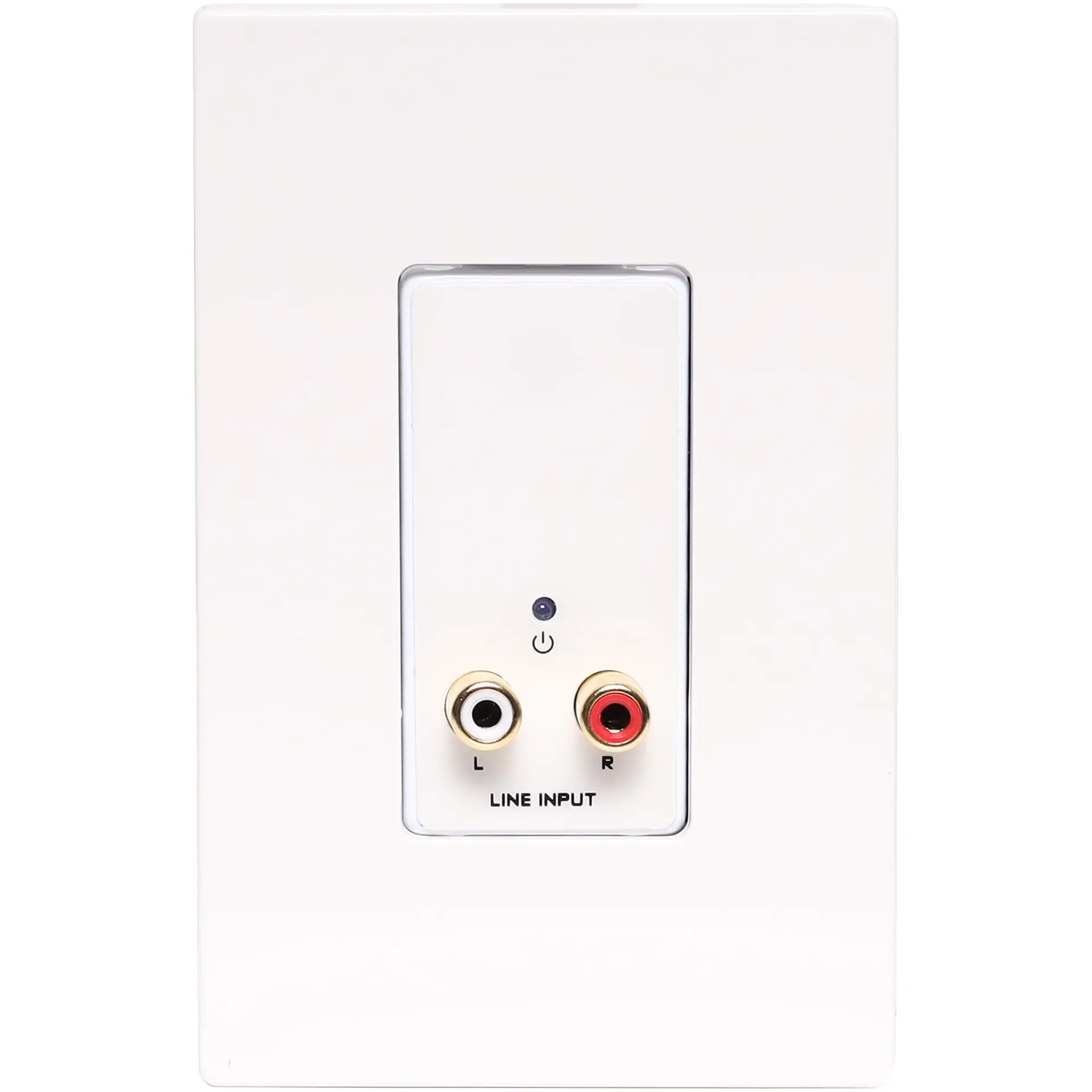

Stereo RCA Input UTP Balun Wallplate

SKU: A4822
This Stereo RCA input wallplate can be used in a stand-alone point to point basis, allowing signals to be sent over long distances (up to 600m depending on cable used and configuration of plates).
$168.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $168.18
2+ $153.64
4+ $144.55
i h

Overview

This Stereo RCA input wallplate can be used in a stand-alone point to point basis, allowing signals to be sent over long distances (up to 600m depending on cable used and configuration of plates).

Distributed audio signals over UTP cabling are becoming increasingly widespread in large building installations and multi-function venues. This product, used together with the rest in the range provide a connected solution for local zone inputs, feeding signals back to centrally located zone amplifiers. The system uses a proprietary standard called CSP which can be easily converted to the widely adopted Dante standard using the A 4830/A 4831 converter boxes. Powered by 24V DC input.



Features:

  • RCA Jack Audio Inputs
  • L (Left) Output Goes to Pair B; R (Right) Output Goes to Pair C
  • Signal and Power Pair Pass-Through on RJ45 jacks
  • Power can be linked to the removable terminal
  • Blue LED Indicates Module is Powered
  • Daisy chain topology
  • AFC Design (AFC: Auto Feedback Gain Circuitry)

Specifications:

Inputs (2): 10 kΩ Unbalanced
Input Connection: RCA Phono
Input Level: +10 dBV Maximum
CSPSignal Pairs Used (2): B (Left); C (Right)
Gain: 12 dB
Input: CSP UTP RJ45
Output: UTP Receiver (RJ45)
Output Connection: RJ45
Frequency Response: 20 Hz to 50 kHz (+/- 0.5 dB)
THD+N: < 0>
Noise below +4 dBu: < -95 dB
Headroom above +4 dBu: > 18 dB
Indicator: Power In
Power Connections (2): Detachable terminal block; RJ45
Power Requirement: 24 Vdc @ 65 mA plus connected loads
Maximum Load Current: 135 mA
Dimensions: 4.06W x 10.45H x 4.8Dcm Mounting Box Min.
Depth: 2.4"

Details

Products specifications

Warranty 12 Months
Professional Audio
Type CSP Audio Distributors

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Data Sheet
PDF
