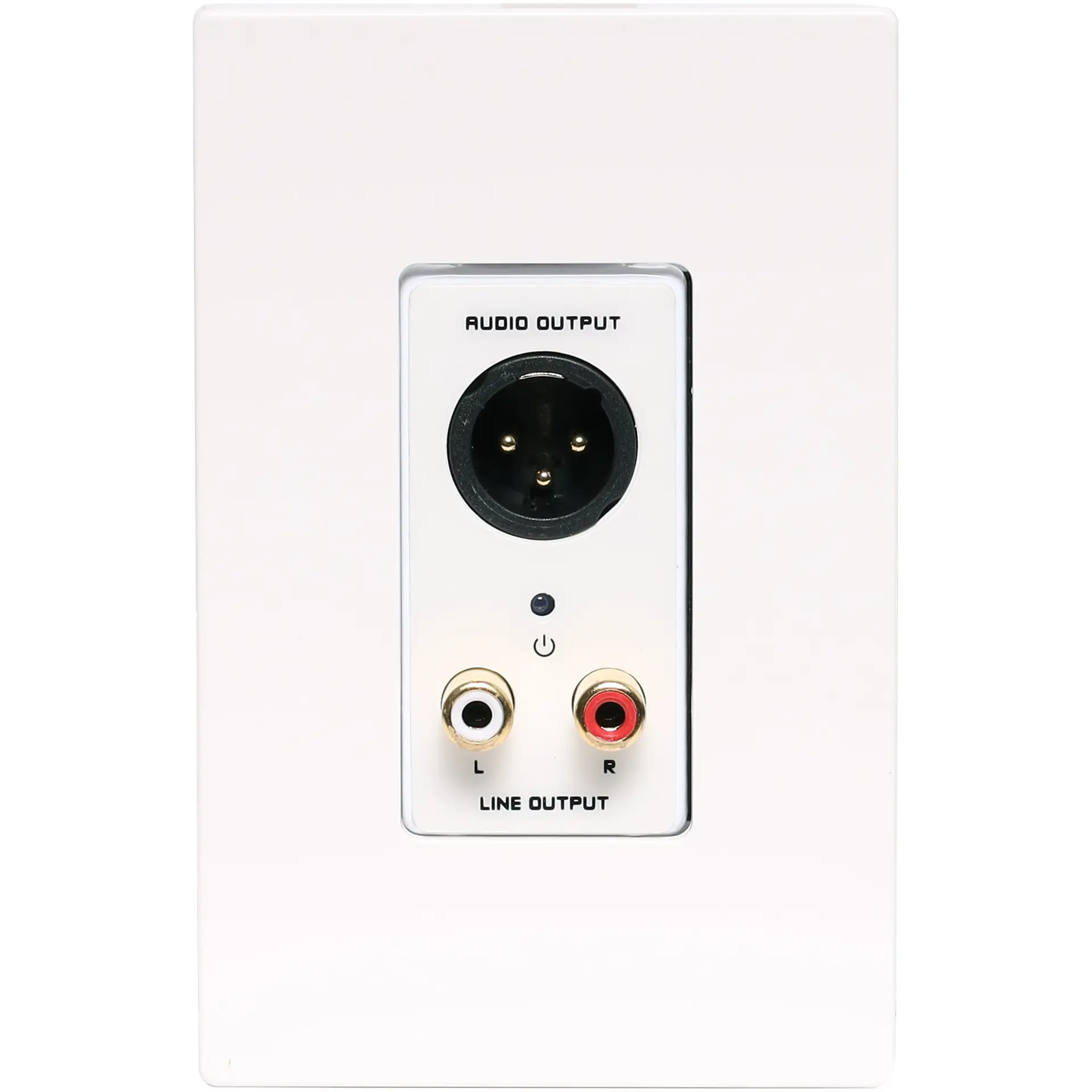

3 Pin XLR Balanced & Stereo RCA Output UTP Balun Wallplate

SKU: A4826
This 3 pin XLR Balanced and Stereo RCA output wallplate can be used in a stand-alone point to point basis, allowing balanced signals to be sent over long distances (up to 600m depending on cable used and configuration of plates).
$180.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $180.91
2+ $168.18
4+ $159.09
i h

Overview

This 3 pin XLR Balanced and Stereo RCA output wallplate can be used in a stand-alone point to point basis, allowing balanced signals to be sent over long distances (up to 600m depending on cable used and configuration of plates).

This wallplate provides XLR output and RCA jack outputs, and receives the signal from three pairs of CAT5 cable, then routs one to XLR output and two to L/R channel of RCA outputs. Before the installation, Please set MIC/LINE switch depends on the output level of XLR connector. It can be powered from a 24VDC power supply by using the rear panel terminal block, and the power also could be provided to all the connected modules by Pair D of UTP CAT5 cable. When the power is supplied to this module, the front panel LED will light on.

Distributed audio signals over UTP cabling are becoming increasingly widespread in large building installations and multi-function venues. This product, used together with the rest in the range provide a connected solution for local zone inputs, feeding signals back to centrally located zone amplifiers. The system uses a proprietary standard called CSP which can be easily converted to the widely adopted Dante standard using the A 4830/A 4831 converter boxes. Powered by 24V DC input.



Features:

  • XLR / RCA Audio Output,
  • Gain Switch XLR only
  • Signals from Pair A(XLR), Pair B(L) and Pair C(R).
  • Power can be linked to the removable terminal
  • Blue LED Indicates Module is Powered

Specifications:

Input: CSP UTP RJ45

Connection: RJ45

Twisted Pair Used: A, B, C pairs

Outputs: 150 Ω Balanced; 100 Ω Unbalanced

Output Connector: XLR (Balanced Mic or Line, switchable); RCA Jacks

Output Level: XLR: -45 dBu Mic or +4 dBu Line Level

RCA: -10 dBV

THD+N: < 0.005%

Frequency Response: 20 Hz ~ 20 KHz

Crosstalk: < 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz)

Power Requirement: 24 VDC @ 55 mA; 155 mA (Max.)

Dimensions: 43W x 66.5H x 40Dmm

Details

Products specifications

Warranty 12 Months
Professional Audio
Type CSP Audio Distributors
