200W Subwoofer Amplifier

by: Redback
SKU: A4861
A compact dedicated subwoofer amplifier providing up to 200W into 4 ohms. Ideally paired with the A 4860 and C 1065 ceiling subwoofer, but is also suitable for any passive subwoofer. Ideal for integration with commercial systems in fashion boutiques, shopping centres, gymnasiums etc.
$472.73

All Prices Shown are (ex GST)
Bulk Pricing
ea $472.73
2+ $431.82
4+ $409.09
i h

Overview

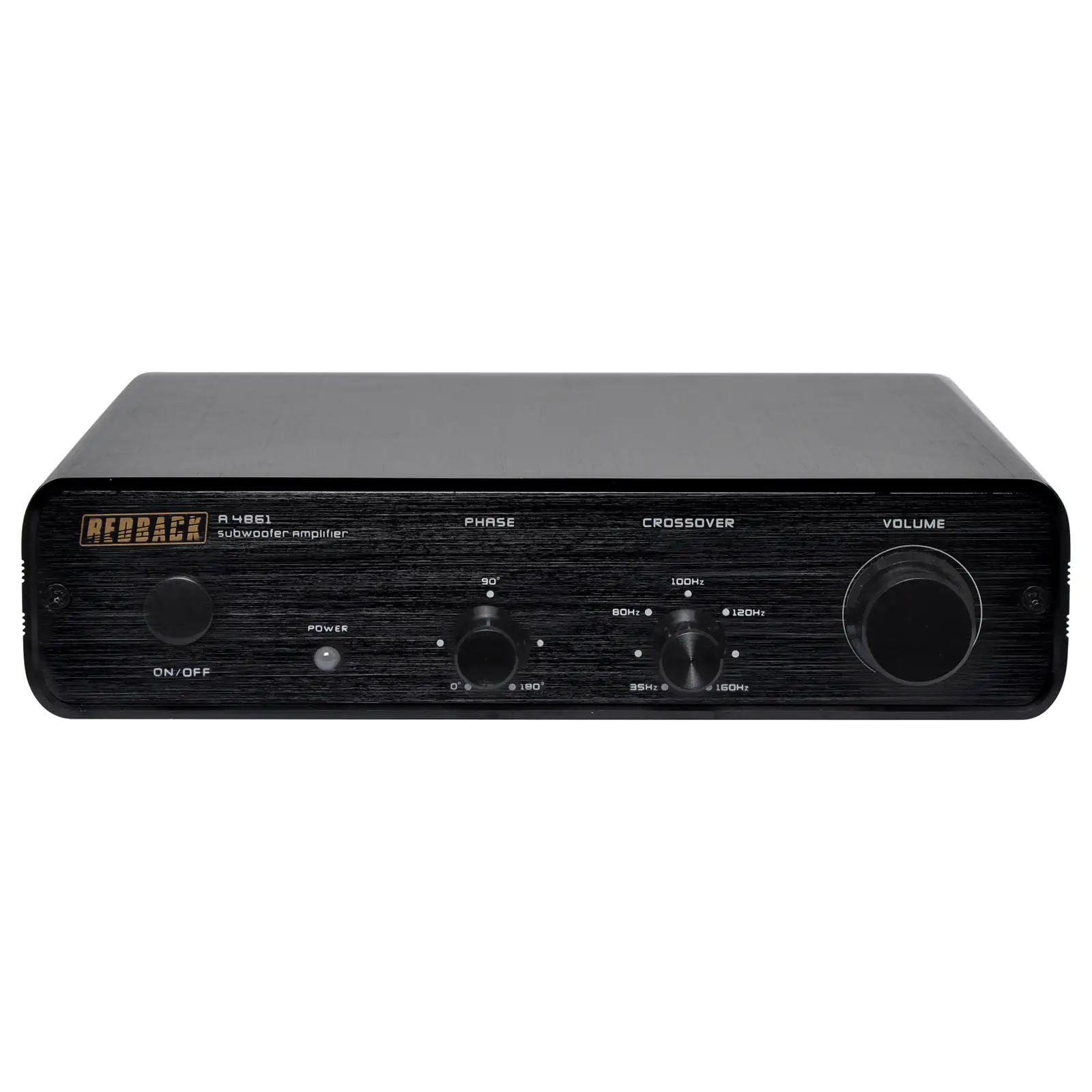

A compact dedicated subwoofer amplifier providing up to 200W into 4 ohms. Ideally paired with the A 4860 and C 1065 ceiling subwoofer, but is also suitable for any passive subwoofer. Ideal for integration with commercial systems in fashion boutiques, shopping centres, gymnasiums etc. Front panel provides level control, phase adjustment and crossover frequency selection (35Hz - 160Hz). Stereo RCA and speaker level input/outputs provided. Size: 200W x 48H x 220D mm.



Features:

  • 200W into 4 ohms
  • Stereo RCA input
  • Speaker level input and outputs
  • Adjustable phase and crossover frequency
  • Volume level control
  • 240V AC operation





Specifications:

Power Output: 200W (RMS @ 4Ω)

Total Harmonic Distortion (THD): <1%(Rated power: 200W @ 4Ω)

Adjustable Low Pass Crossover: 35Hz ~ 160HZ

Frequency Response: 20Hz~20KHz +0/-2dB@ -3dB

Line Level Input Sensitivity: 200mV

Phase Range: 0 ~ 180°

Auto Turn-on Sensitivity: 2mV @ 50 Hz

Trigger In: 12VDC

Thermal Protection: Yes

AC Input: Voltage 115V or 230V

Dimension: 200mm x160mm x 47.5mm (WxDxH)

Weight: 1.32kg

Details

Products specifications

Warranty 12 Months
Professional Audio
Output Stereo Amplifiers
Type Home Theatre Receivers

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
.pdf
Brochure
PDF
