Australian Made

1 In to 2 Out Audio Splitter

by: Redback
SKU: A4904
This compact signal splitter is provided with two input sockets. The 3 pin XLR can be configured for either 3mV or 1V sensitivity, whilst the RCA auxiliary input can be set for either 100mV or 1V sensitivity.
$145.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $145.45
2+ $136.36
4+ $127.27
i h

Overview

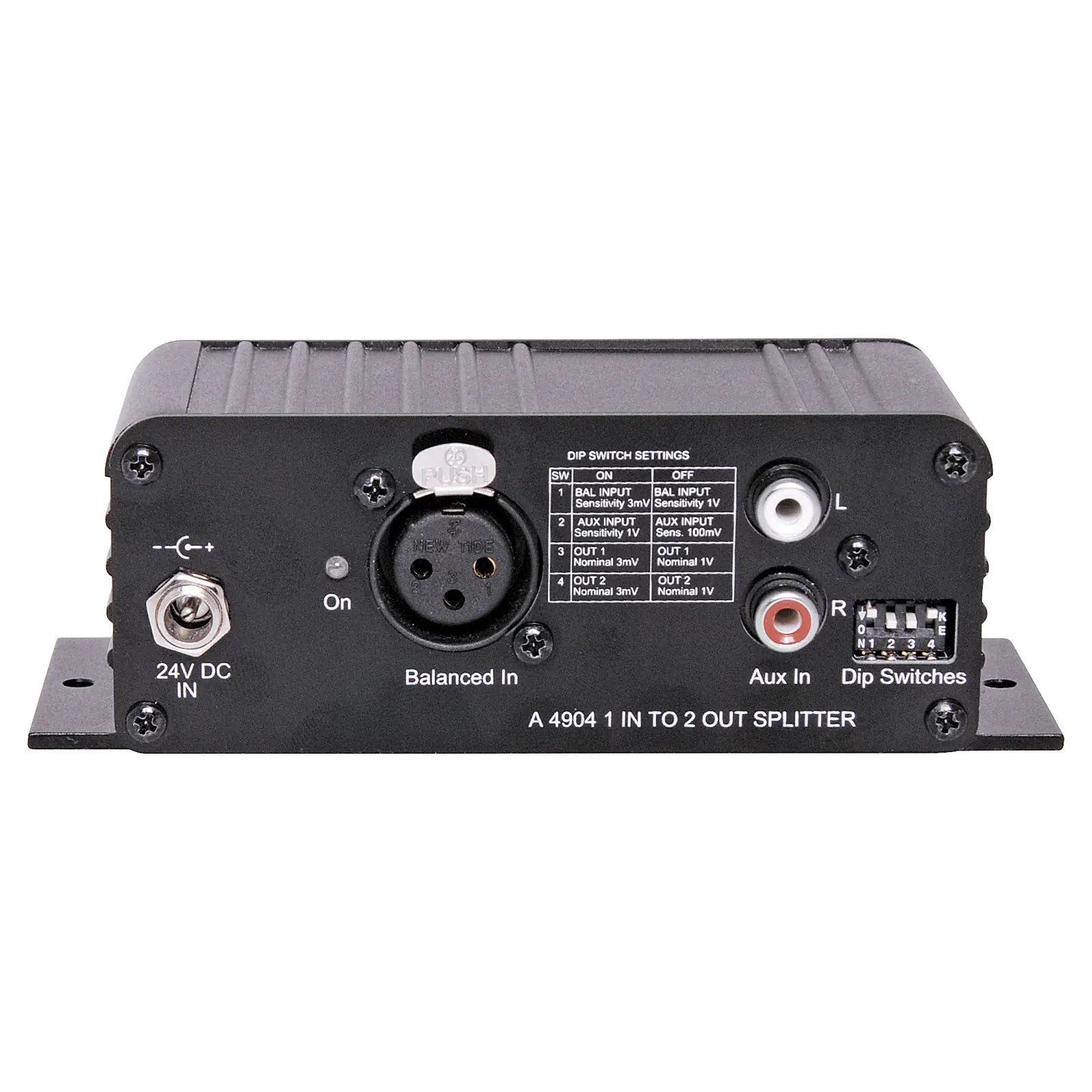

This compact signal splitter is provided with two input sockets. The 3 pin XLR can be configured for either 3mV or 1V sensitivity, whilst the RCA auxiliary input can be set for either 100mV or 1V sensitivity. The input signal is split into two outputs. Each output is provided with two sockets. A 3 pin XLR with output adjustable to either 3mV or 1V and a dual RCA configurable to either 100mV or 1V. This enables the user to select a number of input to output signal configurations to suit their application. All input/output sensitivity adjustments are by set and forget DIP switches. Volume controls are provided for each output. The unit operates from an external 24V dc source.
Dimensions: 112W x 45H x 55Dmm (excluding 12mm flanges).

This unit does not include a power supply. Requires 24V DC @ 500mA. Suitable plugpack M 8968C.



Features:

  • 1 input to 2 outputs
  • Adjustable input and output signals
  • Individual volume controls for each output
  • Internally selectable phantom power available on XLR input
  • 24V dc operation
  • Compact design, 112W x 45H x 55Dmm (excluding 12mm flanges)





10 year warranty

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

australian made

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Details

Products specifications

Warranty 10 Years
Professional Audio
Type Level Converters

Warranty

WARRANTY

We offer 10 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
.pdf
Brochure
PDF
