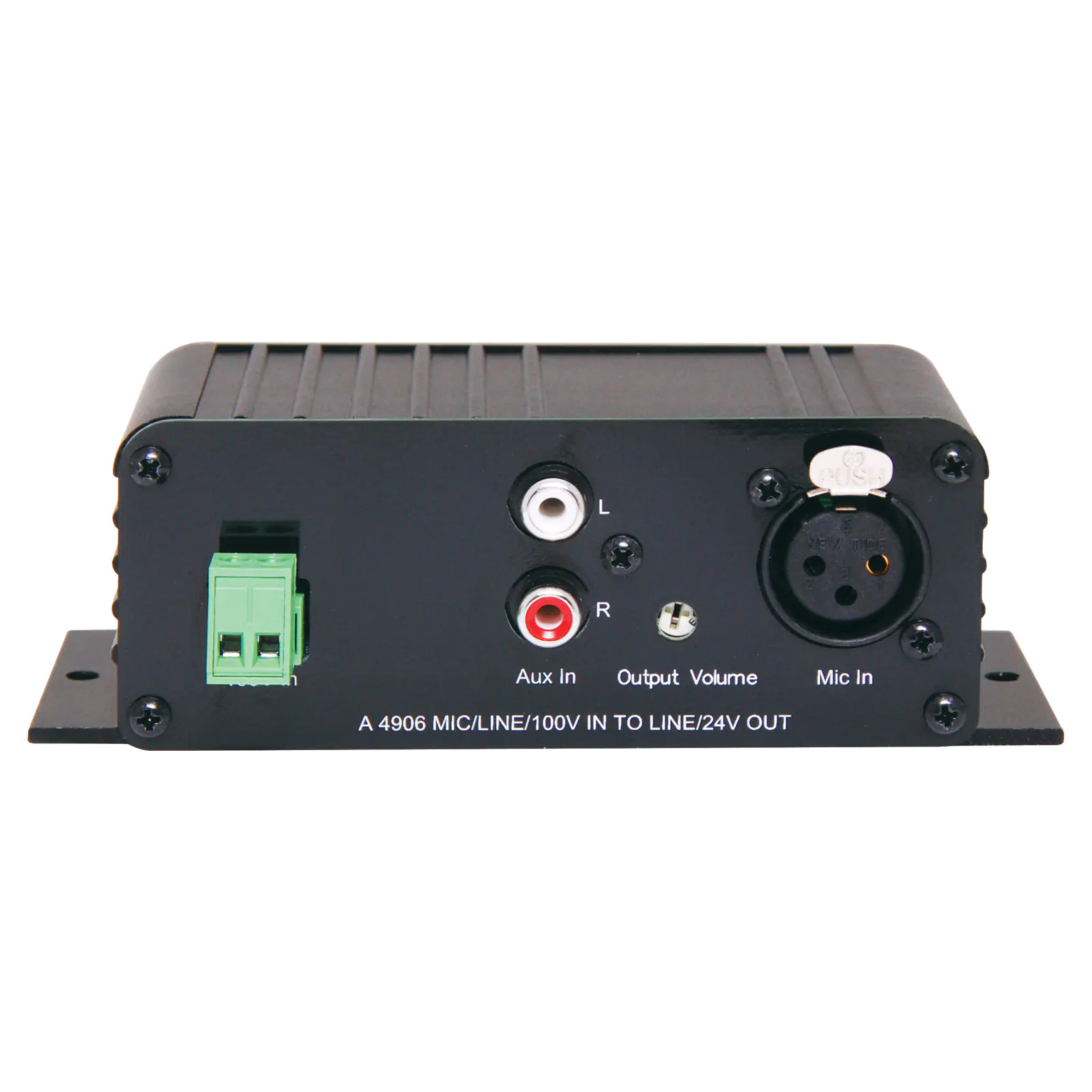

Mic/Line/100V Input to Line +24V Switched Output

by: Redback
SKU: A4906
The A 4906 is a versatile unit which accepts either a line level signal, balanced microphone signal or 100V input signal. The output signal is a line level signal suitable for feeding into an amplifier.
$172.73

All Prices Shown are (ex GST)

Bulk Pricing
ea $172.73
2+ $162.73
4+ $153.64
i h

Overview

The A 4906 is a versatile unit which accepts either a line level signal, balanced microphone signal or 100V input signal. The output signal is a line level signal suitable for feeding into an amplifier. Phantom power is available to the microphone input, and a VOX circuit, with adjustable sensitivity is used to trigger output relays. The unit is powered from a 24V DC source.

This unit does not include a power supply, see accessories below for suitable power supply.



Features:

  • Mic, line or 100V input level.
  • Line level output.
  • Phantom power to Mic Input (12V DC).
  • Controls for master volume and VOX sensitivity.
  • VOX operated relay outputs.
  • 24VDC switched output. (120mA Max).
  • 24VDC operation via 2.1mm DC power jack.
  • Dimensions 133W x 30H x 80D mm.










Details

Products specifications

Warranty 10 Years
Professional Audio
Type Level Converters
