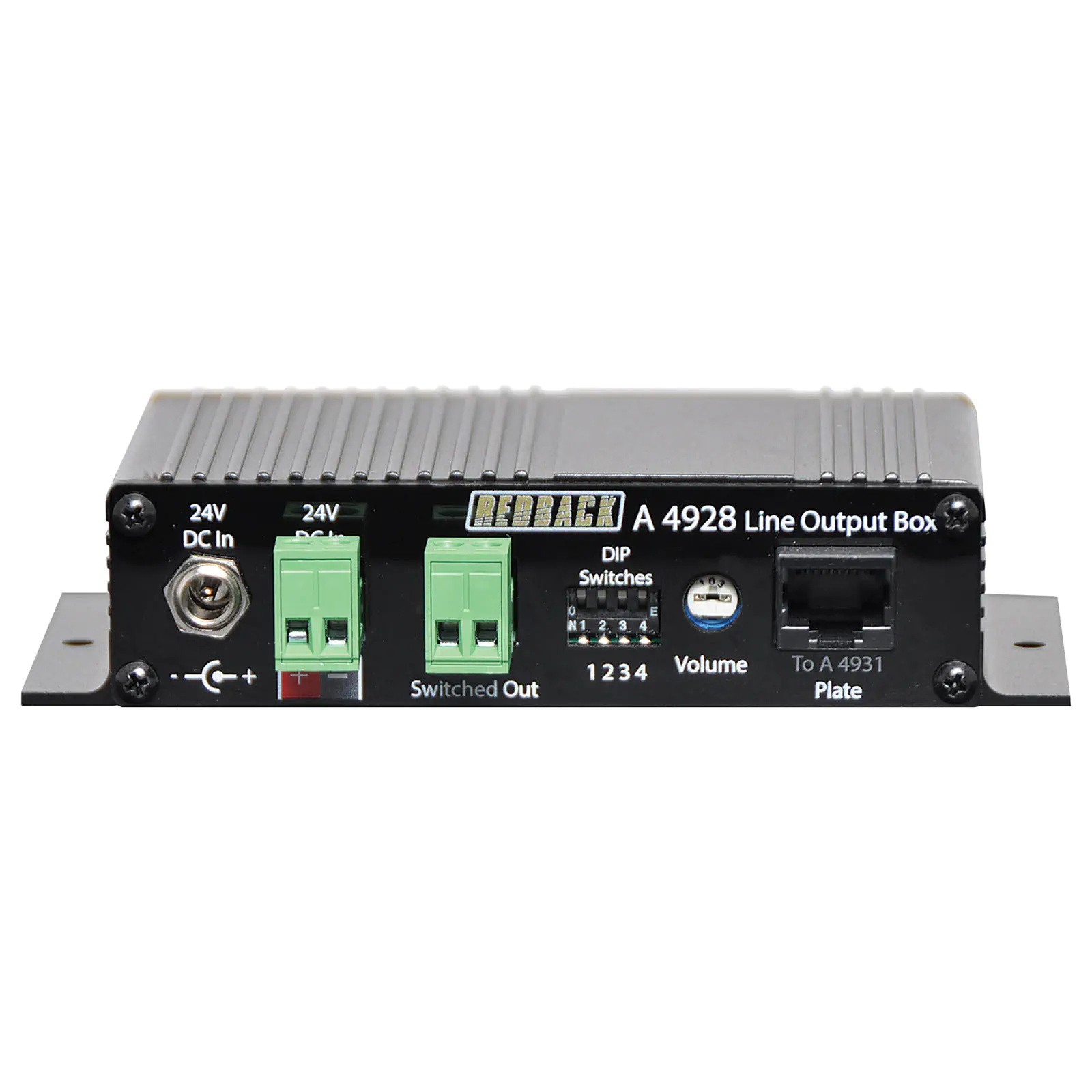

Single Output Microphone/Line Hub

by: Redback
SKU: A4928
A single mic/line output box designed to operate with A 4931 and A 4932 zone connection boxes.
$200.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $200.00
2+ $181.82
i h

Overview

This single output microphone/line hub is designed to accept audio from a preamp UTP wallplate or compatible transmitter box. Accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to the A 4928. The unit is equipped with a dedicated balanced or unbalanced output, with volume control. Output has DIP switch selectable balanced mic/line, or unbalanced line level output which can be fed directly into amplifiers. Powered by 24V DC from the supplied plugpack.



Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.



Features:

  • Connects to a variety of compatible Redback UTP transmitters
  • Easy Cat5e/6 UTP data cabling connection.
  • Up to 300m cable runs out to wallplate/box.
  • Balanced Euro terminal block connections.
  • Balanced mic or line level operation.
  • 24V DC operation.
  • Australian designed & assembled.










Specifications:

Input Mic Level Sensitivity: 3mV

Input Line Level Sensitivity: 1V

Music Input Level Sensitivity: 500mV

Output Connector: RJ45 8P8C

Details

Products specifications

Warranty 10 Years
Professional Audio
Type Pre-Amplifiers, Level Converters

Warranty

WARRANTY

We offer 10 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
.pdf
Connection Matrix
PDF
