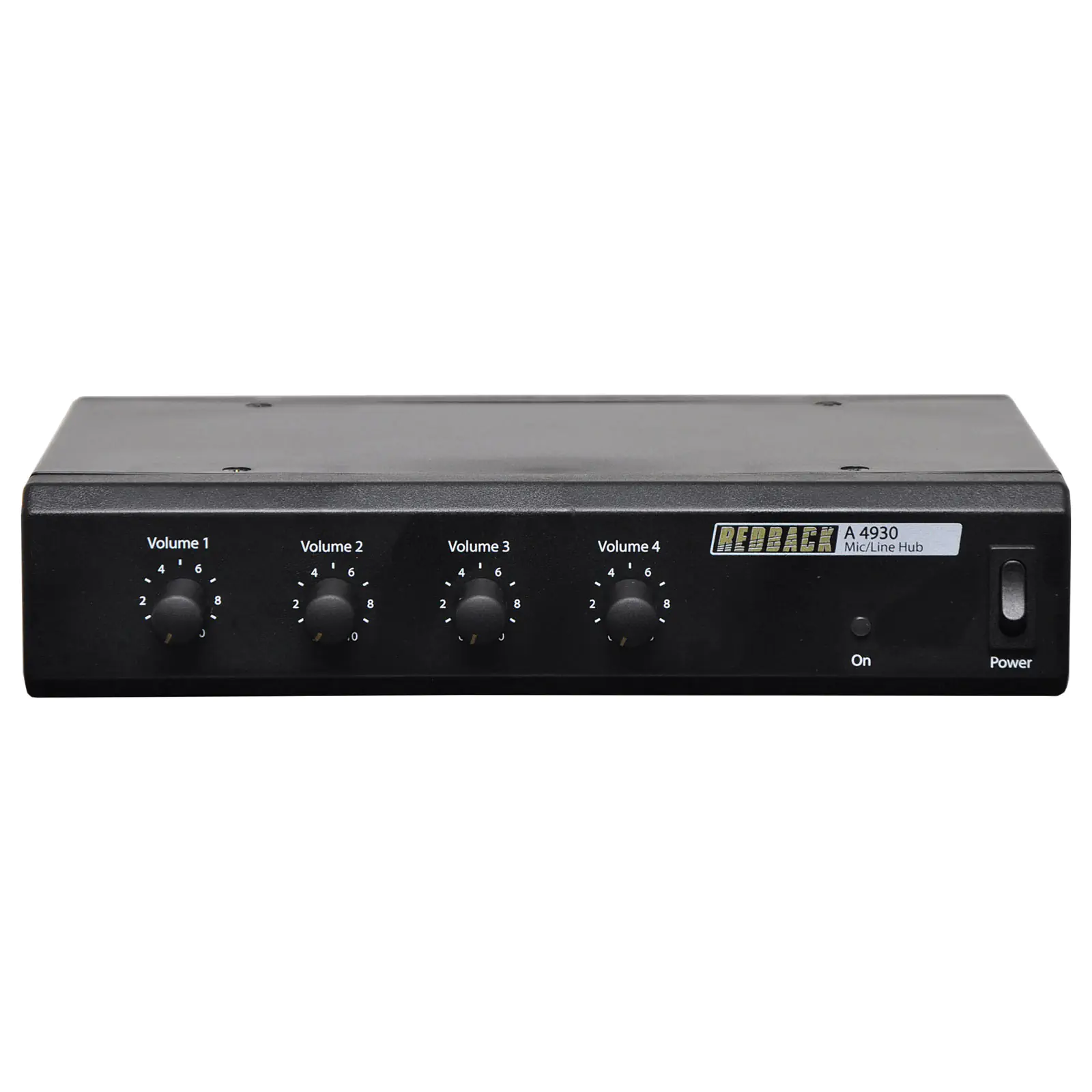

This Microphone/Line Hub is designed to accept audio from up to four A 4931 Mic/Line Preamp wallplates. The Hub has a dedicated output for each wall plate, with front mounted volume controls for each output.

Four Output Microphone/Line Hub

Name: Four Output Microphone/Line Hub
SKU: A4930
Price: 390.91 AUD
Availability: InStock

by: Redback

SKU: A4930

This Microphone/Line Hub is designed to accept audio from up to four A 4931 Mic/Line Preamp wallplates. The Hub has a dedicated output for each wall plate, with front mounted volume controls for each output.

$390.91

All Prices Shown are (ex GST)

Bulk Pricing

ea	$390.91
2+	$354.55

i h

Overview
Details
Warranty
Downloads

Overview

This microphone/line receiver hub is designed to accept audio from up to four A 4931 zone wallplates or other Redback UTP transmitter. The A 4931 wallplate accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to the hub. Mic input is via a balanced XLR whilst the line input is via 2 x RCA sockets or 3.5mm audio jack for portable devices with a lower level line output.

The receiver hub has a dedicated output for each transmitter, with front mounted volume controls for each output. Each output can be DIP switch selected to be fed to a dedicated mixed output. Each output including the mixed output has DIP switch selectable balanced mic/line, or unbalanced line level outputs which can be fed directly into amplifiers. The hub is powered by 24V DC from the supplied plugpack.

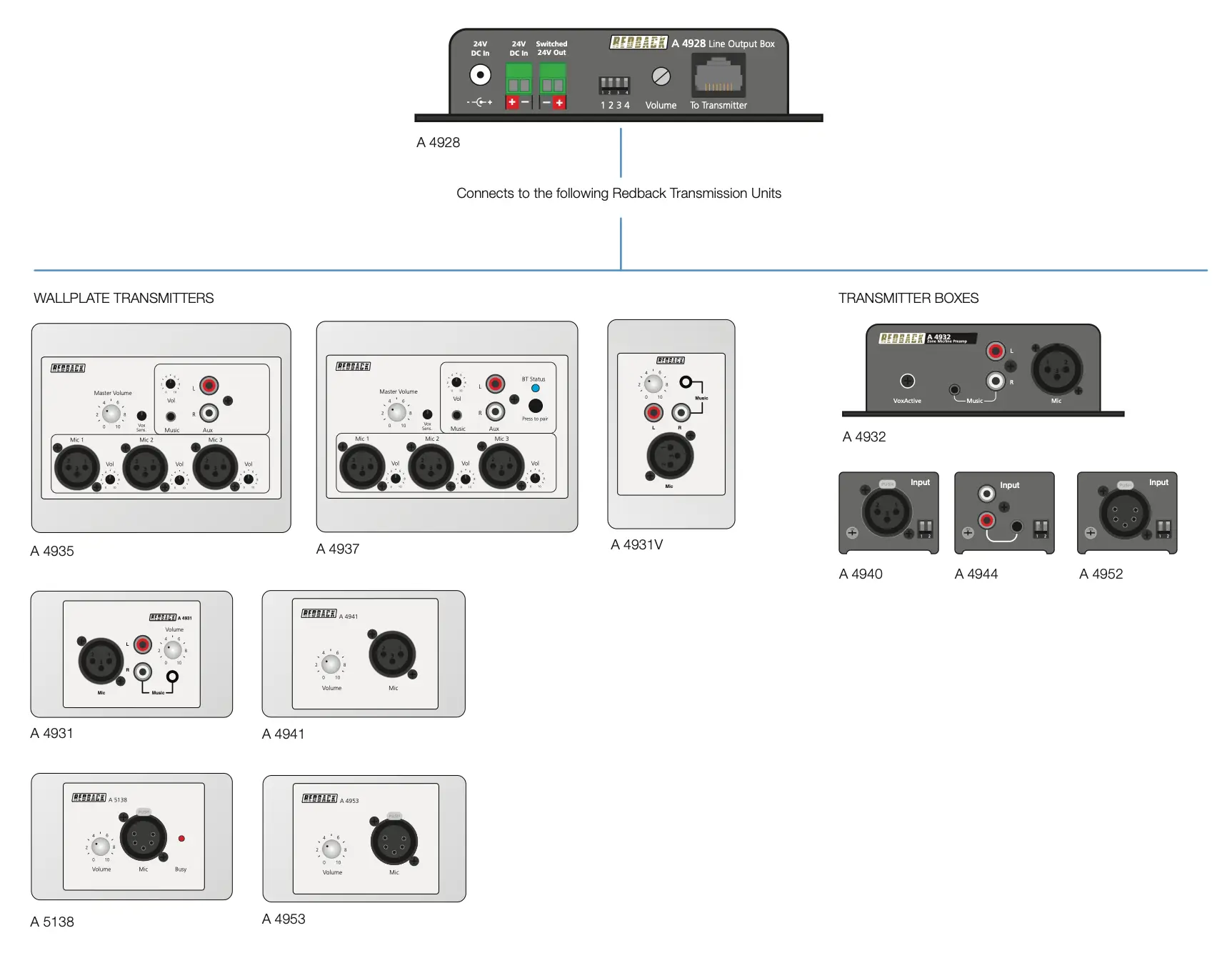

Connection Matrix

Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Features:

Connects to A 4931 transmitter wallplate or other Redback UTP transmitter (see connection matrix)
Connect up to four audio zones together.
Easy Cat5e/6 UTP data cabling connection.
Up to 300m cable runs out to zones.
Balanced Euro terminal block connections.
Balanced mic or line level operation.
24V DC operation.
Australian designed & assembled.

Specifications:

Output Mic Level: 3mV

Output Line Level: 1V

Output Connectors: Audio Outputs: Euroblock terminals

Input Connectors: Wall Plate Inputs: RJ45 8P8C

24V DC Power: 2.1mm JACK (centre +ve)

24V DC Power: Euroblock terminals

Controls: Volume1-4: Front Volume

Power Supply: 24V DC @ 1 Amp

Dimensions: 210W x 122D x 44H

Weight: 0.4 kg

Details

Products specifications

Warranty	10 Years
Professional Audio
Type	Pre-Amplifiers, Level Converters
