5 Pin XLR Cat5 Extender (Receiver)

by: Redback
SKU: A4954
The Redback® A 4954 receives audio from compatible Redback® Cat5e/6 transmitters and converts the signal to a balanced XLR output with PTT connection.
$172.73

All Prices Shown are (ex GST)
Bulk Pricing
ea $172.73
2+ $159.09
4+ $150.00
i h

Overview

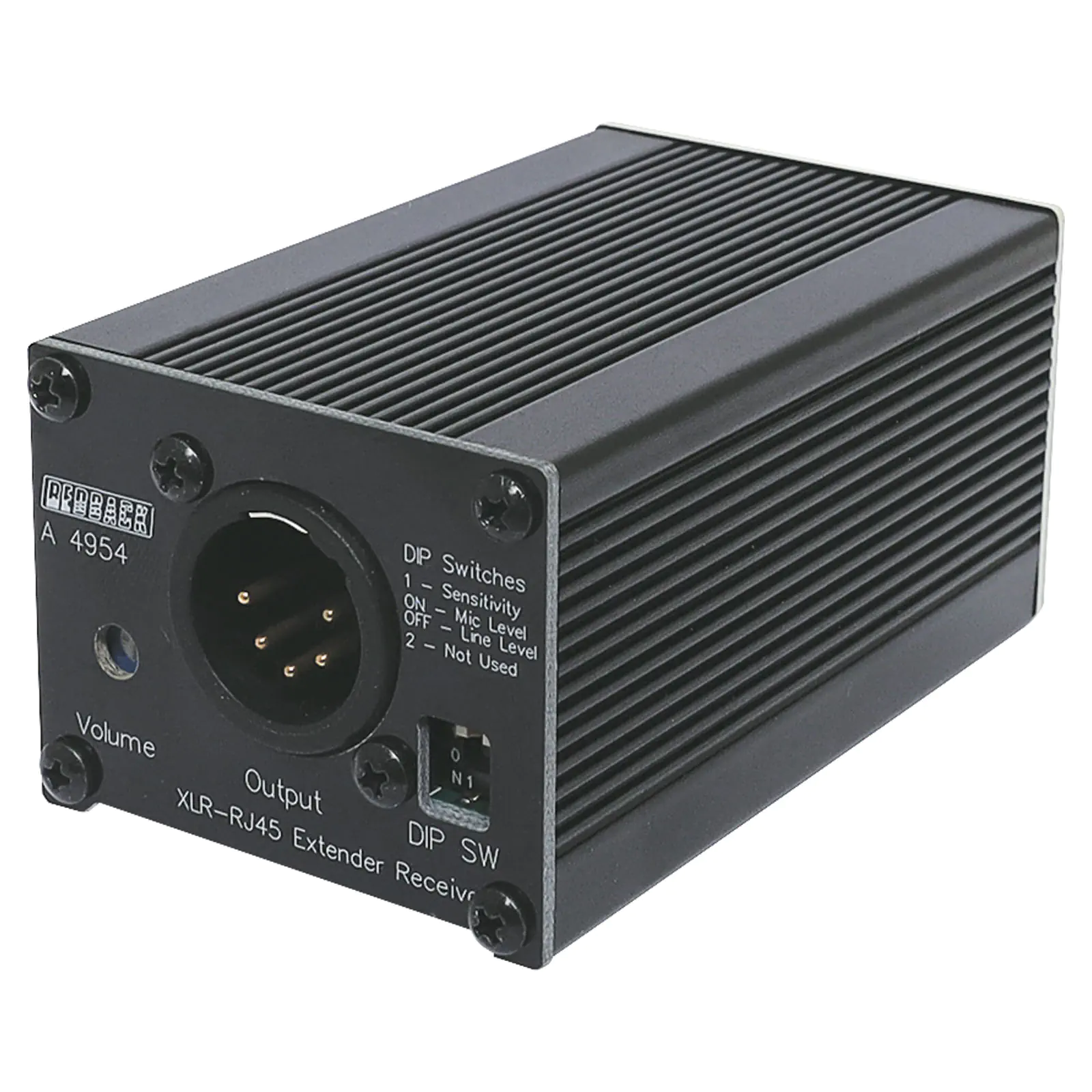

This 5 pin XLR UTP receiver accepts signals from compatible Redback UTP solutions transmitters and converts the signal to a balanced XLR output with PTT connection. The output level is DIP switch selectable, and the output volume is screwdriver adjusted via the trimpot on the front of the unit. The unit is powered from 24V DC, which can be connected to the DC socket on the rear, or it can be supplied through the Cat5/6 cabling from other compatible Redback products (see connection matrix). A 24V DC plugpack is supplied for connection to the DC socket.

The Redback® A 4954 can be connected to compatible Redback® products such as the A 4952 and A 4953. These units carry the balanced output and push-to-talk (PTT) signal to the A 4954 ensuring seamless operation for paging microphones (PTT connects to pins 4 and 5 of the XLR socket).

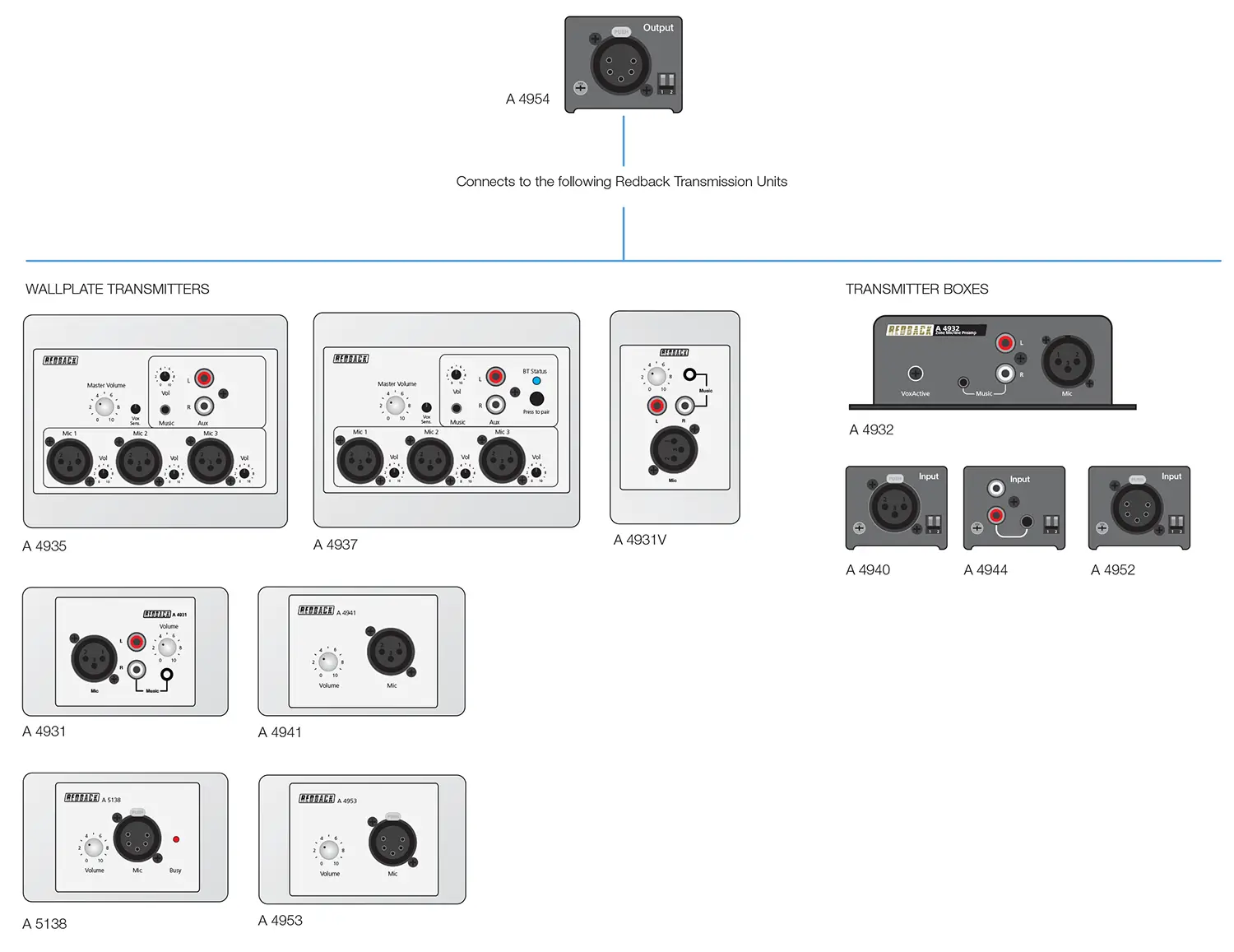

connection matrix



Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.












Details

Products specifications

Warranty 10 Years

Warranty

WARRANTY

We offer 10 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
.pdf
Connection Matrix
PDF
