Australian Made

Designed with small supermarkets in mind. We've designed the hub to cater for industry standard supermarket 5 pin XLR microphones which connects to a local wallplate (A 5138) over a Cat5/6 cable.

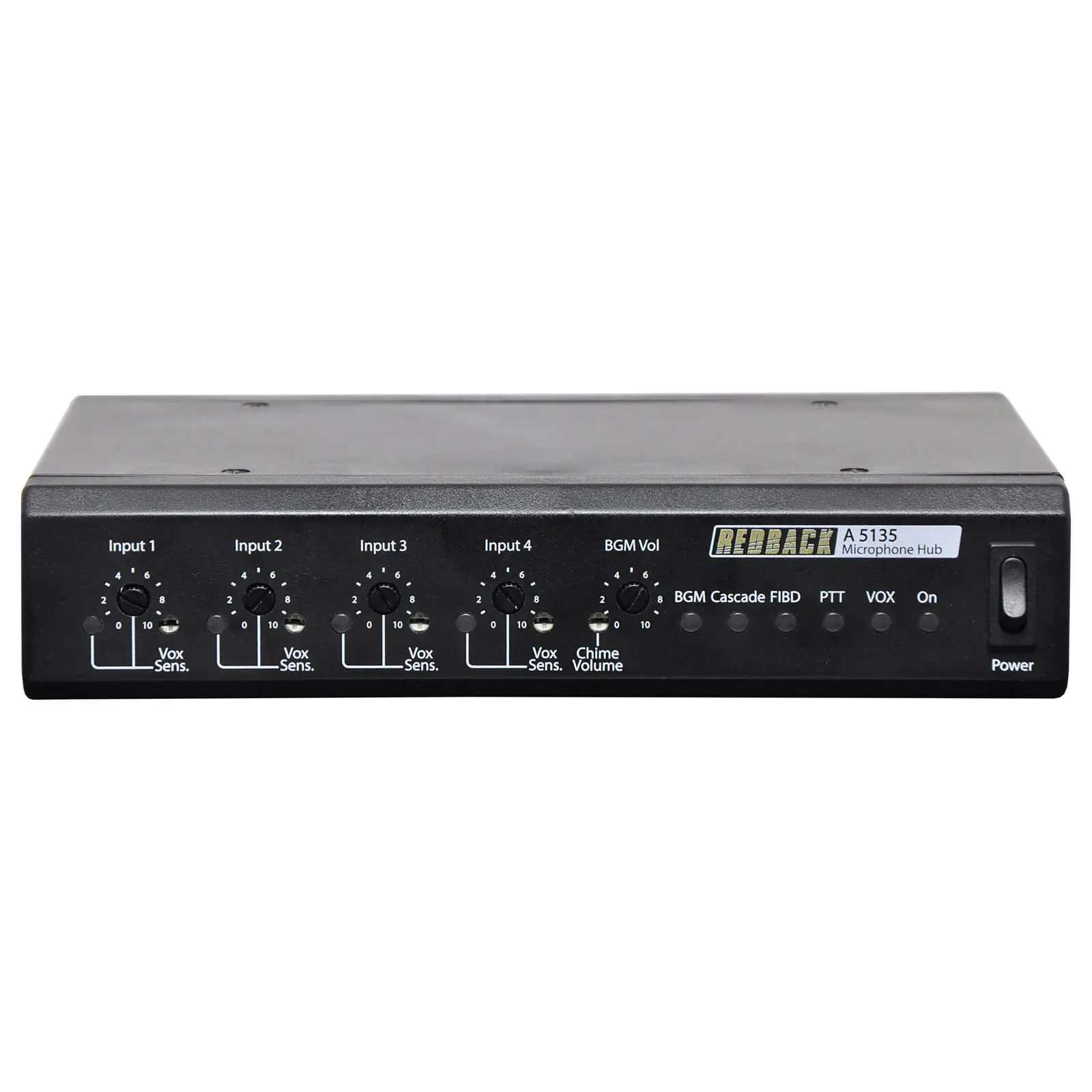

4 Input Microphone Hub

Name: 4 Input Microphone Hub
SKU: A5135
Price: 395.45 AUD
Availability: InStock

by: Redback

SKU: A5135

Designed with small supermarkets in mind. We've designed the hub to cater for industry standard supermarket 5 pin XLR microphones which connects to a local wallplate (A 5138) over a Cat5/6 cable.

$395.45

All Prices Shown are (ex GST)

Bulk Pricing

ea	$395.45
2+	$363.64

i h

Overview
Details
Warranty
Downloads

Overview

This microphone hub has been designed with small supermarkets in mind. We’ve designed the hub to cater for industry standard supermarket 5 pin XLR microphones which connects to a local wallplate (A 5138) or other Redback UTP transmitter over Cat5/6 cable. This greatly simplifies the install cabling process for multiple microphone systems. Up to four microphones can be connected to one hub with each input configurable to either VOX or PTT muting. Three levels of priority are provided: FIBD, 1 over 2-4, 2 over 3-4, 3 over 4 or mixed options. System busy LED’s are included on each wallplate.

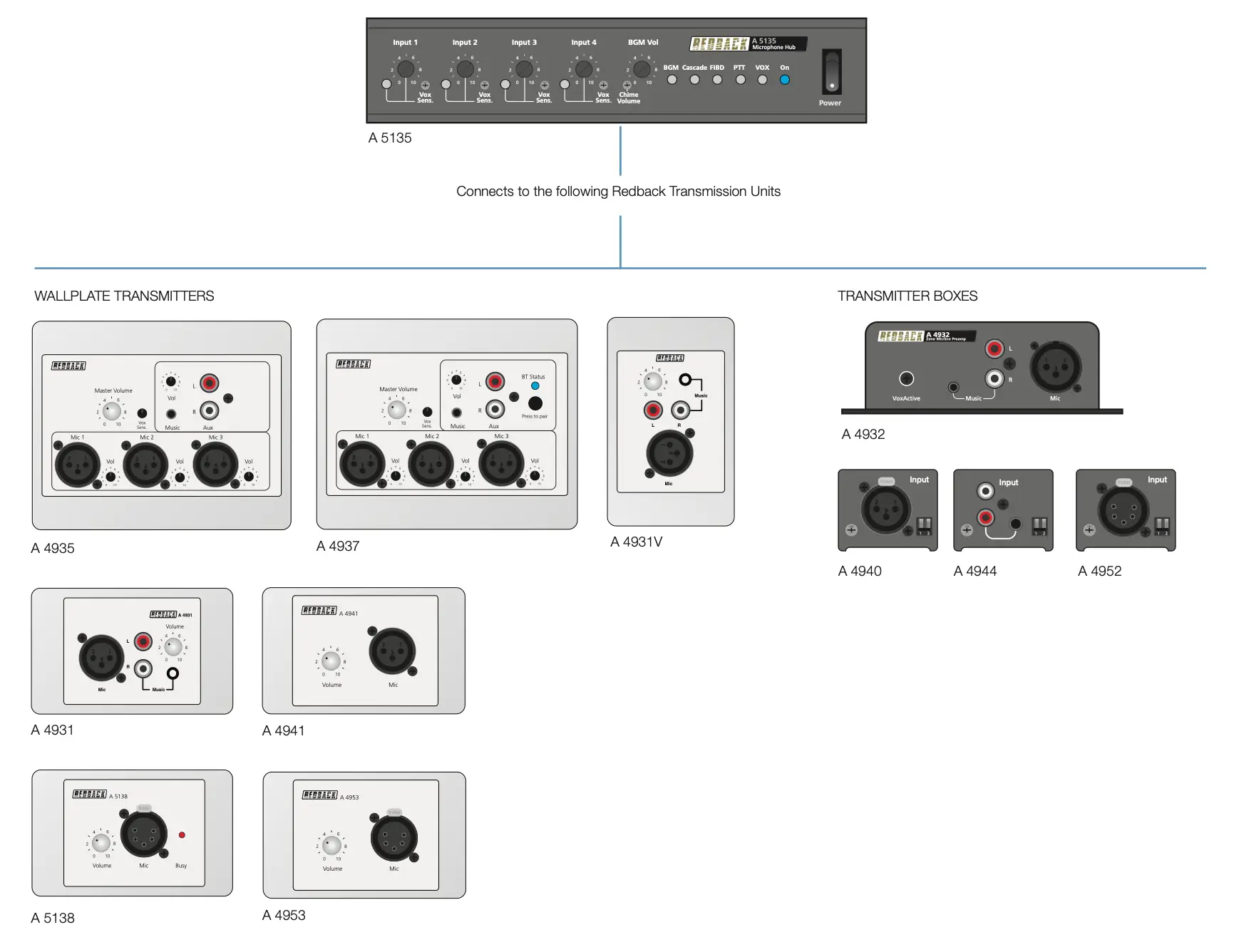

connection matrix

Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Features

Connects to four paging microphones via A 5138 wallplates or other Redback UTP transmitter at each location
Built for supermarkets, food outlets or anywhere multiple paging microphones are in use
Easy Cat5e/6 cabling back to hub
Adjustable VOX sensitivity
PTT muting
24V DC operation
BGM input
Balanced & line outputs
Australian designed & assembled.

Specifications:

Output Connectors:

Audio Outputs: Dual RCA, Euroblock terminals

Wall Plate Inputs: RJ45 8P8C

24V DC Power: 2.1mm JACK (centre +ve)

24V DC Power: Euroblock terminals

BGM Input: Dual RCA

Controls:

Volume1-4: Front Volume

Vox Sensitivity 1-4: Front Adjust

Chime Volume: Front Adjust

General:

Indicators: BGM Active, PTT Muting, VOX Muting, Cascade Mode, FIBD Mode, On

Power Supply: 24V DC @ 1 Amp

Dimensions: 210W x 122D x 44H

Weight: 0.4 kg

Balanced Output Level: 1V

Output Line Level: 1V

BGM Input Line Level: 1V

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.
