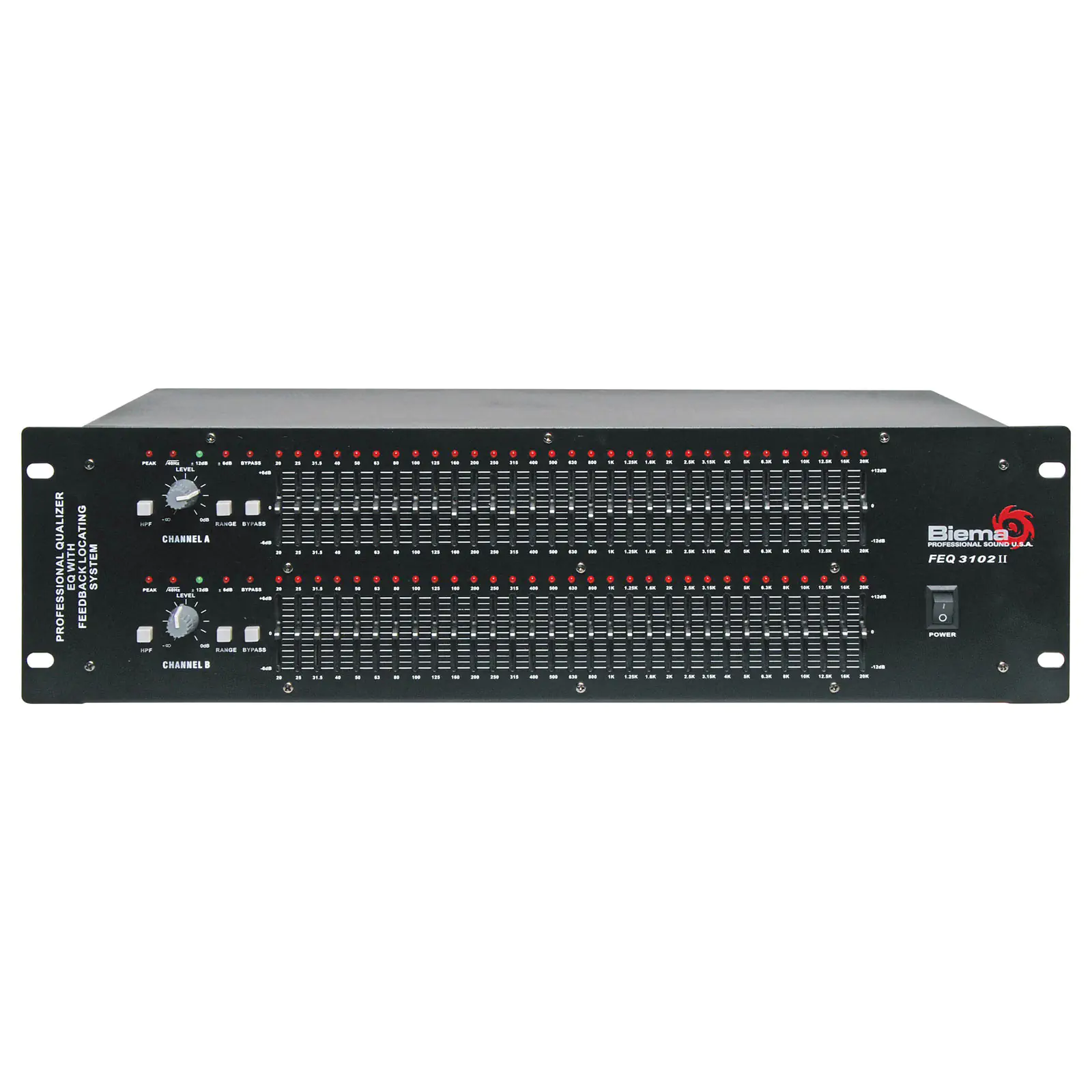

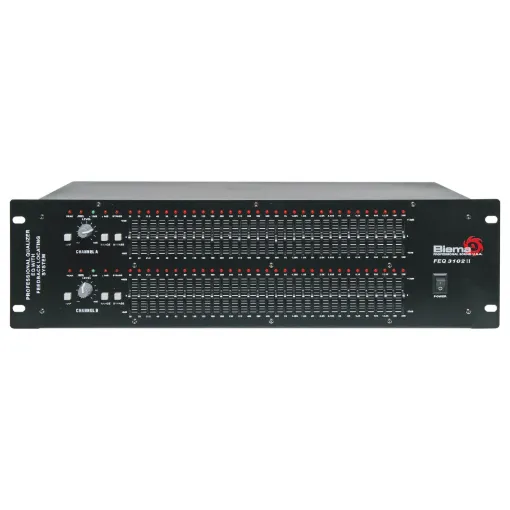

2 Channel 31 Band EQ With Feedback Detection

by: Biema
SKU: A5332
This professional unit delivers outstanding equalisation in live and studio applications.
$499.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $499.09
2+ $453.64
i h

Overview

This professional unit delivers outstanding equalisation both in live and studio applications. Invaluable for counteracting poor room or venue acoustics. The design employs ultra low noise audio amplifiers with high quality components for outstanding sound reproduction. Each channel has 31 frequency bands, each adjustable plus or minus 12dB. It also includes feedback LED indicators for each channel. This allows feedback to be reduced or eliminated by “notching out” ie. reducing the system frequency response at the offending frequency sector. Usually connected between the pre amp out and power input of the sound system amplifier. High pass selectable filter switch provide 12dB per octave below 40Hz. 3 pin XLR and 6.35mm sockets offer balanced connections. A switch is provided to bypass all control settings. Overall output is controlled by the level control.



Features:

  • 19" rack mount
  • 31 bands of adjustment 1/3 octave
  • Ultra low distortion
  • Balanced inputs and outputs
  • ±12dB on each band
  • High pass filter
  • EQ bypass switch
  • Master level control





Specifications:

Input impedance: 20KΩ (bal.)

Maximum input level: ≥16dB

Connections: Balanced XLR, 6.35mm jack

Output impedance: 100Ω

Maximum output level: ≥15dB

Equaliser control 31 band (1/3 octave)

High pass filter: 40Hz 12dB/octave

Feedback threshold LED: ≥-22dB

Peak sensitivity: Lit 3dB before clip point

Frequency response: 20Hz - 20KHz (±0.5dB)

THD + S/N %: <0.1% (20Hz - 20KHz @ 0dB)

S/N ratio: ≥90dB

Power supply: 240VAC

Dimensions: ≈482W x 230D x 132Hmm

Weight: 5.4kg

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instruction Manual
PDF
