Designed to be used in conjunction with the A 6500A programmable touchscreen wallplate, this control hub enables the control of a variety of devices. Connection to the A 6500A wallplate is via Cat5/6 cable up to 50m away. Now with PIR trigger input.

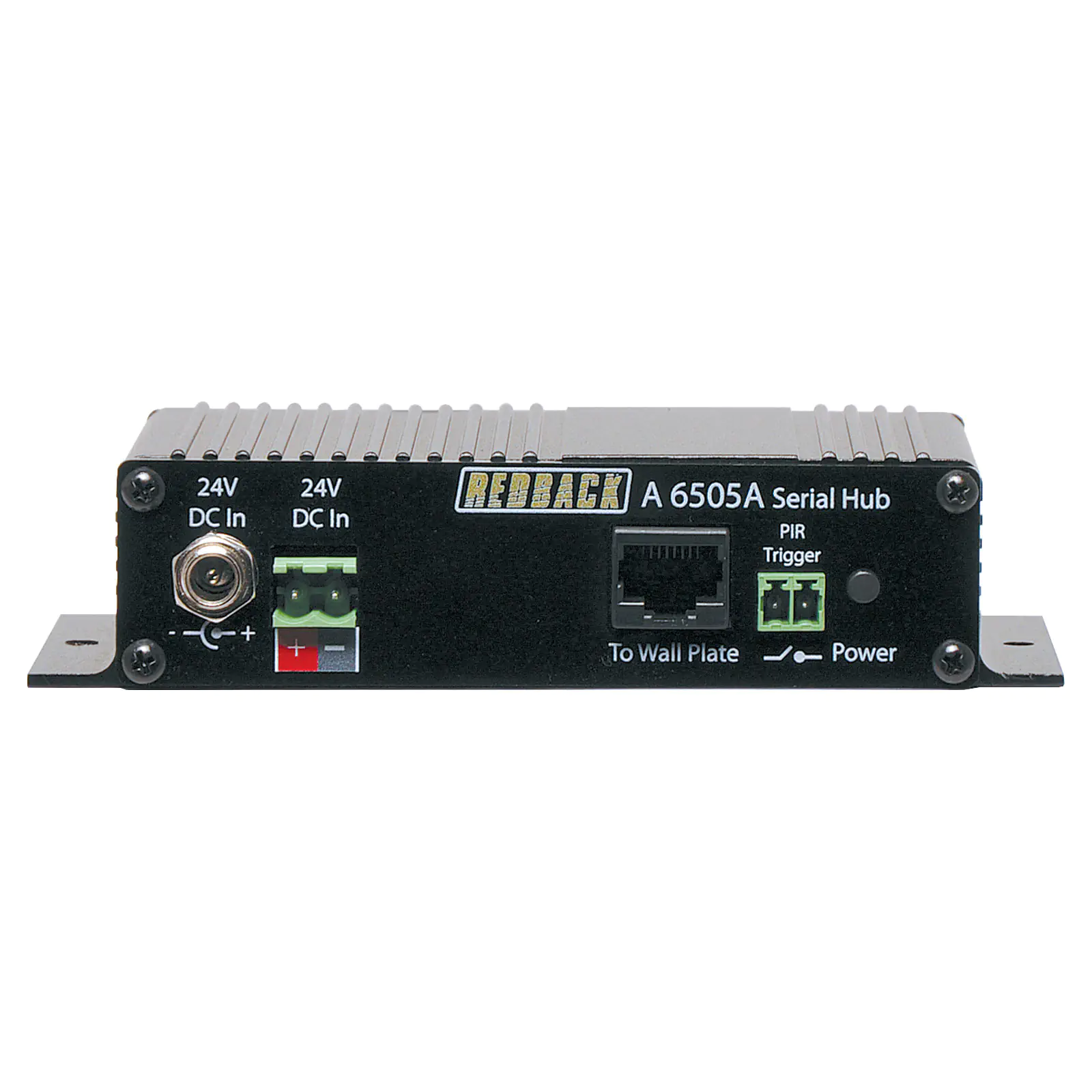

3 Relay, 2 Serial Control Hub With PIR Trigger

Name: 3 Relay, 2 Serial Control Hub With PIR Trigger
SKU: A6505A
Price: 277.27 AUD
Availability: InStock

by: Redback

SKU: A6505A

Designed to be used in conjunction with the A 6500A programmable touchscreen wallplate, this control hub enables the control of a variety of devices. Connection to the A 6500A wallplate is via Cat5/6 cable.

$277.27

All Prices Shown are (ex GST)

Bulk Pricing

ea	$277.27
2+	$250.00
4+	$231.82

i h

Overview
Details
Warranty

Overview

Designed to be used in conjunction with Redback Touch programmable touchscreen wallplates, this control hub enables the control of a variety of devices. Connection to the wallplate is via Cat5/6 cable up to 50m away. All commands from the programmed plate are then transported to this hub and the appropriate command signal being either serial (RS232/485 or both), IR or relay is then output to the corresponding pluggable terminals. Combined with the wallplate this could be used for controlling an AV system in a classroom, lecture theatre, board room etc. The serial outputs could be used to control a projector and amplifier, the IR for controlling a set top box and relays for motorised projector screen, lighting etc. A passive infra red (PIR) detector input allows for motion activation of devices, such as when people enter the room. Requires 24V DC power which in turn powers the wallplate.

Size: 66W x 131W x 29H inc flanges.

Features:

Compatible with Redback Touch control wallplates or third party serial control systems.
Two RS232/485 inputs.
Three relay outputs.
PIR motion detect sensor trigger input.
Infra-red control input.
Wallplate connection via standard UTP cabling.
Powered by 24V DC input (passes power to wallplate – power supply sold separately)
Australian Designed & Manufactured.

Specifications:

Input Connections:

Power connection (24V DC): 2.1mm DC socket, Euroblock terminal

Data: RJ45 8P8C

Output Connectors:

Relay (1-3) Switched Out: Screw Terminals

NOTE: Relays rated for low power, typical 24V DC switching

IR Out: Screw Terminals

Serial Out (RS232 & RS485): Screw Terminals

Mechanical:

Dimensions: 90W x 131D x 30H

Current Draw: 50mA (idle) 150mA (Max)

Weight:0.18kg

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.
