NEW

This series of amplifier combines the popular half rack concept and adds Dante® connectivity for flexible routing and distribution of audio across a commercial PA installation.

240W Public Address (PA) Dante Zone Amplifier

Name: 240W Public Address (PA) Dante Zone Amplifier
SKU: AD4222
Price: 1022.73 AUD
Availability: InStock

by: Redback

SKU: AD4222

This series of amplifier combines the popular half rack concept and adds Dante® connectivity for flexible routing and distribution of audio across a commercial PA installation.

$1,022.73

All Prices Shown are (ex GST)

Bulk Pricing

ea	$1,022.73
3+	$981.82

i h

Overview
Details
Warranty
Downloads

Overview

This series of amplifier combines the popular half rack concept and adds Dante® connectivity for flexible routing and distribution of audio across a commercial PA installation. The half rack size allows installers to mix and match zone amplifiers within 1RU of 19” rack space. This offers flexibility for installers, allowing the installation of zone amps to closely match the requirements of the customer. The ethernet Dante® port on the rear allows signals to be routed to the amplifier seamlessly over IP cabling with interoperability between thousands of Dante equipped digital audio devices.

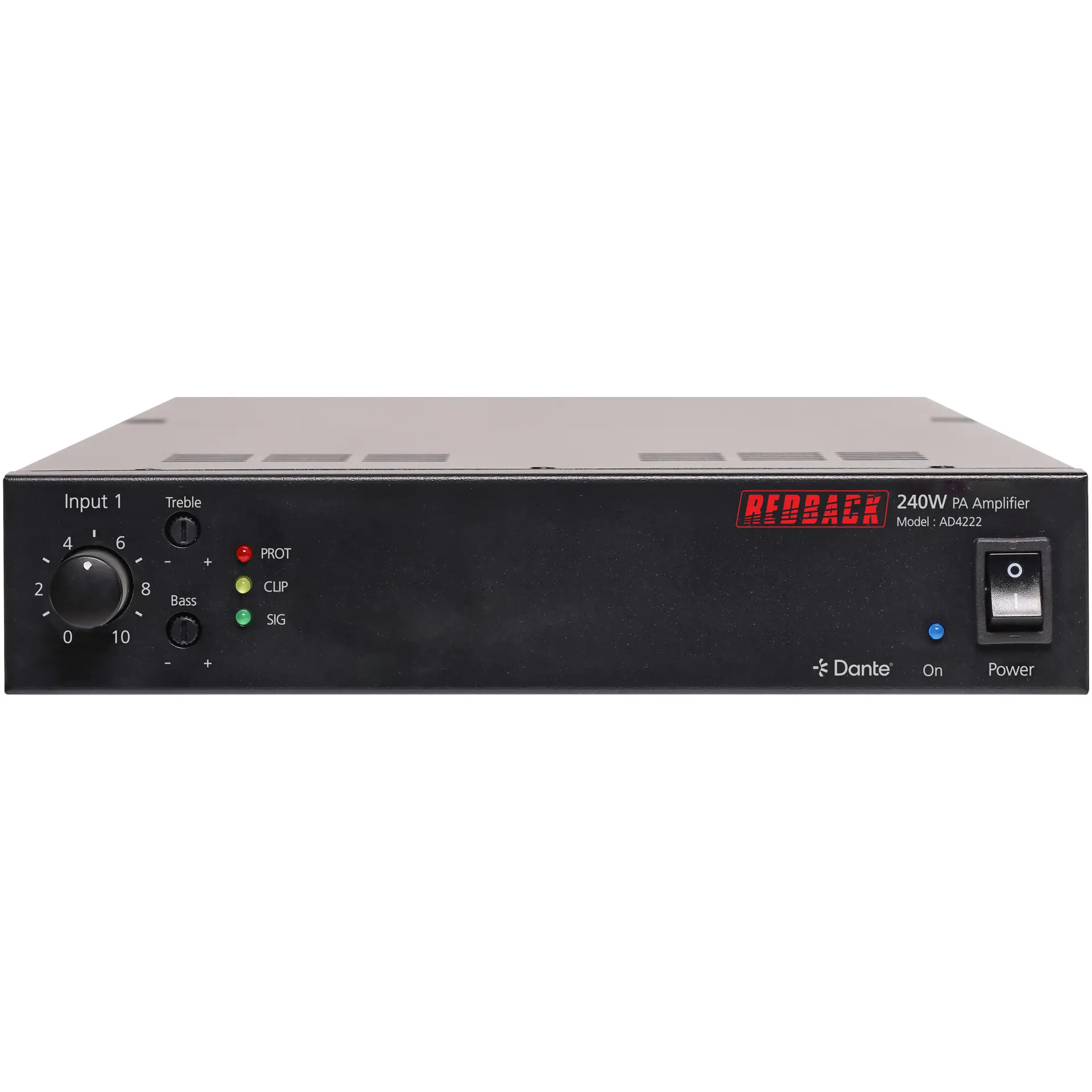

Each amplifier is a Class-D design offering high performance in a compact space, with excellent power efficiency. The front panel offers adjustment for each channel plus bass and treble control. Individual protection, clipping and signal presence indicators are provided for each channel. All outputs are via pluggable euroblock connectors with 100V line and 8Ω outputs available. Inputs are via balanced euroblock pluggable screw terminals and Dante UTP ethernet. A high pass filter switch can be activated on each channel.

For installations using only one amplifier, a mounting bracket adaptor provides an easy way to bolt into a standard 19” racking system.

Features:

Modular design allows for mix and match amplifiers within 1RU rack space
Class-D design with excellent performance and efficiency
Dante® connectivity via UTP
LED indicators for protection mode, clipping condition and signal presence
100V line or 8 ohm output via screw terminals
Balanced line input via 3 pin Euroblock pluggable terminal
Built-in short circuit, overload and high temperature protection
2 year warranty

Specifications:

Rated Power @8Ω: 2x120W

Bridged Power @100V: 240W

Power Consumption: 325W

Network Communication Protocol: Dante

Network Interface: 10/100Base-TX, RJ45

Input sensitivity / Impedance: -0dBu/10kohm Unbalanced / Balanced

Power Supply Voltage: AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz

Speaker Output: 100V / 8Ω

Frequency Response: 80Hz~17KHz (+1dB /-3dB)

S/N Ratio: >80dB (with A-Weight)

T.H.D: <1% (at rated power, 1kHz)

Working Humidity: 90%

Output Channel: 1 channel

Tone Controls: Bass: 100Hz(±10dB), Treble:10KHz(±10dB)

Operating Temperature: 0℃ to 40℃

Dimensions: 215W x 44H x 330Dmm

Weight: 3.3kg

Details

Products specifications

Warranty	2 Years
Professional Audio
Output	100 Volt Line Amplifiers
Type	Power PA Amplifiers
