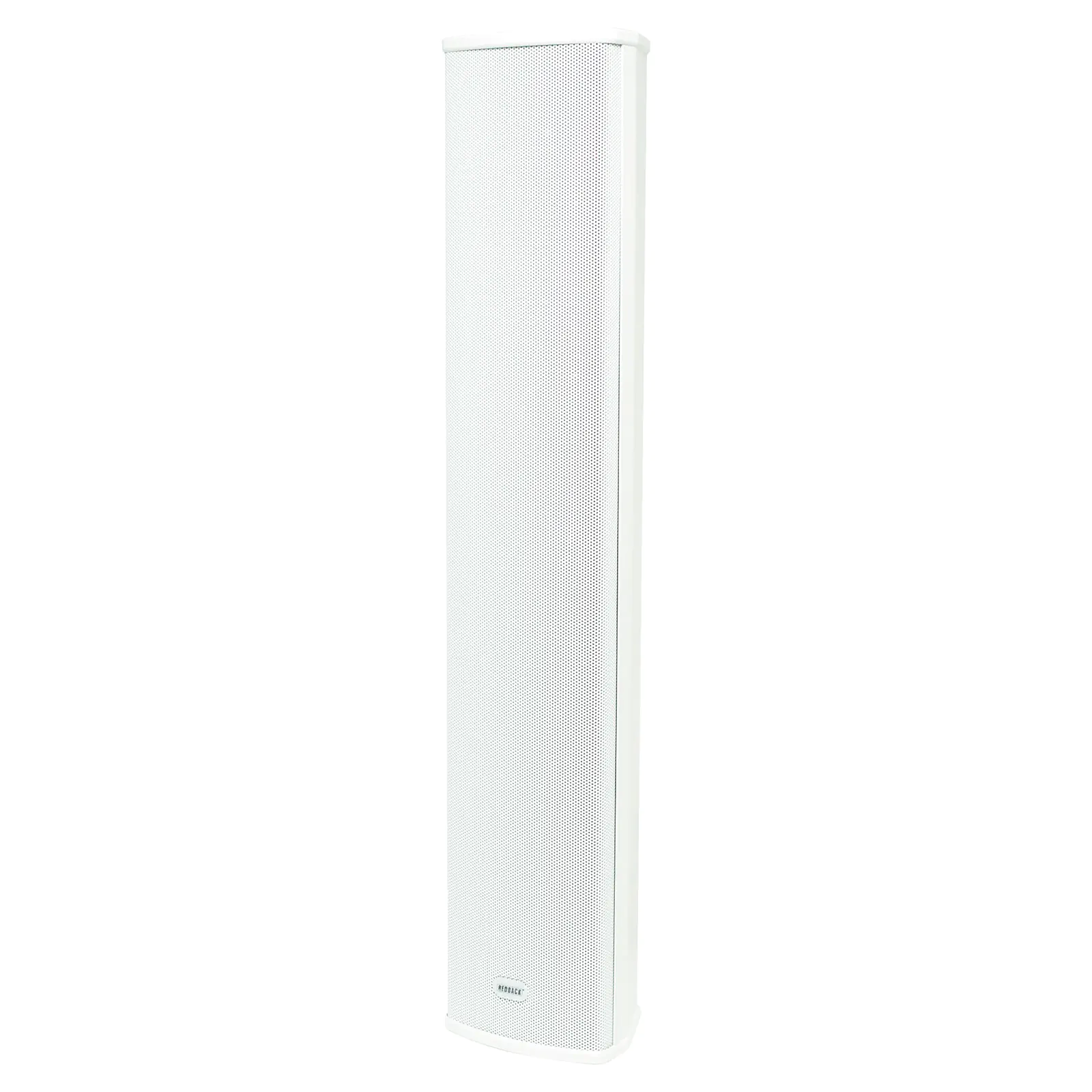

20W 100V Line / 4 Ohm IP66 White Column Speaker

by: Redback
SKU: C0951A
Now fitted with 22uF bipolar capacitor for line monitoring use. These stylish, compact column speakers utilise multiple 3.5" (89mm) woofers and high power dome tweeters to produce superb clarity for both music and speech applications.
$544.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $544.55
3+ $499.09
6+ $453.64
i h

Overview

These stylish, compact 100V line column speakers utilise multiple 3.5” (89mm) woofers and high power dome tweeters to produce superb clarity for both music and speech applications. Ideally suited for use in places of worship, lecture theatres, auditoriums, gymnasiums and school assembly areas. Their IP66 weatherproof construction makes them also suitable for installations in exposed areas, such as train platforms & pedestrian precincts.

The sound columns include a high grade multitap transformer allowing several power taps plus a low impedance setting. Multicore cable is provided for power tap selection (see specifications below).

A heavy duty, diecast aluminium mounting bracket is included. This allows both horizontal and vertical adjustment, ensuring sound is directed where needed.

These Redback column speakers will provide excellent all-round performance while remaining architecturally unobtrusive.

Now fitted with 22uF bipolar capacitor for EWIS line monitoring use



Specifications:

Rated Power: 20W

Speakers: 4 x 88.9mm Woofer / 1 x 82.55mm Tweeter

100V Power Taps: Common (red), 20W (white), 10W (blue), 5W (yellow) and 4Ω/20W (Green-Pos/Brown-Neg)

70V Power Taps: Common (red), 10W (white), 5W (blue), 2.5W (yellow) and 4Ω/20W (Green-Pos/Brown-Neg)

Impedance: 500Ω, 1kΩ, 2kΩ and 4Ω

SPL (1W @ 1m): 92dB

SPL (Max W @ 1m): 105dB

Frequency Range (-10dB): 120Hz - 20KHz

Dispersion 1KHz/4KHz: Hor: 180°/90°, Vert: 45°/20°

Ingress Protection: IEC529 IP66

Power Selection: 6-Core Cable

Housing Material: Extruded Aluminium

Grille Material: Aluminium

Colour/Finish: White

Dimensions: 585L x 114W x 96Dmm

Protection: IP66 Rated

Mounting (included): Aluminium

Weight: 4kg
