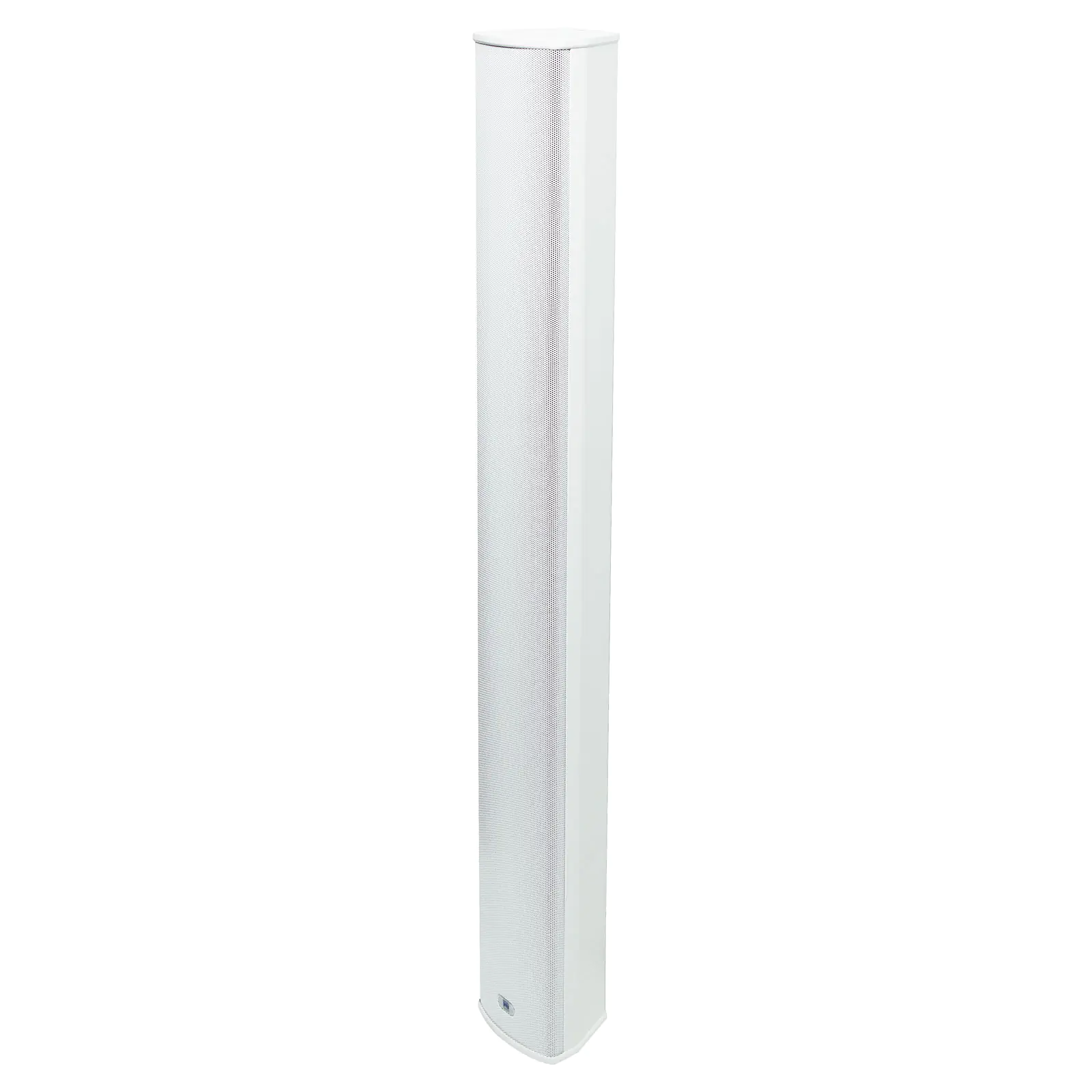

40W 100V Line / 8 Ohm IP66 White Column Speaker

by: Redback
SKU: C0957A
These stylish, compact 100V line column speakers utilise multiple 3.5” (89mm) woofers and high power dome tweeters to produce superb clarity for both music and speech applications.
$908.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $908.18
3+ $840.91
6+ $771.82
i h

Overview

These stylish, compact 100V line column speakers utilise multiple 3.5” (89mm) woofers and high power dome tweeters to produce superb clarity for both music and speech applications. Ideally suited for use in places of worship, lecture theatres, auditoriums, gymnasiums and school assembly areas. Their IP66 weatherproof construction makes them also suitable for installations in exposed areas, such as train platforms & pedestrian precincts.

The sound columns include a high grade multitap transformer allowing several power taps plus a low impedance setting. These are screwdriver selected from the rear panel (see specifications below for power tap details).

A heavy duty, diecast aluminium mounting bracket is included. This allows both horizontal and vertical adjustment, ensuring sound is directed where needed.

These Redback column speakers will provide excellent all-round performance while remaining architecturally unobtrusive.

Now fitted with 22uF bipolar capacitor for EWIS line monitoring use



Features:

  • Durable extruded aluminium housing.
  • 22uf bipolar line monitoring capacitor
  • Attractive slimline construction.
  • Fitted with high specification drivers for exceptional speech & music reproduction.
  • Suitable for accurate, “long throw” applications.
  • Water protected to IEC529 IP66, suitable for indoor and outdoor use.
  • Durable aluminium alloy multi bracket (tested up to 1500 kgf).





Specifications:

Rated Power: 40W
Number of Loudspeakers: 8x 3.5" Woofer  + 1x 3.25" Tweeter
Power Taps @100V: 40W, 20W, 10W
Power Taps @70V: 20W, 10W, 5W
SPL (1W/1m): 93dB
Max. SPL (Rated W/1m): 109dB
Frequency Range (-10dB): 110Hz ~ 20kHz
Dispersion 1kHz / 4kHz:  Hor: 180°/90°, Vert: 30°/20°
Operating Temperature: -40°C ~ +60°C
Ingress Protection: IEC 529 IP66
Power Selection: 6 Core Cable
Material:
Housing: Extruded Aluminium
Grille: Aluminium
Colour: White
Mounting: Aluminium Alloy Multi Bracket
Net Weight (ea): 7.70kg
Dimensions: 960.0L x 114.0W x 96.0D mm

Details

Products specifications

Warranty 12 Months
Speakers
Input 100V Line Wall Speakers, 8 Ohm Wall Speakers

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
