NEW

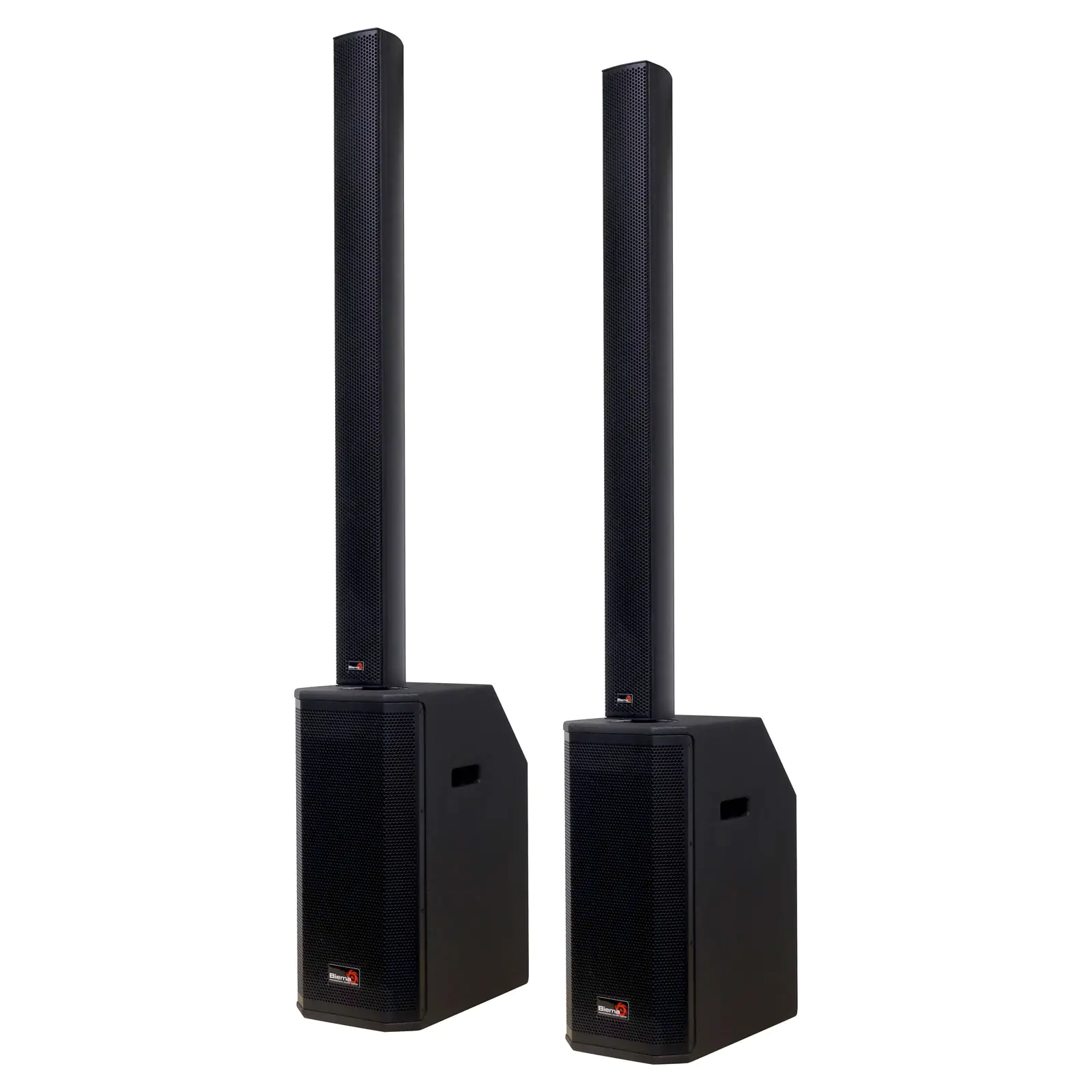

1200W PA Column Speaker with Subwoofer Pair

by: Biema
SKU: C1035
This 1200W PA column speaker system is a plug and play active speaker system ideal for small live shows, small parties, bands, musicians or anywhere foreground sound reinforcement is required.
$2,544.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $2,544.55
i h

Overview

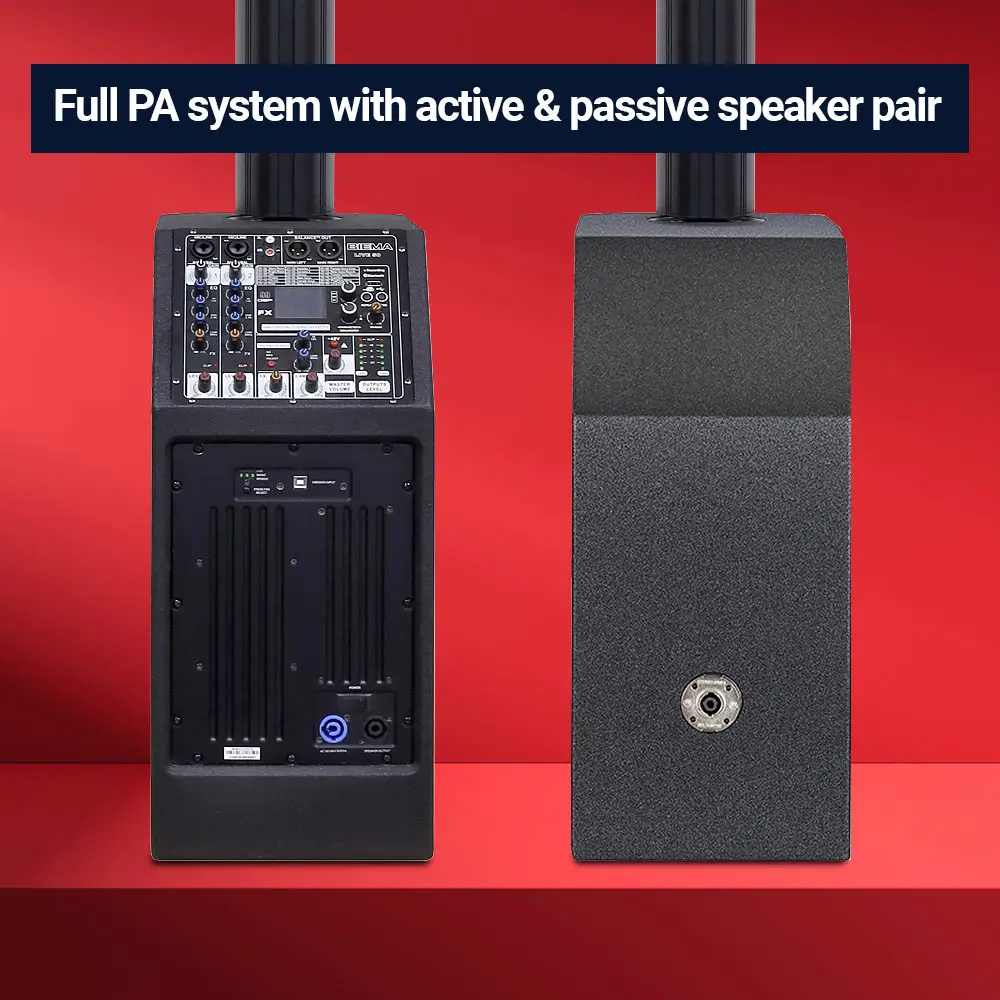

This 1200W PA column speaker system is a plug and play active speaker system ideal for live shows, parties, bands, musicians or anywhere foreground sound reinforcement is required.  The system reproduces accurate and natural sound in various environments. Each system is supplied with an active dual 8" subwoofer unit, passive subwoofer unit and two column speakers which fit into the recessed top hat connection on the top of the subwoofer. This creates a low visual profile, allowing patrons easy viewing while still providing plenty of volume for most small to medium venues.

It offers a high power, active speaker system paired with advanced digital signal processing and integrated mixer for simple connections on the go - no amplifiers or cables to run, just connect your sources and switch it on. Once the gig has finished its easy to pack away with in-built case handles for carrying.



Features:

  • Speaker column is housed in an aluminum alloy cabinet for added durability.

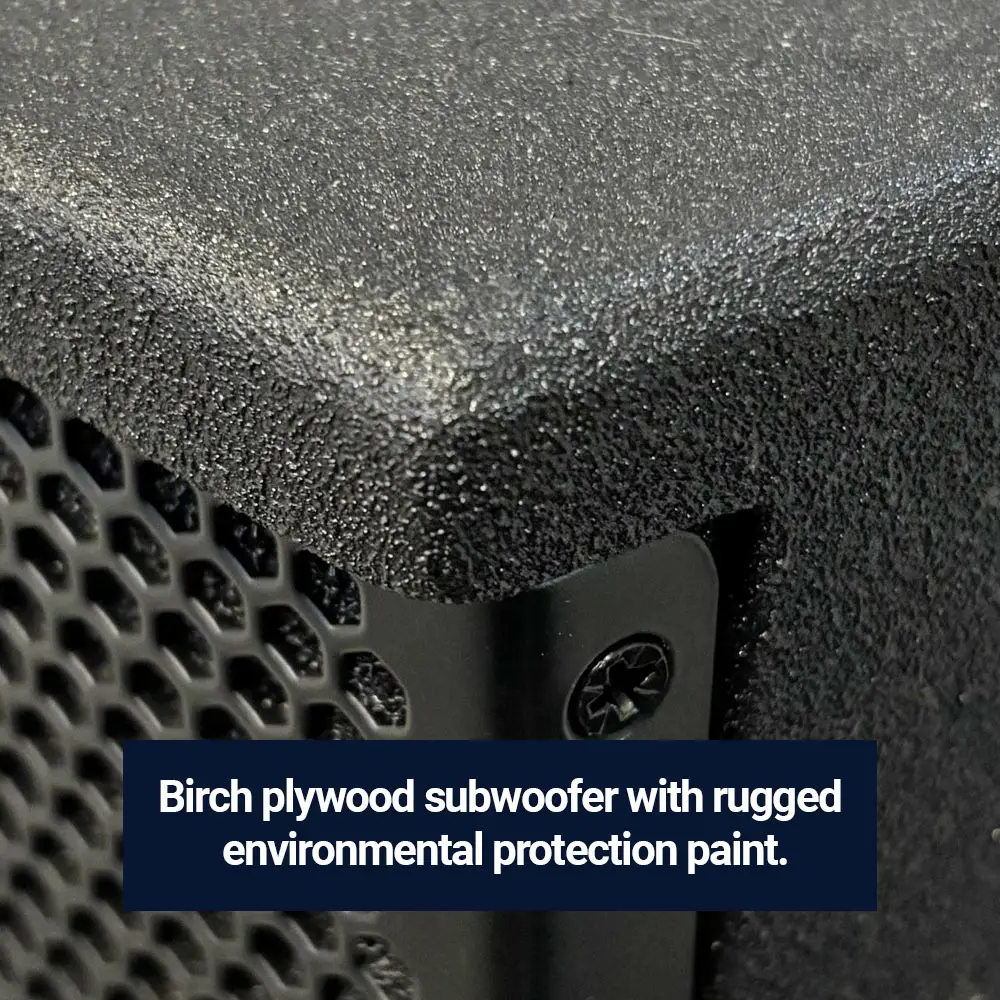

  • Subwoofer is made of a high-quality birch plywood sprayed with black environmental protection paint for the rough and tumble of hire use.
  • Dual 8" woofers in each subwoofer unit (total 4 drivers)

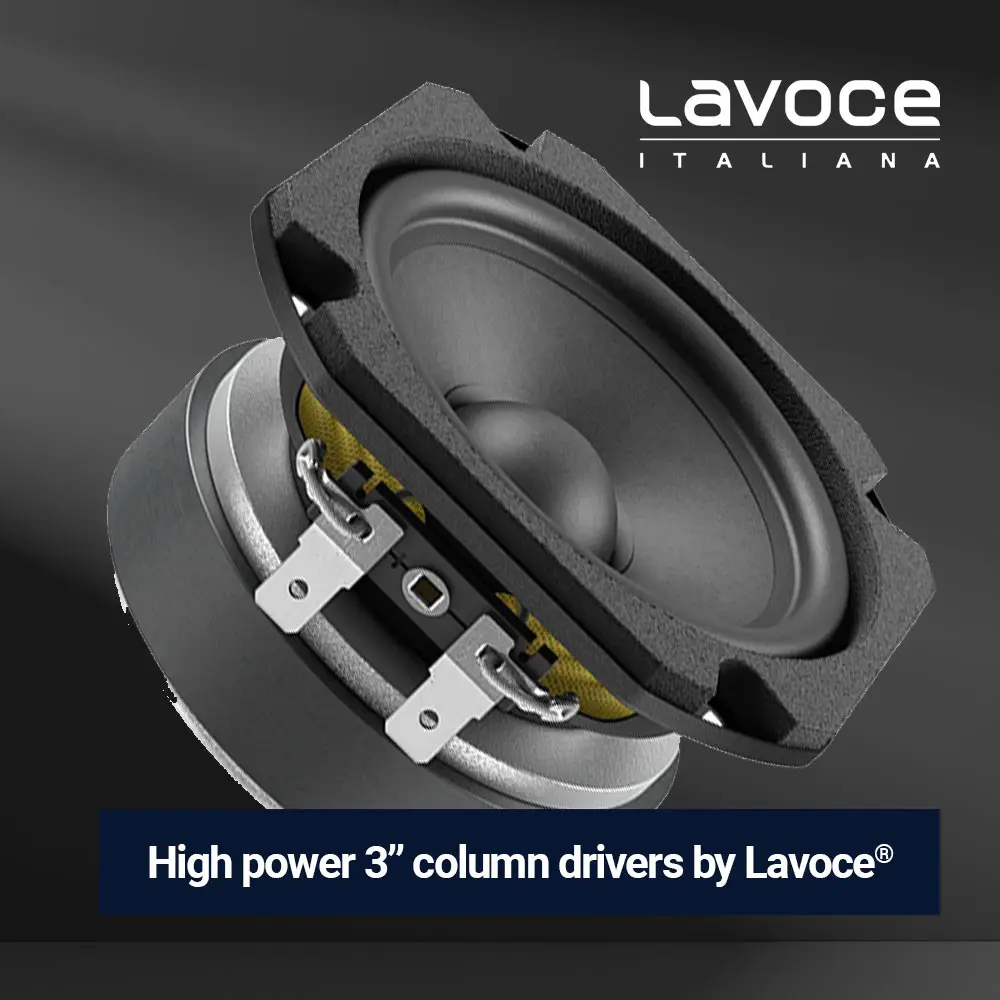

  • Column features multiple Italian designed Lavoce® 3" high power drivers.
  • High power four channel class D power amplifier module.
  • 2 channel inputs via 3 pin XLR/6.35mm balanced/unbalanced combination sockets.
  • Dual balanced 3 pin XLR outputs.
  • Built-in bluetooth module for streaming from your favourite devices.
  • Speaker pole connects easily to the subwoofer and can be adjusted to change sound dispersion.

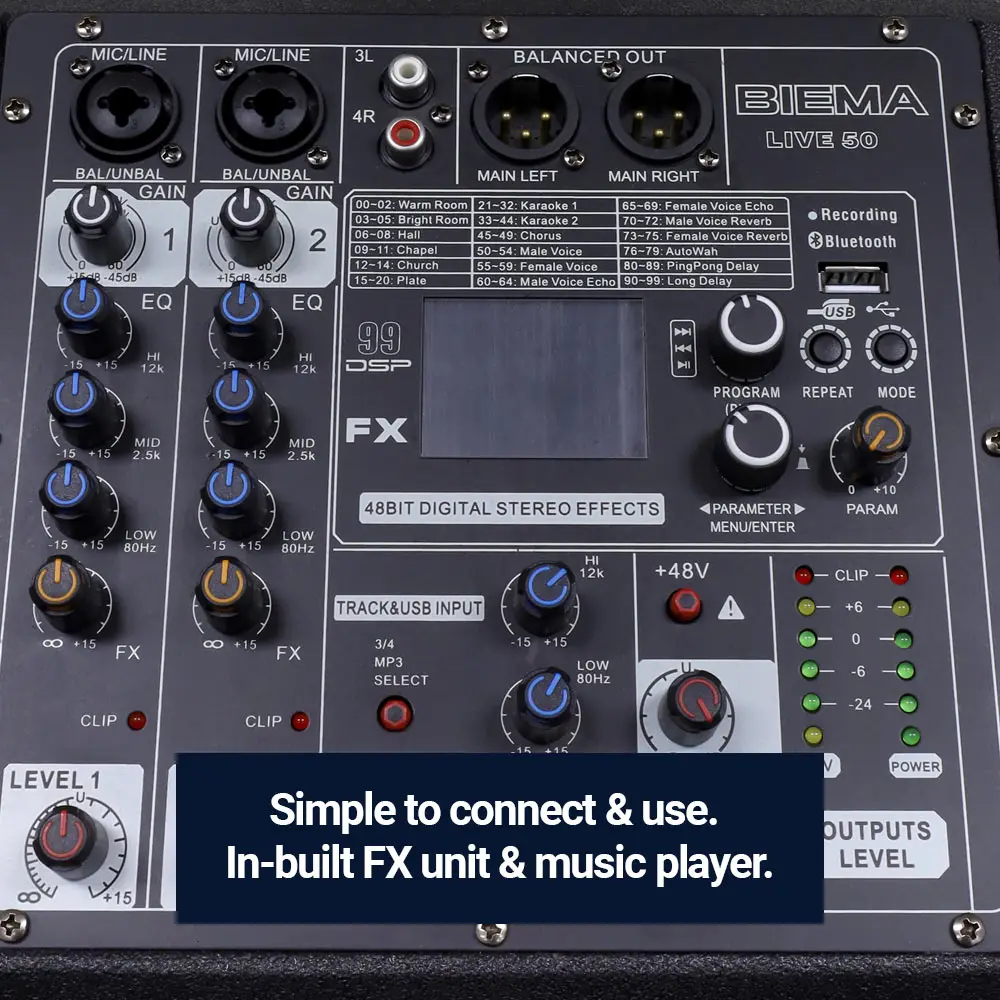

  • Built in DSP processor allows multiple presets to be stored and recalled.
  • Built in effect processing.
  • All functions are integrated into one system, which is easy to operate and quick to start.





Specifications:



Amplifier:

Type: 2 in 4 out 4 channel amplifier with DSP

Power: Full range channels 2 x 200W / 4 ohms. Subwoofer channels 2 x 400W / 4ohms

Amplifier input sensitivity ( @ 8 ohms ): 1.04V/2.56dBu

DSP input sensitivity ( @ 8 ohms ): 1.96V/8.06dBu

Input impedance: 20K ohms balanced

Slew rate: 50V/us @ 8 ohms, input filter bypassed

Damping factor: >500@1KHz

Frequency response: 20 -20KHz (±0.5dB) @ 1W, 8 ohms

Background noise: -80dBV (20 -20KHz, A weighted)

S/N ratio: >110 dB (20 -20KHz, A weighted)

List all isolation: >80dB @1KHz

THD +N: <0.08% from 1W to half power (typically <0.05%)

IMD: <0.2% from 1W to half power (typically <0.05%)



Column Speaker:

Frequency response: 100Hz-18KHz

Coverage: (Nominal -6 dB):  H120° V20°

Impedance: 4 ohm

Rated power: 2 x 200W

Sensitivity: 96dB(1W/1m)

Max SPL: 123dB

Dimensions: 1035 x 95 x 108mm

Weight: 8.0kg



Subwoofer:

Frequency response: 40Hz-250Hz

Drivers:  8“ x 2 (per subwoofer unit)

Impedance: 4 ohm

Rated power: 2 x 400W

Sensitivity: 99dB (1W/1m)

Max SPL: 126dB

Processor: Controller DSP 56 bit

AD/DA Converter: 24 bit/48 kHz

System Presets: Music Live Monitor

Protection: Opto-limiter, subsonic filter

Power supply: 100 - 240 V AC, 50 - 60 Hz,

Mains connector: Powercon

Dimensions: 240 x 530 x 400mm

Weight: 14.3kg
