NEW

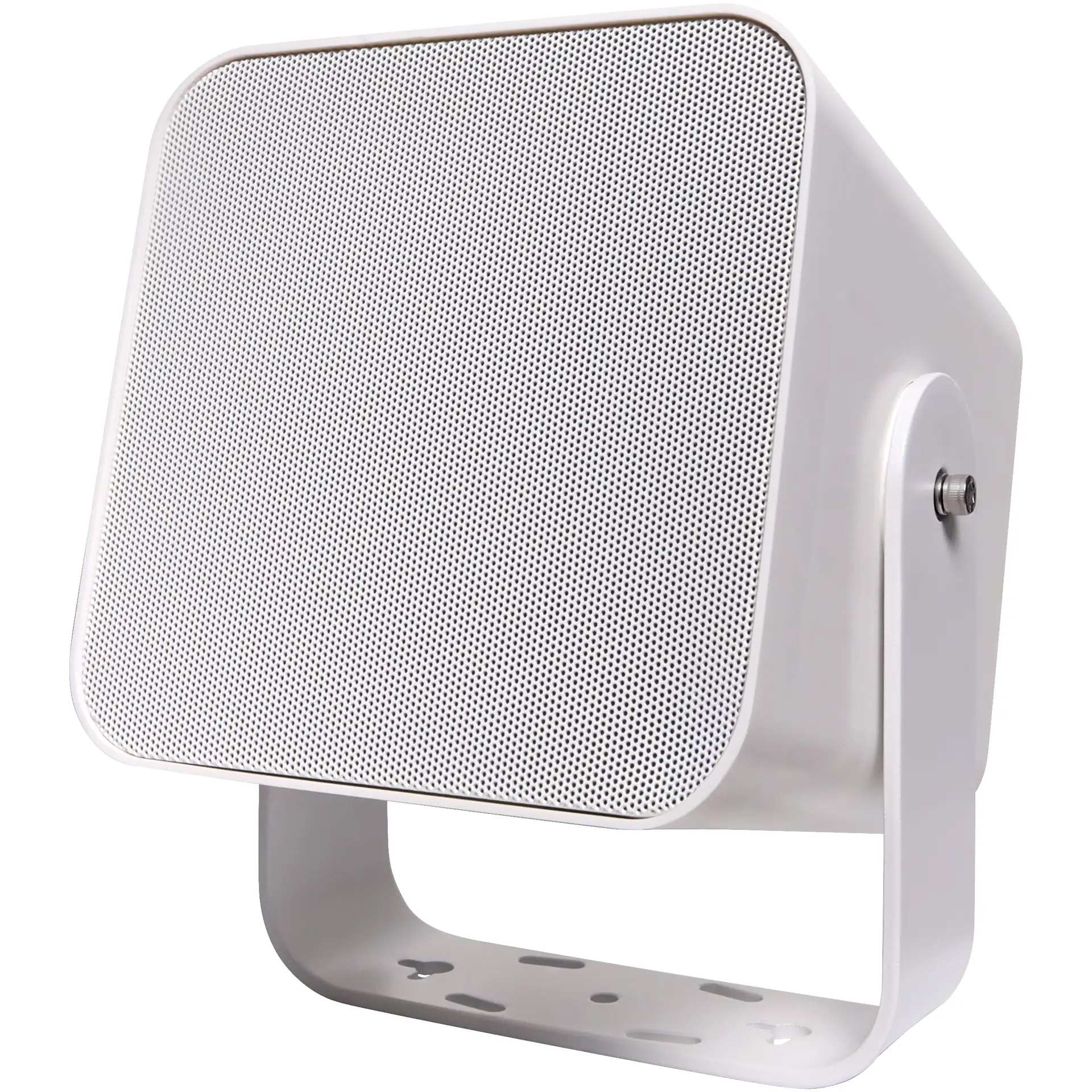

60W IP55 100V / 8 Ohm White PA Speaker

by: Redback
SKU: C1068
This all weather long throw PA speaker is a compact yet powerful two-way speaker designed for both indoor and outdoor use, featuring a sturdy bracket mount and a sleek ABS enclosure.
$271.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $271.82
4+ $250.00
6+ $231.82
i h

Overview

This all weather long throw PA speaker is a compact yet powerful two-way speaker, designed for clear, powerful audio in indoor and outdoor environments. With a wide 40Hz–20kHz frequency response, 60W RMS power handling (240W peak), and a sensitivity of 90dB, it delivers impressive sound for both music and speech. It offers the flexibility of 8 ohm or 100V line connection with a total power handling up to 60W and max 100V power tap of 60W.

Featuring a 5.25" low frequency driver and 1" high frequency driver, it achieves a maximum SPL of 110dB (120dB peak). The durable ABS enclosure and aluminium grille are IP55-rated for weather resistance, making it suitable for indoor or outdoor installations. Includes an aluminium bracket for versatile mounting, and connects via a 4-pin Euro terminal block.

Features

  • Compact high performance 100V line outdoor speaker.
  • Stylish low profile design for outdoor BGM and paging.
  • Durable construction with ABS cabinet and aluminium grille/bracket.
  • Full range of sound through 2-way driver - fantastic speech inteligibility and music performance.
  • Long throw speaker system with maximum SPL at 120dB peak.
  • IP55 moisture and dust protection rating.



Specifications

Drivers: 1 × 5.25" (135 mm) / 1" voice coil LF, 1 × 1" (25 mm) / 0.8" voice coil HF
Power taps: 60W/30W/15W
Rated Power: 60W RMS, 240W peak
Frequency Response (-3dB): 40Hz – 20kHz
Sensitivity: 90 ± 3dB (1W / 1m)
Maximum SPL: 110dB, 120dB peak
Impedance: 8Ω nominal
Crossover Frequencies: 2.5kHz passive
Material: ABS
Colour: White
Size: 180 × 180 × 191mm
Grille Material: Aluminium
Bracket Material: Aluminium
IP Level: IP55
Input Connectors: 4-pin Euro terminal block
Weight: 2.69kg

Details

Products specifications

Warranty 12 Months
Speakers
Input 100V Line Wall Speakers, 8 Ohm Wall Speakers

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Datasheet
PDF
