20W 100V IP65 Sound Projector PA Speaker

by: Redback
SKU: C1520

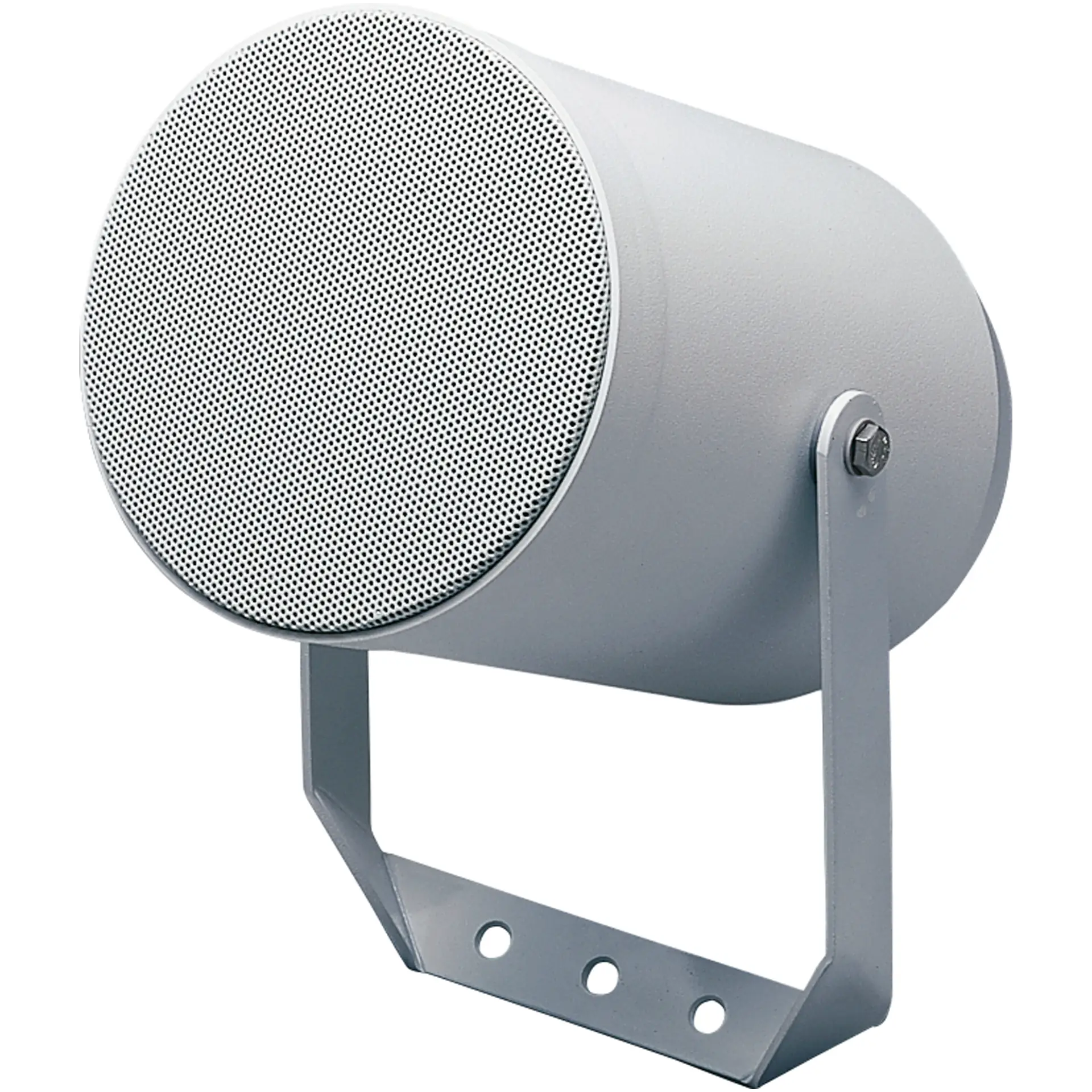

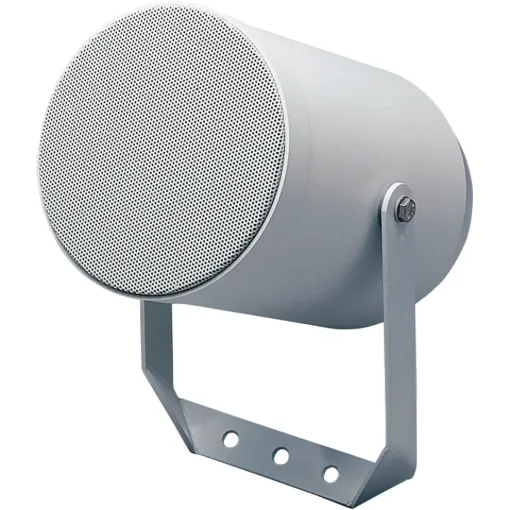

The REDBACK PA sound projector speaker is made from strong UV stabilised ABS plastic with a perforated metal grill. It is designed for use in 100V line distributed systems. Sound projectors offer a wide dynamic range making them ideal for both paging and background music applications.
$153.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $153.64
2+ $140.91
i h

Overview

This Redback 100V line PA sound projector is made from strong UV stabilised ABS plastic with a perforated metal grill. It is fitted with a PA transformer with multi-tap selections and is designed for use in 100V line distributed systems. Sound projectors offer a wide dynamic range making them ideal for both paging and background music applications. Typical applications include sport stadiums, train station platforms, shopping centres, aquatic arenas, etc.



Features:

  • Tough UV stabilised high impact ABS construction
  • Durable powdercoated aluminium mounting bracket
  • Stainless steel grille & fixings
  • Exceptional music and speech reproduction
  • Selectable power taps
  • Uses a high efficiency driver and line transformer
  • Suitable for indoor or outdoor use
  • Includes 5-core cable for easy power tap selection
  • Fitted with supervisory capacitor for line monitoring.



Specifications:

Rated power: 20W

Tappings 100V line: 20/10/5/2.5W

Transformer Impedance: 500/1k/2k/4k Ohms 100V

Tappings 70.7V Line: 10/5/2.5/1.25W

Driver Impedance: 8 Ohms

Effective Frequency range: 110-18,000 Hz (BSEN60268-5)

S.P.L @1m, 1W, dB, Test Signal Bandwidth 100Hz-10kHz: 91

S.P.L @ Full Power, Octave Bandwidth: 104 dB

Acoustic Power (dB-PWL @1W) 1k/2kHz): 89/90 dB

Dispersion at 1k/2k Hz: 180/120°

Directivity Axial Q factor, 1k/2kHz: 2.6/5.6

IP Rating: 66

Max/Min Ambient Temp: 70°/-25°

Dimensions, front & depth: 138Ø x 204D mm

Net Weight: 1.6kg

Colour/Finish: White

Material: ABS Plastic with UV inhibitor and stainless steel hardware

Mounting: Aluminium U bracket





10 year warranty

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.
