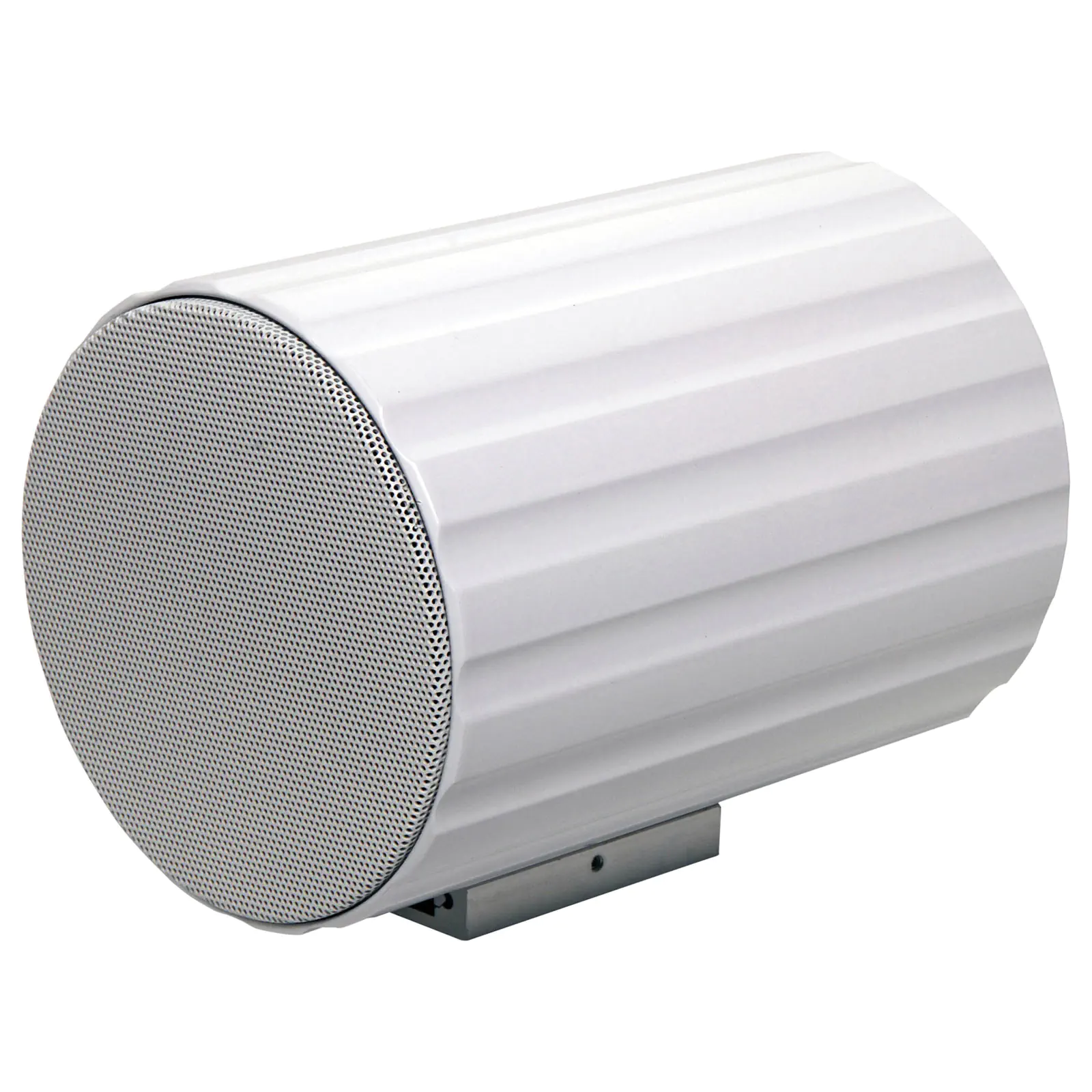

20W 100V IP65 EWIS Bi-Directional Sound Projector PA Speaker

by: Redback
SKU: C1522
This bi-directional PA speaker is manufactured from a heavy duty aluminium extrusion. It is fitted with two high efficiency 5" speaker drivers offering exceptional speech intelligibility. Housing grille are finished in industrial grade white powdercoat.
$204.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $204.55
2+ $190.00
i h

Overview

This bi-directional sound projector speaker is fitted with a 100V line PA transformer and is manufactured from a heavy duty aluminium extrusion. It is fitted with two high efficiency 5” speaker drivers offering exceptional speech intelligibility. Housing & grille are finished in industrial grade white powdercoat, while each speaker cone is treated to withstand moisture. A low profile aluminium mounting bracket is fitted to the housing. Applications include train stations, airports, carparks, schools, office corridors etc. Fitted with 22μF capacitor for line monitoring.



Features:

  • Extruded aluminium enclosure with industrial powdercoating.
  • Dual 10 watt weather resistant twin cone drivers.
  • IP65 ingress protection rated
  • Aluminium grille & bracket
  • Exceptional music and speech reproduction
  • Selectable power taps
  • Uses a high efficiency driver and line transformer
  • Suitable for indoor or outdoor use
  • Includes 5-core cable for easy power tap selection
  • Fitted with supervisory capacitor for line monitoring.





Specifications:

Power taps: 2.5, 5, 10 & 20W

SPL 1W @ 1m: 92dB

Frequency response: 120Hz - 18kHz

Dimensions: 140Ø x 200D

Weight: ≈3.1kg





10 year warranty

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty 5 Years
Speakers
Type 100V Line Horn Speaker

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
