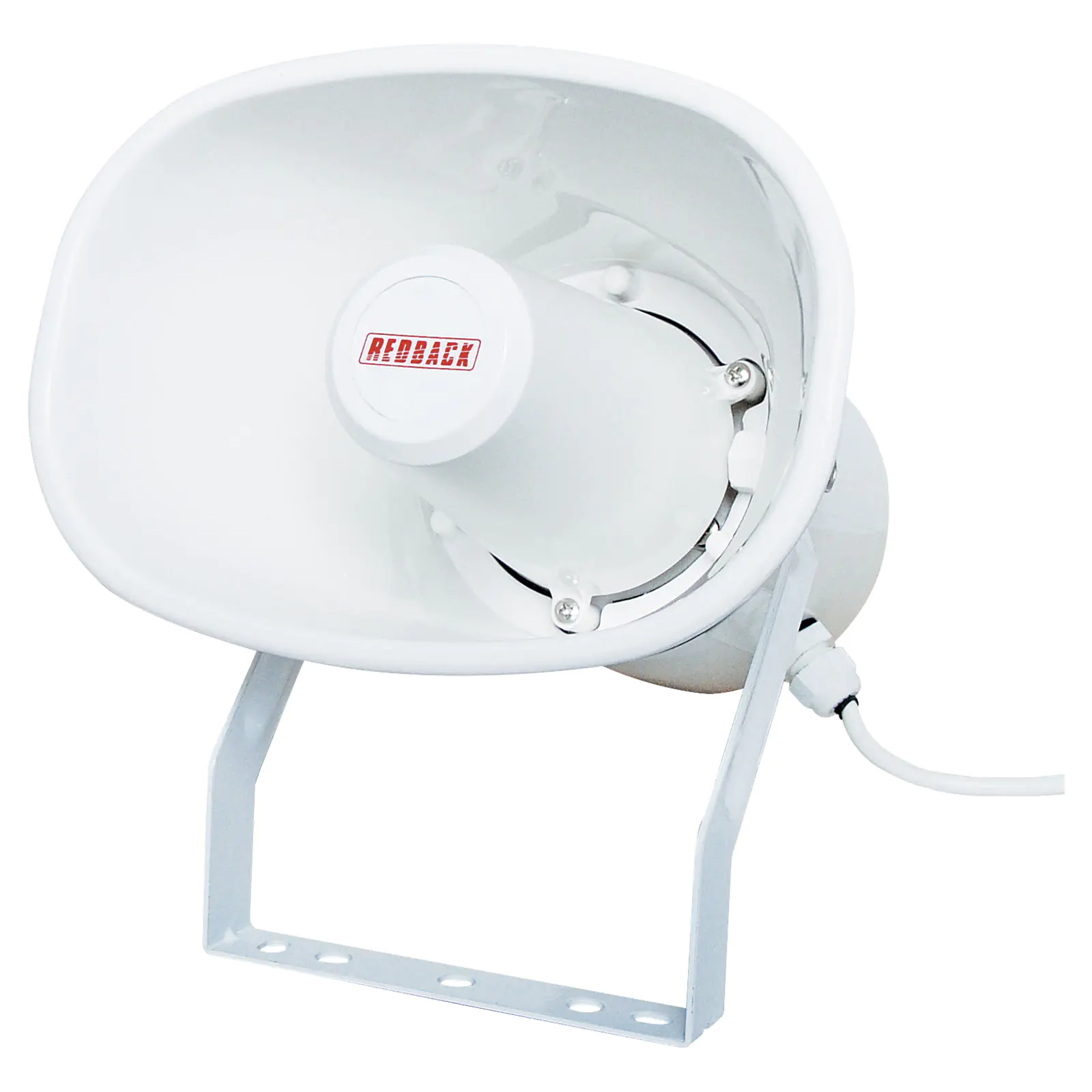

10W 100V EWIS IP66 White Plastic PA Horn Speaker

by: Redback
SKU: C2051
Exclusive design incorporates a dog leg mounting bracket which eliminates the need to separate the horn from the bracket during installation. A real time & money saver! Traditional horn speaker brackets have to be removed, screwed to the wall surface, and then bolted back onto the horn speaker.
$64.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $64.77
4+ $58.64
10+ $52.27
i h

Overview

Exclusive design incorporates a dog leg mounting bracket which eliminates the need to separate the horn from the bracket during installation.

A real time & money saver! Traditional horn speaker brackets have to be removed, screwed to the wall surface, and then bolted back onto the horn speaker. The ‘dog leg’ bracket on these units eliminates all of that labour, allowing enough clearance to fit a drill under the horn speaker body. Primarily used for distributed paging systems where a high degree of speech intelligibility and program clarity is paramount.

Typical applications include schools, train and bus stations, airports, car parks and plant rooms. Power taps selectable via rear switch. Fitted with 22uf bipolar isolation capacitor to permit line monitoring function when employed with EWIS installations. A four core loop through lead is provided. Fitted with nickel plated chrome hardware.

Features:

  • Exclusive bracket design for fast installation
  • Weather resistant
  • UV stabilised ABS construction for long life, even in full sun
  • Superb speech & music reproduction
  • Excellent sound dispersion & response
  • EWIS line monitoring system compatible
  • 5 year warranty





Specifications:

Power taps: 1.25, 2.5, 5, 7.5, 10W

SPL 1W @ 1m: 104dB @ 1kHz (+/- 2dB)

SPL Max Tap @ 1m: 114dB @ 1kHz (+/- 2dB)

Frequency response: 340Hz-10kHz

Connection: 4 core fly lead

EWIS line monitoring: 22uF bipolar capacitor fitted

Dispersion angle @ 1kHz: 160° vertical, 130° horizontal

Driver construction: Aluminium voice coil former

Mounting depth: 255mm

Overall weight: 1.2kg

Operating temperature: -20°C to +55°C

Relative humidity: < 95%





10 year warranty

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty 5 Years
Speakers
Type 100V Line Horn Speaker

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
