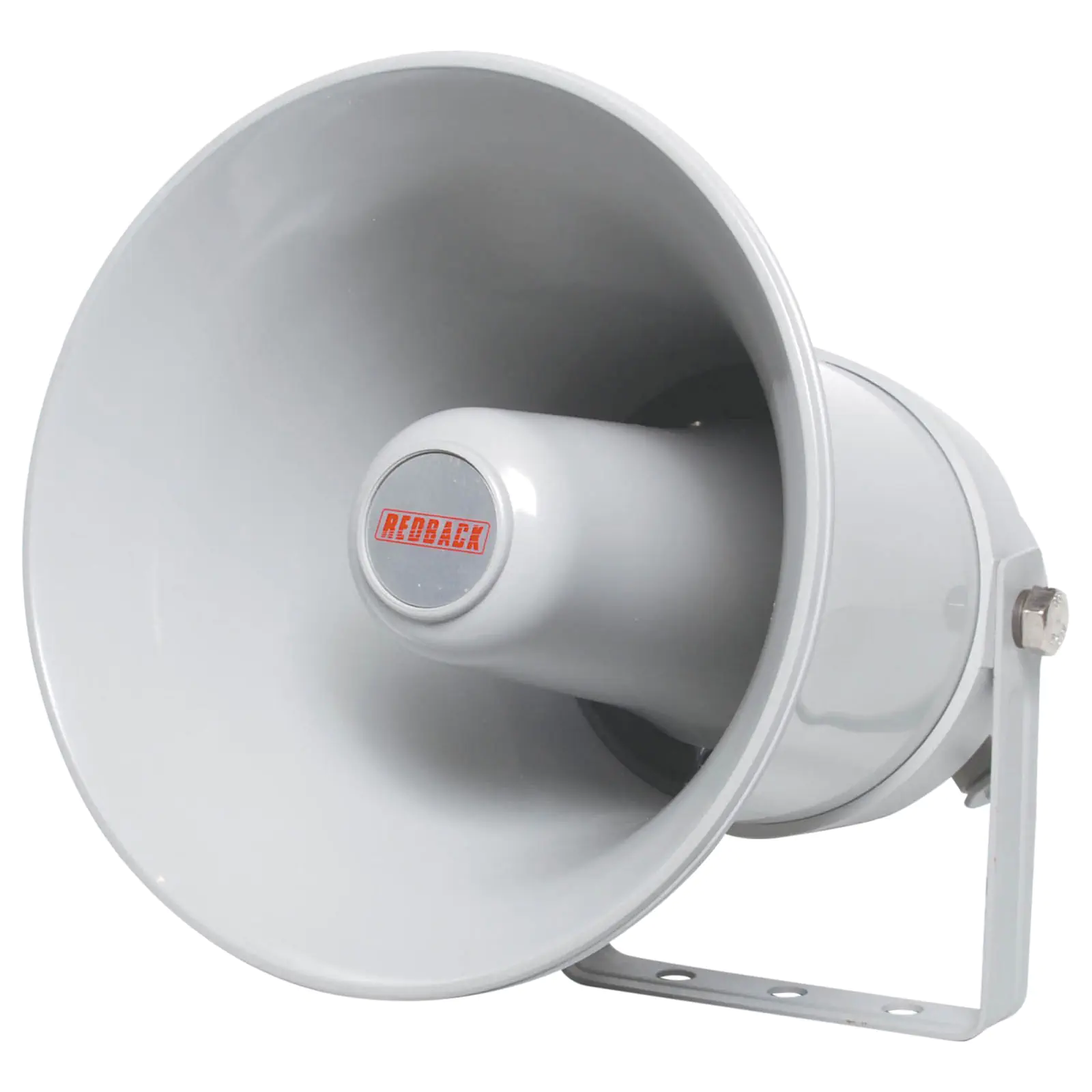

30W 100V EWIS IP66 Plastic PA Horn Speaker

by: Redback
SKU: C2057
The REDBACK 30W plastic PA horn speaker is designed primarily for distributed paging systems where a high degree of speech articulation and program clarity is paramount. Ideal for paging and general public address requirements. High power 30 watt model.
$109.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $109.09
4+ $100.00
10+ $95.45
i h

Overview

Primarily used for distributed paging systems where a high degree of speech articulation and program clarity is paramount. Typical applications include schools, train and bus stations, airports, car parks and plant rooms, factories, industrial estates. Power taps selectable via rear switch. Fitted with 22uf bipolar isolation capacitor to permit line monitoring function when employed with EWIS installations. A four core loop through lead is provided.



Features:

  • Weather resistant
  • UV stabilised plastic for long life even full sun
  • Superb speech reproduction
  • Excellent frequency response
  • Emergency PA and EWIS compatible





Specifications:

Power taps: 5, 10, 15, 20, 25, 30W

SPL 1W@1m: 108dB

SPL Max Tap @1m: 123dB

Frequency response: 275Hz - 10kHz

Dispersion angle: 70°

Dimensions (mm): ≈212Ø x 285

Weight: ≈2.2kg





10 year warranty

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty 5 Years
Speakers
Type 100V Line Horn Speaker

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
