Reflex horn speakers are ideally suited for open air paging applications where speech clarity is of prime importance. Typical uses include fairs, sporting venues, auctions, fetes etc. Constructed from spun aluminium, the massive 540mm flare is designe

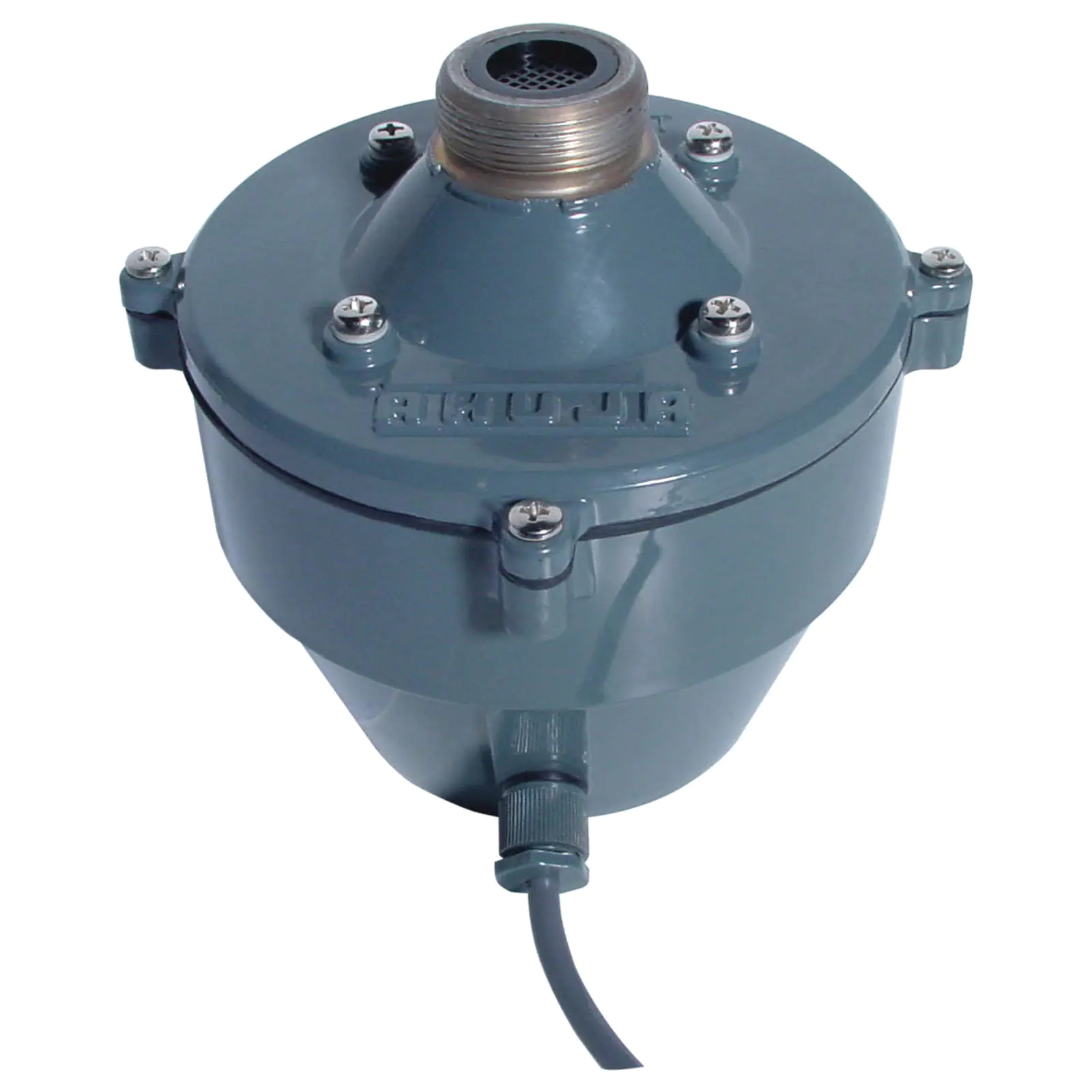

60W 100V Horn Driver Unit

Name: 60W 100V Horn Driver Unit
SKU: C2064
Price: 154.55 AUD
Availability: InStock

by: Redback

SKU: C2064

Reflex horn speakers are ideally suited for open air paging applications where speech clarity is of prime importance. Typical uses include fairs, sporting venues, auctions, fetes etc.

$154.55

All Prices Shown are (ex GST)

Bulk Pricing

ea	$154.55
2+	$135.45
4+	$122.73

i h

Overview
Details
Warranty

Overview

Reflex horn speakers are ideally suited for open air paging applications where speech clarity is of prime importance. Typical uses include fairs, sporting venues, auctions, fetes etc. Constructed from spun aluminium, the massive 540mm flare is designed to be fitted with a compression driver. Rated to IP66 and supplied with stainless steel mounting bracket & fixings, making it suitable for permanent outdoor installations.

Features:

Weatherproof and rugged construction.
High SPL, crisp penetrating sound.
Voice coils precision-wound on an aluminium bobbin for efficient heat dissipation.
Built-in 100V transformer with easily selectable power taps/impedance by changing the position of the rotary switch at the rear.
Degree of protection IP 66 provided, when mounted on a reflex horn, against foreign particles such as dust and jets of water thus making them ideal for outdoor use.

Specifications:

Power taps: 10, 20, 30, 40, 50 & 60W

Frequency response: 160Hz - 7kHz

Impedance: On 100V Line 165Ω/60W, 200Ω/50W, 250Ω/40W, 330Ω/30W 500Ω/20W, 1kΩ/10W

SPL at 1kHz(dB): 113.5(1W/1m)

Maximum SPL at 1kHz (dB): 132(60W/1m)

Throat coupling: 1-3/8" 18TPI Throat couple No.1

Dimensions: Ø125 x 100mm

Weight: 2.92kg

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty	5 Years
Speakers
Type	8 Ohm Horn Speaker

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
