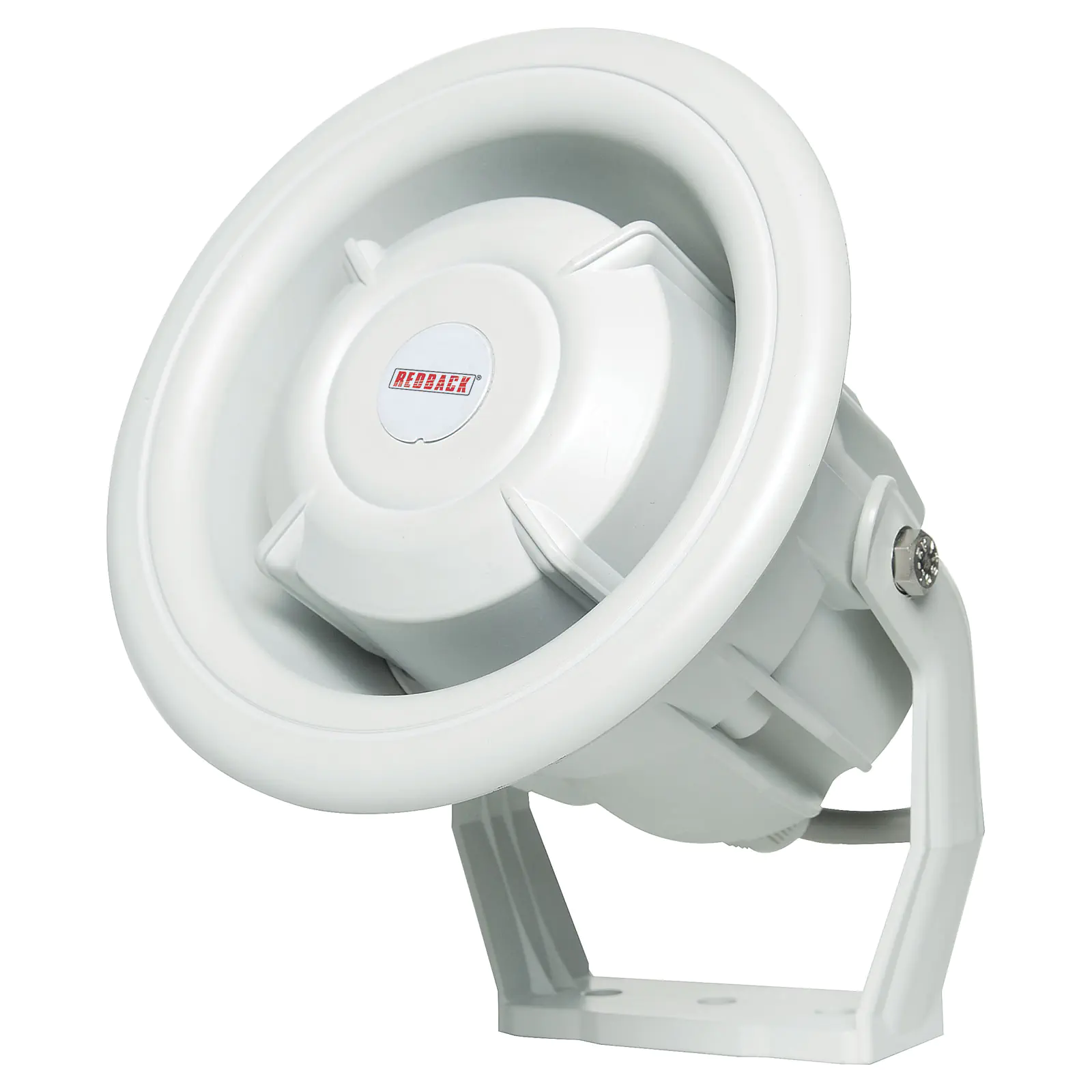

12W 100V IP67 Weather Proof Marine Horn Speaker

by: Redback
SKU: C2083
The perfect choice for harsh industrial environments. A wide operating temperature range, coupled with an IP67 rated enclosure make this horn speaker suitable for a vast range of applications. It is resistant to corrosion and chemicals.
$240.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $240.91
4+ $226.36
10+ $204.55
i h

Overview

Includes 22µF capacitor for line monitoring applications. The perfect choice for harsh industrial environments.
A wide operating temperature range and IP67 rated enclosure makes this horn suitable for a vast range of applications. The housing is UV stabilised which allows exposure to full sun. Several power taps are available via multi core cable, including 100V and 8Ω selections. Includes stainless steel hardware. Audio performance has not been sacrificed with excellent efficiency & frequency response. Suitable for flush ceiling mounting.



Features:

  • IP67 dust & moisture rated
  • UV stabilised
  • -30°C to 70°C for harsh environments
  • 8 Ohm or 100V tappings
  • Recessed bracket with stainless steel hardware





Specifications:

Rated Power (rms): 12W

Impedance: 833Ω, 1.67kΩ, 3.33kΩ, 6.67kΩ and 8Ω

Power Taps @ 100V: 12W, 6W, 3W, 1.5W & 8Ω

Power Taps @ 70V: 6W, 3W, 1.5W, 0.75W & 8Ω

SPL (1W / 1m) @1kHz: 98dB

Max. SPL (Rated W / 1m) @1kHz: 109dB

Frequency Range (-10dB): 570 Hz ~ 4.8k Hz

Frequency Range (-20dB): 510 Hz ~ 12k Hz

Dispersion 1k Hz / 4k Hz: 185˚/ 45˚

Operating Temperature: -30˚C ~ +70˚C

Ingress Protection: IEC 529 IP 67

Power Selection: 6-core cable

Housing material: High impact ABS with UV stable

Colour / Finish: Light grey (RAL 7035)

Dimensions: 143Ø. X 110.0L mm

Cutout size: 110Ø mm

Mounting: U-bracket or surface mount

Net Weight (ea): 1kg





10 year warranty

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty 5 Years
Speakers
Type 100V Line Horn Speaker

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
