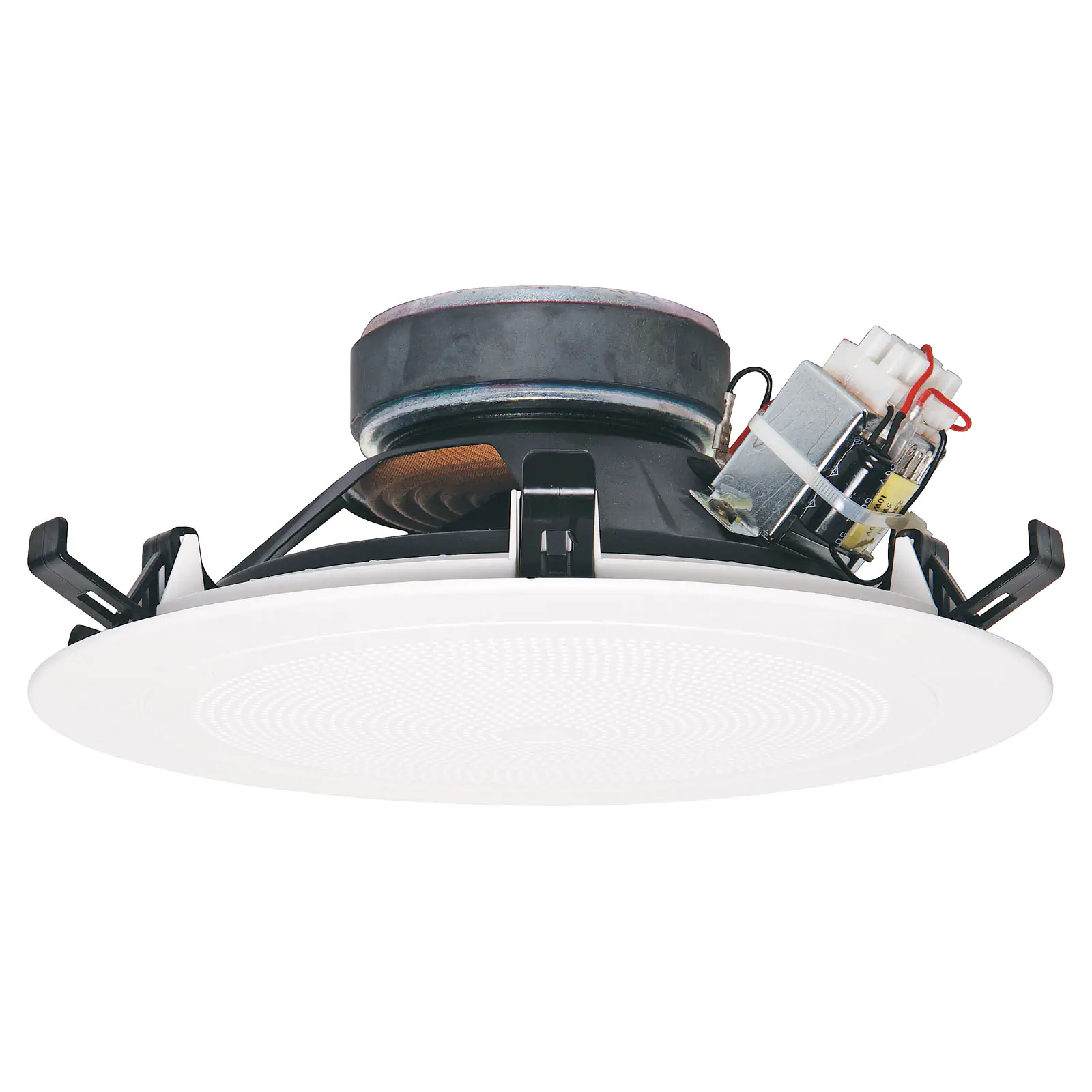

200mm (8") 15W 100V Coaxial White One-Shot Ceiling Speaker

by: One-Shot
SKU: C2138
Redback "One-Shot" speaker assemblies install in seconds. They simply snap fit to any 10-13mm thickness ceiling by means of the integral pressure clips. The labour cost savings for the pro sound installer are both obvious and substantial.
$104.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $104.55
4+ $95.45
10+ $84.50
i h

Overview

Redback® “One-Shot®” speaker assemblies install in seconds. They simply snap fit to any 10-13mm thickness ceiling by means of the integral pressure clips. The labour cost savings for the pro sound installer are both obvious and substantial. The snap clip material is formulated to retain long service life strength and spring action, ensuring a snug vibration free fit to either gyprock tiles, mineral fibre tiles or fixed gyprock ceilings.

This model is a coaxial type speaker suitable for commercial and industrial use, utilising 100V line systems and fitted with a 2 way terminal block.

Attention PA Installers! Using these speaker assemblies greatly reduces installation time compared to a standard speaker & grill combination. Typically, you will save about 5 minutes per speaker point. This equates to a significant saving in labour costs.





Specifications:

Speaker driver: C 2120A

Power Taps : 1.25, 2.5, 5, 10, 15 Watts

Frequency Response: 45Hz-20kHz

Resonant Frequency: 50Hz

SPL 1W @ 1m: 91dB

Terminal type: 4-way screw terminal & 22µF bipolar capacitor

Tweeter Voice Coil Ø: 13mm

Driver Voice Coil Ø: 25mm

Ceiling cutout: 246mmØ

Mounting depth: 94mm

Transformer cover: No

Cable restraint: No





10 year warranty

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty 5 Years
Speakers
Input 100 Volt Line Speakers

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
Accessories
For applications where high power, high performance sound reproduction is required, ie. bars, boutiques, clubs etc. Supplied with a 15W 100V transformer. Now with 4 way terminal block & capacitor for Fire/Evac installations!
C2120A

200mm (8") 15W 100V Coaxial 2 Way PA Driver Speaker

For applications where high power, high performance sound reproduction is required, ie. bars, boutiques, clubs etc. Supplied with a 15W 100V transformer. Fitted with 4 way terminal block & line monitoring capacitor.
$59.09
