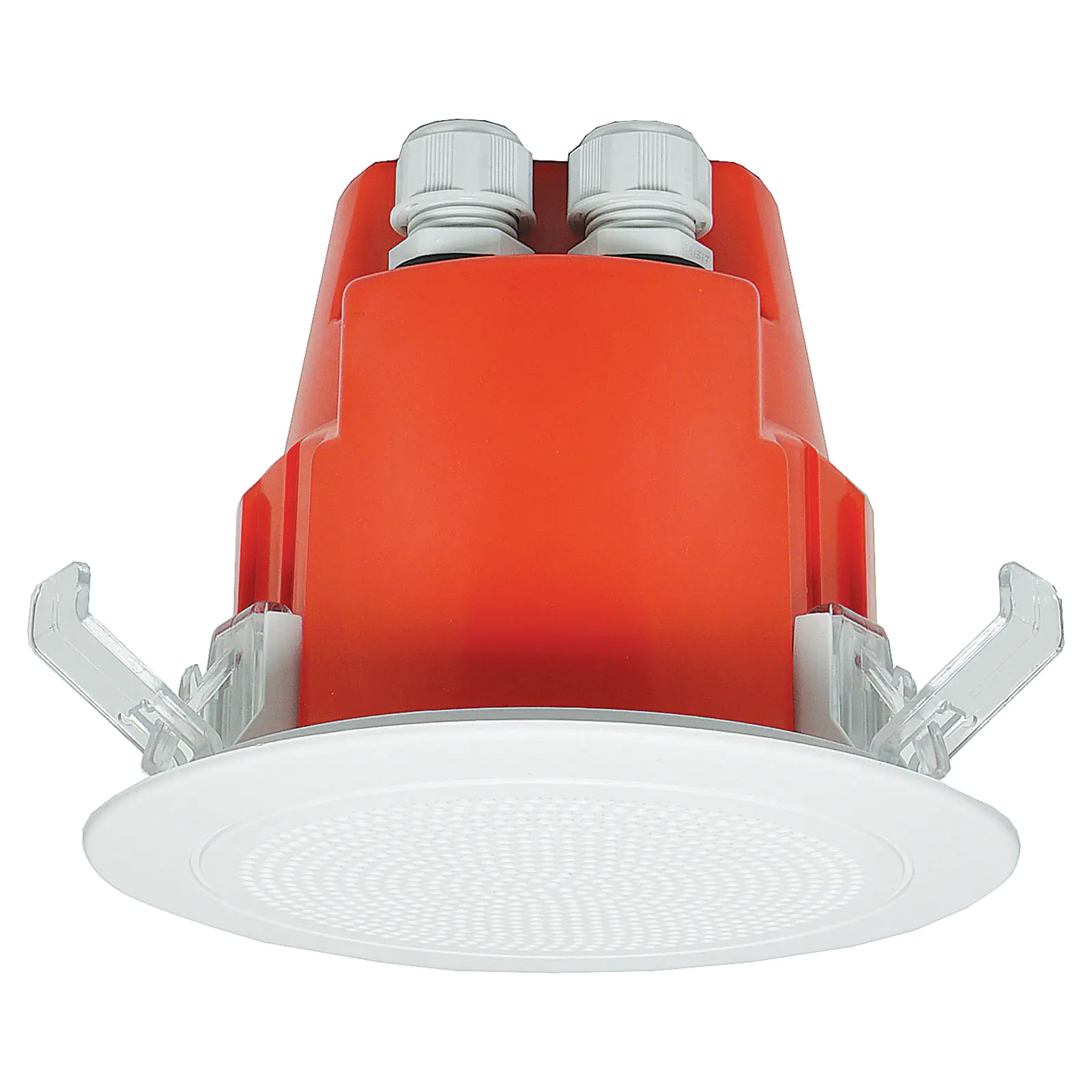

100mm 100V 5W Ceiling EWIS Speaker White Plastic Grille

by: One-Shot
SKU: C2170
Designed to meet AS ISO 7240.24:2018. Considerable development and has been put into this fire announcement system approved version of our popular One-Shot 'Rat-Trap' speaker. Flame retardent design with tuned PA driver to suit the latest approval requirements.
$74.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $74.77
4+ $67.50
10+ $60.45
i h

Overview

Designed to meet AS ISO 7240.24:2015. Considerable development and has been put into this fire announcement system approved version of our popular One-Shot ''Rat-Trap'' speaker. Flame retardant design with tuned PA driver to suit the latest approval requirements.

Features:

  • Designed to meet Australian Standard AS ISO7240.24
  • Excellent speech intelligibility
  • Tuned PA driver designed to meet the latest fire standards
  • High quality speaker driver developed for BGM, paging and emergency warning applications
  • Patented 3 way latching ensures a neat, sag free installation.
  • Fitted with 4 way wire protect terminal for loop in, loop out wiring.
  • Fitted with cable restraint plate and flame retardant safety cover.
  • Fitted with supervisory capacitor for line monitoring.
  • Assembled in Australia.
  • 5 year warranty.





Specifications:



Electrical:

Power taps: 0.33, 0.66, 1.25, 2.5, 5W

Impedance: 30kΩ, 15kΩ, 8kΩ, 4kΩ, 2kΩ

SPL 1W @ 1m: 90dB

SPL 1W @ 4m: 78dB

SPL 5W @ 1m: 97dB

SPL 5W @ 4m: 85dB

Frequency response: 100Hz-15kHz

Coverage Angles: 1000Hz 182°, 2000Hz 163°, 4000Hz 77°

Connection: 4 way terminal block + 22uF bipolar capacitor

Approval: AS ISO7240.24

Environmental Type: A (for indoor applications)



SPL by tappings @ 1m:

0.33W: 85.2dB

0.66W: 88.2dB

1.25W: 91.2dB

2.5W: 94dB

5W: 97dB



Mechanical:

Material:

White flame retardant ABS grille (Taitalac 8540T)

Clear Flame retardant ABS spring clips (Makrolon 6557)

Red flame retardant ABS transformer dome cover (Starex VH-0800)

Driver construction: Paper cone

Ceiling cutout: 140mmØ

Grille diameter: 159mmØ

Mounting depth: 117mm (including ceiling tile thickness)

Overall weight: 700g



Environmental:

Operating temperature: -25°C to +55°C

Relative humidity: < 95%

IP Rating: IP21





10 year warranty

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.
