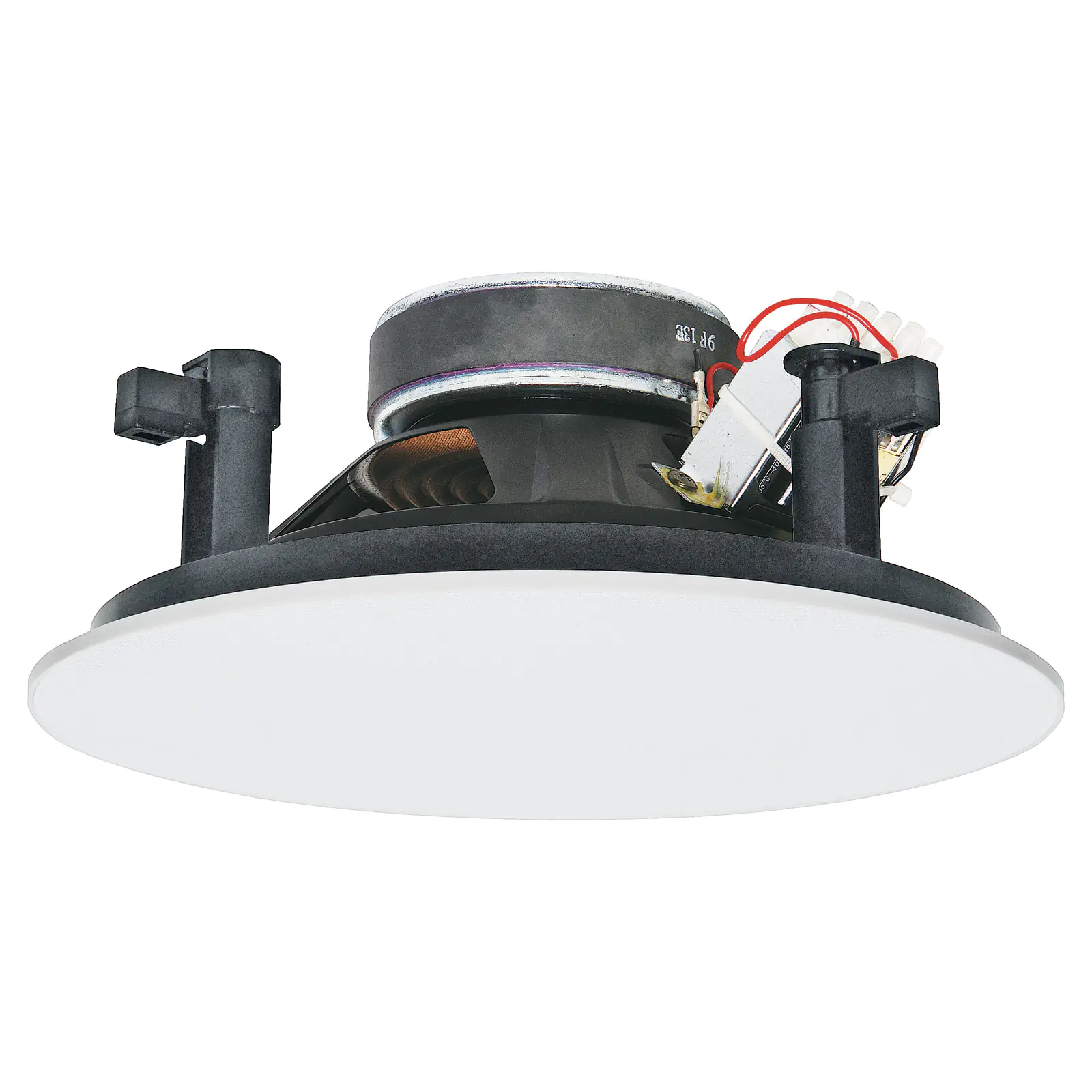

200mm (8") 15W 100V Coaxial 2 Way Fastfix Ceiling Speaker

by: Redback
SKU: C2190
Features a magnetic fit 'edge to edge' steel grille for a near flush finish.
$125.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $125.00
4+ $113.64
10+ $100.00
i h

Overview

The C 2190 is a high power PA speaker designed for EWIS (fire & evacuation) installations. It is ideal for BGM, paging & emergency warning applications. The offset transformer mounting allows mounting in ceilings with limited recess space. This speaker is designed for use in installations designed to deliver both verbal and tone announcements to occupants for evacuation and alarm conditions. It is fitted with line monitoring capacitor and 4 way wire protect terminal connection.



Features:

  • Magnetic fit ‘edge to edge’ steel grille for a neat flush finish.
  • High power output
  • Excellent speech intelligibility
  • High quality speaker driver developed for BGM, paging and emergency warning applications
  • Flip-lock mounting system reduces installation time.
  • Fitted with supervisory capacitor for line monitoring.
  • 5 year warranty.





Specifications:

Power taps: 1.25, 2, 5, 10, 15 watts

SPL 1W @ 1m: 90dB @ 1kHz ±3dB

Freq response: 45Hz - 20kHz

Terminal type: 4 way screw terminal & 22µF bipolar cap

Grille: Steel

Ceiling cutout: 250mm Ø

Mounting depth: 100mm





10 year warranty

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty 5 Years
Speakers
Input 100 Volt Line Speakers
Size 8" (200mm)

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
