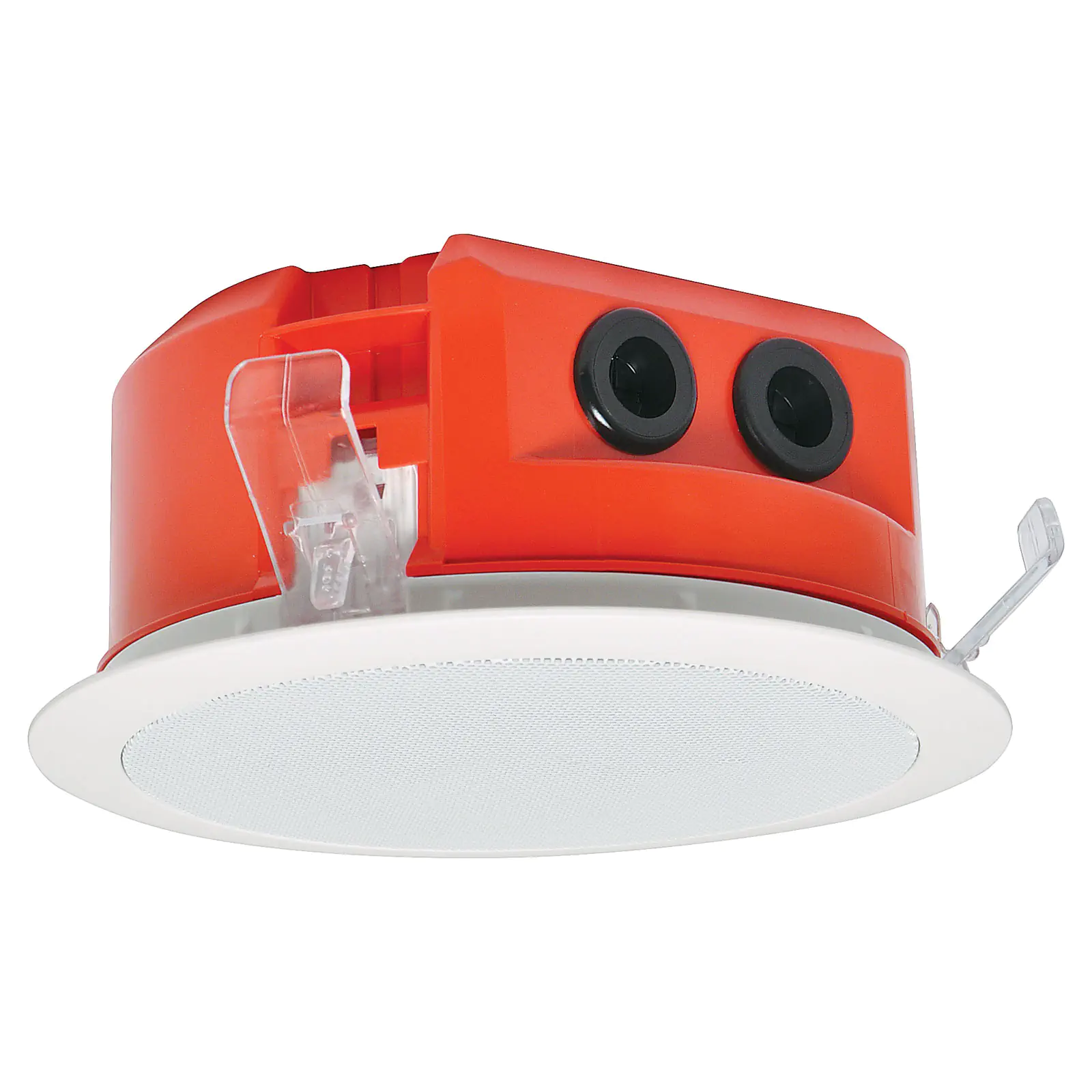

100mm 100V 5W Ceiling EWIS Speaker White Metal Grille

Name: 100mm 100V 5W Ceiling EWIS Speaker White Metal Grille
SKU: C2260AB
Price: 83.86 AUD
Availability: InStock

by: One-Shot

SKU: C2260AB

Designed to meet AS ISO7240.24:2018. A lower profile version of the C 2170. At only 65mm overall height, these models are ideal for low profile ceiling spaces.

$83.86

All Prices Shown are (ex GST)

Bulk Pricing

ea	$83.86
4+	$78.41
10+	$73.18

i h

Overview
Details
Warranty
Downloads

Overview

Designed to meet AS ISO7240.24:2018. Our first One-Shot speaker with a aluminium grille, this model has been designed for installations requiring a premium finish whilst still meeting the required fire standards. It can also be used for standard 100V PA/BGM installations. At only 65mm overall height, these models are ideal for low profile ceiling spaces (penetrates ceiling cavity by only 53mm - with 12mm thickness ceiling tiles). It features flame retardant housing material, sealed cable gland entries and a tuned PA driver to suit the new approval requirements.

Please Note: This version differs from the C 2260 only in the type of sealing used for cable entry and the lack of Redback branding on the grille exterior. This model features a press fit rubber push through grommet.

Features:

Designed to meet Australian Standard AS ISO7240.24
Press to fit rubber push through grommet.
Excellent speech intelligibility
Low profile design is only 65mm deep.
Tuned PA driver designed to meet the latest fire standards
High quality speaker driver developed for BGM, paging and emergency warning applications
Patented 3 way latching ensures a neat, sag free installation.
Fitted with 4 way wire protect terminal for loop in, loop out wiring.
Fitted with cable restraint plate and flame retardant safety cover.
Fitted with supervisory capacitor for line monitoring.
Assembled in Australia.
5 year warranty.

Specifications:

Electrical:

Power taps: 0.33, 0.66, 1.25, 2.5, 5W

Impedance: 30kΩ, 15kΩ, 8kΩ, 4kΩ, 2kΩ

SPL 1W @ 1m: 89dB

SPL 1W @ 4m: 77dB

SPL 5W @ 1m: 96dB

SPL 5W @ 4m: 84dB

Frequency response: 100Hz - 15kHz

Coverage Angles: 1000Hz 180°, 2000Hz 160°, 4000Hz 75°

Connection: 4 way terminal block + 22uF bipolar capacitor

Approval: AS ISO7240.24

Environmental Type: A (for indoor applications)

Mechanical:

Material:

White flame retardant ABS grille (ABS AF312C)

Clear Flame retardant ABS spring clips (Makrolon 6557)

Red flame retardant ABS transformer dome cover (Starex VH-0800)

Powdercoated aluminium grille insert (RAL9003)

Driver construction: Paper cone

Ceiling cutout: 140mmØ

Grille diameter: 159mmØ

Mounting depth: 61mm (including ceiling tile thickness)

Overall weight: 650g

Environmental:

Operating temperature: -25°C to +55°C

Relative humidity: < 95%

IP Rating: IP21

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.
