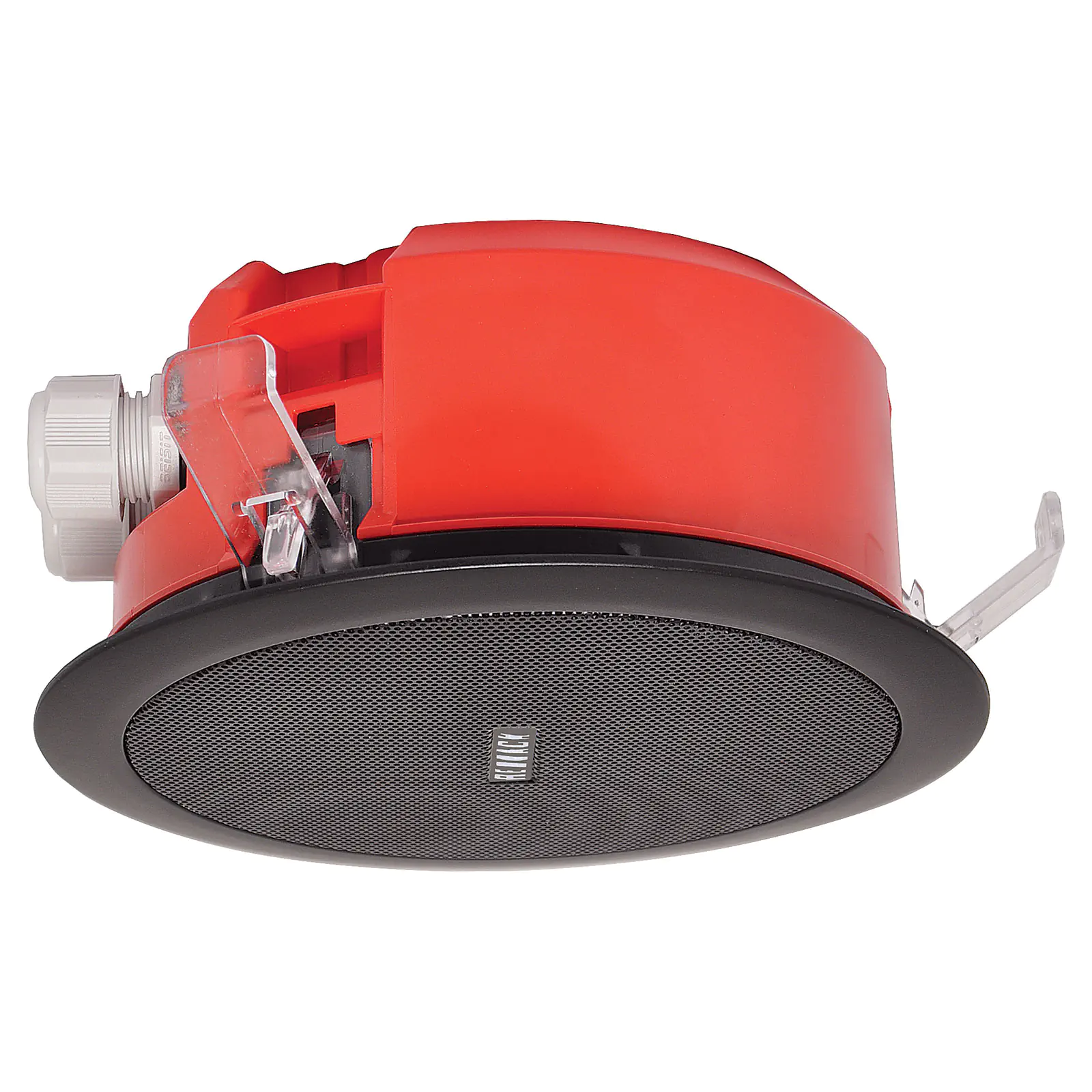

100mm 100V 5W Ceiling EWIS Speaker Black Metal Grille

by: One-Shot
SKU: C2261
Designed to meet AS ISO7240.24. Our first One-Shot speaker with a aluminium grille, this model has been designed for installations requiring a premium finish.
$95.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $95.45
4+ $88.86
10+ $81.82
i h

Overview

Designed to meet AS ISO7240.24. Our first One-Shot speaker with a aluminium grille, this model has been designed for installations requiring a premium finish whilst still meeting the required fire standards. It can also be used for standard 100V PA/BGM installations. At only 65mm overall height, these models are ideal for low profile ceiling spaces (penetrates ceiling cavity by only 53mm - with 12mm thickness ceiling tiles). It features flame retardant housing material, sealed cable gland entries and a tuned PA driver to suit the new approval requirements.

Features:

  • Designed to meet Australian Standard AS ISO7240.24
  • Excellent speech intelligibility
  • Stylish finish with rust free aluminium grille.
  • Black RAL9004 mesh grille.
  • Low profile design is only 65mm deep - penetrates ceiling by only 53mm (with 12mm thickness ceiling tile).
  • Tuned PA driver designed to meet the latest fire standards
  • High quality speaker driver developed for BGM, paging and emergency warning applications
  • Patented 3 way latching ensures a neat, sag free installation.
  • Fitted with 4 way wire protect terminal for loop in, loop out wiring.
  • Fitted with flame retardant safety cover.
  • Fitted with supervisory capacitor for line monitoring.
  • Assembled in Australia.
  • 5 year warranty.





Specifications:



Electrical:

Power taps: 0.33, 0.66, 1.25, 2.5, 5W

Impedance: 30kΩ, 15kΩ, 8kΩ, 4kΩ, 2kΩ

SPL 1W @ 1m: 89dB

SPL 1W @ 4m: 77dB

SPL 5W @ 1m: 96dB

SPL 5W @ 4m: 84dB

Frequency response: 100Hz - 15kHz

Coverage Angles: 1000Hz 180°, 2000Hz 160°, 4000Hz 75°

Connection: 4 way terminal block + 22uF bipolar capacitor

Approval: AS ISO7240.24

Environmental Type: A (for indoor applications)



Mechanical

Material:

Black flame retardant ABS grille (ABS AF312C)

Clear Flame retardant ABS spring clips (Makrolon 6557)

Red flame retardant ABS transformer dome cover (Starex VH-0800)

Powdercoated aluminium grille insert (RAL9004)

Driver construction: Paper cone

Ceiling cutout: 140mmØ

Grille diameter: 159mmØ

Mounting depth: 61mm (including ceiling tile thickness)

Overall weight: 650g



Environmental:

Operating temperature: -25°C to +55°C

Relative humidity: < 95%

IP Rating: IP21





10 year warranty

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty 5 Years
Speakers
Input 100 Volt Line Speakers
Size 4" (100mm)

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Datasheet
PDF
.pdf
Brochure
PDF
.pdf
Activ Fire Certificate
PDF
