A durable lightweight transmitter & lapel mic combination designed for use with the C 8812 tour guide receiver.

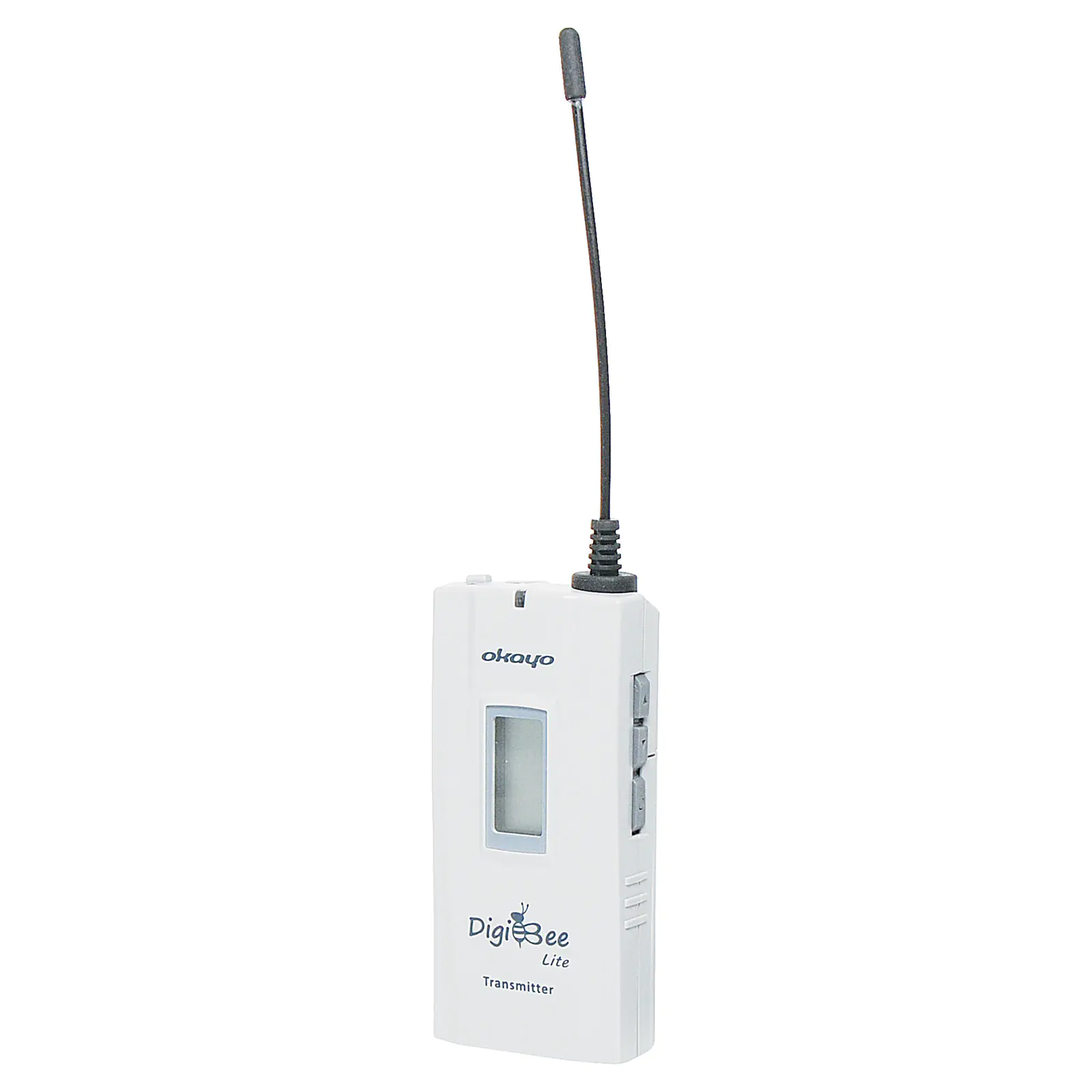

UHF Wireless Tour Guide System Transmitter 520-544Mhz 60 Ch

Name: UHF Wireless Tour Guide System Transmitter 520-544Mhz 60 Ch
SKU: C8810
Price: 222.73 AUD
Availability: InStock

by: Okayo

SKU: C8810

A durable lightweight transmitter & lapel mic combination designed for use with the C 8812 tour guide receiver.

$222.73

All Prices Shown are (ex GST)

Bulk Pricing

ea	$222.73
2+	$199.09

i h

Overview
Details
Warranty
Downloads

Overview

This durable and ultra-lightweight tour guide system provides visitors to museums, galleries and cultural sites with a superior experience. The system allows the guide to communicate clearly to all visitors - even large groups of over 50 people - without the need to shout.

The transmitter automatically synchronises all receivers to the same channel, allowing for quick and easy set up when tour groups arrive. Each receiver can be fitted with a Ni-MH rechargeable AA size battery which offers up to 15 hours of operation before recharge. After a full day of tours all the units can be recharged overnight (approx 8 hours). C8810 transmitter includes lapel microphone, a headset style microphone is available separately. Both the transmitter and receiver units weigh just 70 grams including battery offering the guide excellent freedom of movement when paired with a headset microphone. Whilst the receivers are no bigger than your average smartphone and can be connected to standard headphones.

The system provides up to 60 channels in the 520-544MHz band and is fully compliant with the latest ACMA operating laws in Australia.

Size: 40W x 24D x 97Hmm (exc. antenna).

Note: Requires 1 x Ni-MH / 1 x AA battery (sold separately)

Features:

Automatic channel synchronisation between guide and visitors.
Includes high performance lapel microphone with tie clip.
50m transmission range - ideal for larger groups.
60 channels in the 520-544MHz frequency range.
Fitted with belt/pocket clip.
Clear and noise free reception.
Charging stations available.

Specifications:

Frequency range: 520MHz - 544MHz

Modulation: 4GFSK

Dynamic range: > 70 dB

Signal to Noise: > 65 dB

T.H.D.: < 3 %

Operating range: > 50 meter (line-of-sight)

Operating time: 12 hours

Battery: Suits single 1.2V Ni-MH rechargeable battery or 1.5V alkaline battery

Charging time: 8 hours

Dimensions: 24D x 40W x 87Hmm (without antenna)

Weight: 70 g (with battery)

Details

Products specifications

Warranty	12 Months
Professional Audio
Frequency	520-544MHz
Type	Wireless Tour Systems

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Brochure

PDF

Instructions

PDF
