Auto-Scan UHF Wireless Mic Receiver 16 Ch 520-550MHz

by: Redback
SKU: C8860B
Featuring Auto-Scan system allowing quick and easy selection of an interference free operating frequency. This is particularly useful when there are many existing systems in use nearby.
Save $36.36 $271.82 $308.18

All Prices Shown are (ex GST)
Bulk Pricing
ea
$271.82 $308.18
2+
$271.82 $280.91
i h

Overview

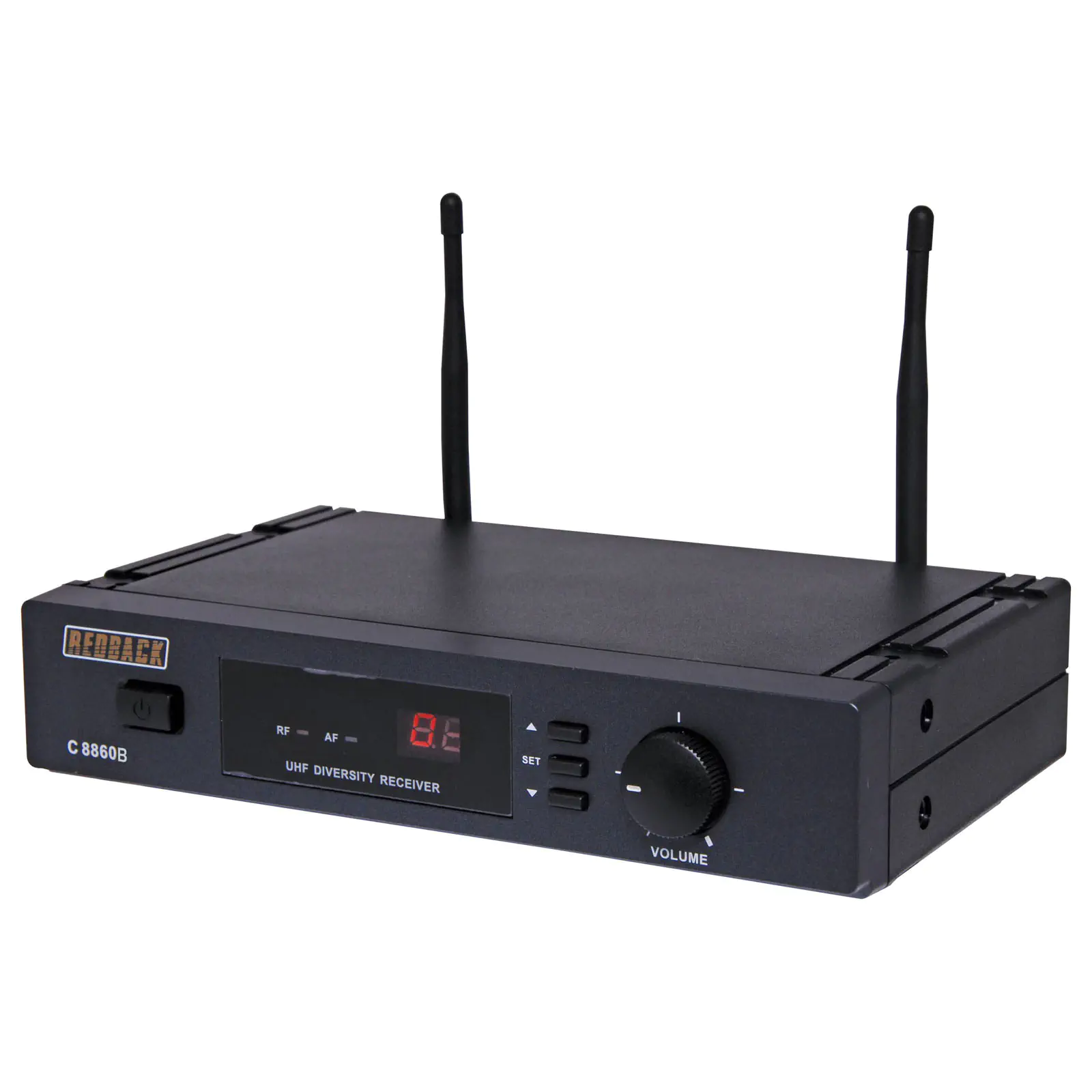

A 16 channel auto scanning UHF wireless microphone system receiver. The Auto-Scan option allows quick and easy selection of an interference free operating frequency. This is particularly useful when there are many existing systems in use nearby. Incorporates diversity reception ensuring a consistent and clear microphone signal with minimal dropout and noise interference. 16 channels allow interference free operation with multiple systems in the one location. Noise reduction system automatically compensates for high level sound inputs thus avoiding distortion. Channel and volume settings are adjusted via front panel. The LCD screen displays selected group, channel & frequency. A range in excess of 100m is possible in ideal conditions. Output is via 3 pin XLR balanced or 6.35mm unbalanced. LEDs are provided for displaying system status. The system operates from 12-18VDC (power supply included).

In the box:
1 x Receiver
1 x Power supply
1 x 0.5m male to female 3 pin XLR cable
2 x Rack mounting ears (for mounting 2 units side by side)
1 x Joiner bracket (for mounting 2 units side by side)



Rack mounting options: A single unit can be mounted into 1RU rack space using a pair of C 8889 rack mounting ears. Two units can be mounted side by side into 1RU rack space using the included hardware.



Features:

  • 16 Channels in 520-550MHz UHF Band
  • LCD shows selected channel
  • Half rack 1RU desk mount case
  • Tone squelch circuit
  • Range over 100m in ideal conditions
  • 6.35mm line output
  • 3 pin balanced XLR mic output





Specifications:



Frequency Channel List
  • CH 1: 520.125MHz
  • CH 2: 520.825MHz
  • CH 3: 521.925MHz
  • CH 4: 525.025MHz
  • CH 5: 525.925MHz
  • CH 6: 528.525MHz
  • CH 7: 529.425MHz
  • CH 8: 532.325MHz
  • CH 9: 534.225MHz
  • CH 10: 535.625MHz
  • CH 11: 541.125MHz
  • CH 12: 543.225MHz
  • CH 13: 544.125MHz
  • CH 14: 544.825MHz
  • CH 15: 545.725MHz
  • CH 16: 549.525MHz



Suggested Channel Groupings
  • Use these channel selections when using multiple transmitters in the same area.
  • Group A: Channels 1, 2, 3, 6, 7, 9, 10, 16.
  • Group B: Channels 2, 5, 7, 8, 9, 10, 11, 14.
  • Group C: Channels 1, 3, 5, 7, 9, 10, 11, 13.
  • Group D: Channels 2, 4, 8, 10, 12, 14, 15, 16.

Details

Products specifications

Warranty 12 Months
Professional Audio
Type Wireless Receivers
Frequency 520-550MHz

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
.pdf
Frequency List
PDF
