UHF Wireless Microphone System With Beltpack Mic 16 Ch

by: Redback
SKU: C8868C
The perfect entry level 16 channel UHF wireless microphone system for clubs, restaurants, function centres, wedding ceremonies etc. It produces a clear, crisp vocal reproduction, whilst allowing freedom of movement. Supplied as a complete "ready to go" system with a beltpack/lavalier microphone transmitter.
Save $72.73 $271.82 $344.55

All Prices Shown are (ex GST)
Bulk Pricing
ea
$271.82 $344.55
2+
$271.82 $309.09
i h

Overview

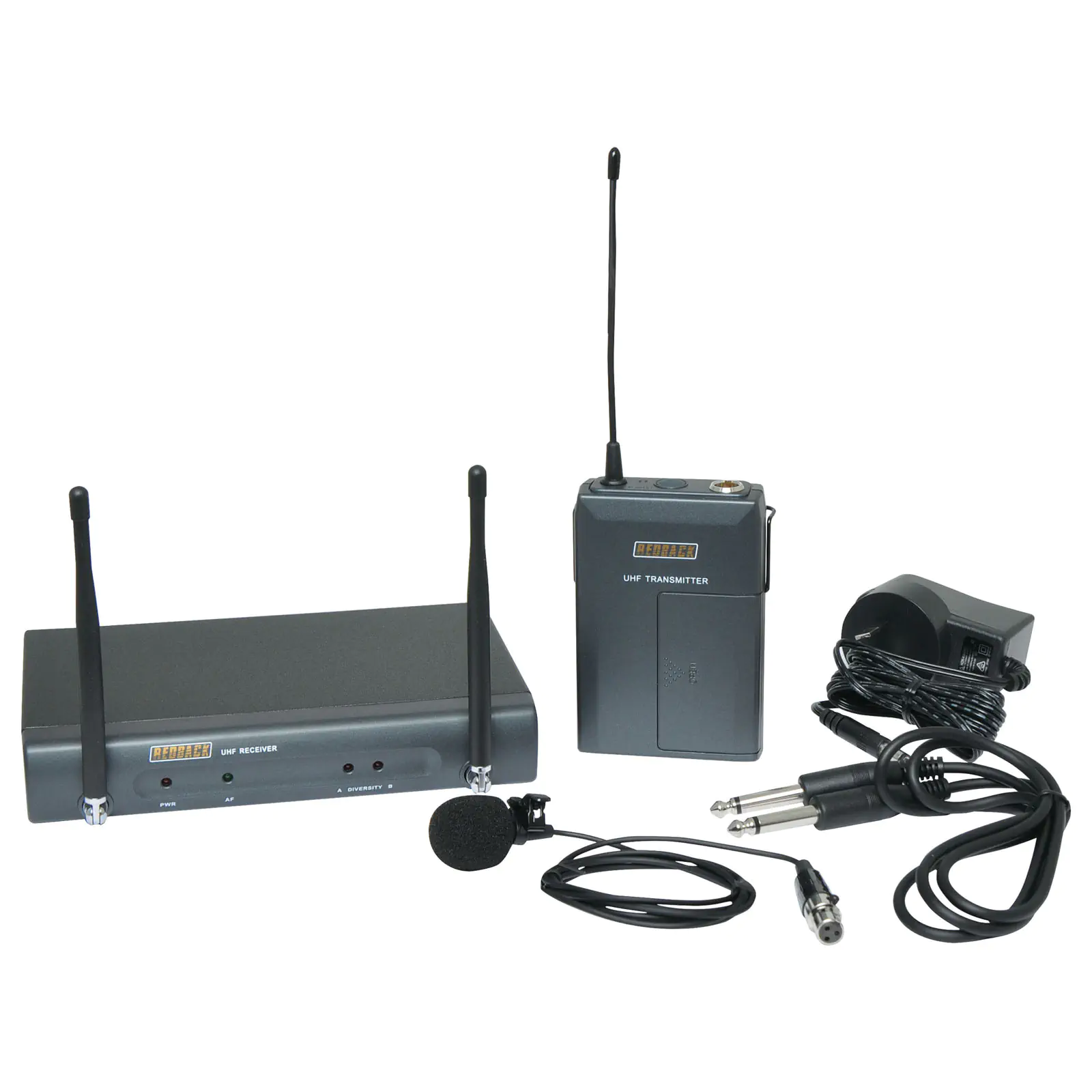

The perfect entry level 16 channel UHF wireless microphone system for clubs, restaurants, function centres, wedding ceremonies etc. It produces a clear, crisp vocal reproduction, whilst allowing freedom of movement. Supplied as a complete ‘ready to go’ system with a belt pack/lavalier microphone transmitter. 16 channels allow interference free operation with multiple systems in the one location. Output signal is via 3 pin XLR balanced or 6.35mm unbalanced jack, suitable for connection to most amplifiers. Front panel LEDs indicate active antenna and audio signal presence. Supplied complete with belt pack/lavalier transmitter and lapel microphone (see C8911A, C 8913B or C 8914 for compatible headsets).

Note: Requires 2 x AA batteries (sold separately)



Features:

  • 16 Channels in 520 - 550MHz UHF Band
  • RF and AF signal presence LEDs
  • Tone squelch circuit for noise reduction
  • Range up to 70m in ideal conditions
  • 6.35mm unbalanced line/mic output
  • 3 pin balanced XLR mic output
  • Microphone transmitters require 2 x AA batteries (not included).





Specifications:



Receiver:

Carrier Frequency Range: 520-550MHz UHF band

Frequency Stability: ±0.005%

Oscillator: PLL Synthesised

Receiving Sensitivity: 10µV over 80dB S/N ratio

Image and Spurious Rejection: 80dB minimum

Selectivity: >50dB

Modulation Mode: FM

IF Frequency: 1st: 243.95MHz; 2nd: 10.7MHz

Tone Signal: 32.768kHz

S/N ratio: >94dB, at 48kHz deviation and 60dBµV antenna input

Audio Frequency Response: 50Hz to 15kHz (±3dB)

Total Harmonic Distortion: Less than 1.0% (at 1kHz)

Power Supply: 12V DC

Audio Output: Balanced and unbalanced outputs for Single channel / Switching diversity (Mic.=-20dB / Line = 0dB)

Current consumption: 130mA (max.)

Dimensions (mm) WxHxD: 170 x 32 x 106



Transmitter:

Carrier Frequency Range: 520-550MHz UHF band

RF Power Output: 10mW (max.)

Oscillation Mode: PLL synthesised, 16 Channel selectable

Frequency Stability: ±0.005%

Maximum Deviation: ±48kHz with limiting compressor

Spurious Emission: >60dB below carrier frequency

Total Harmonic Distortion: <1% (at 1kHz)

Microphone Capsule: Not included

Battery: 3V DC (2 x 1.5V AA size batteries ) or 2.4V DC ( 2 x 1.2V AA size rechargeable batteries)

Current consumption: 120mA +/- 5mA

Dimensions (mm) WxHxD: 65 x 100 x 27



Frequency Channel List:

CH 1: 520.125MHz

CH 2: 520.825MHz

CH 3: 521.925MHz

CH 4: 525.025MHz

CH 5: 525.925MHz

CH 6: 528.525MHz

CH 7: 529.425MHz

CH 8: 532.325MHz

CH 9: 534.225MHz

CH 10: 535.625MHz

CH 11: 541.125MHz

CH 12: 543.225MHz

CH 13: 544.125MHz

CH 14: 544.825MHz

CH 15: 545.725MHz

CH 16: 549.525MHz



Suggested Channel Groupings:

Use these channel selections when using multiple transmitters in the same area.

Group A: Channels 1, 2, 3, 6, 7, 9, 10, 16.

Group B: Channels 2, 5, 7, 8, 9, 10, 11, 14.

Group C: Channels 1, 3, 5, 7, 9, 10, 11, 13.

Group D: Channels 2, 4, 8, 10, 12, 14, 15, 16.
