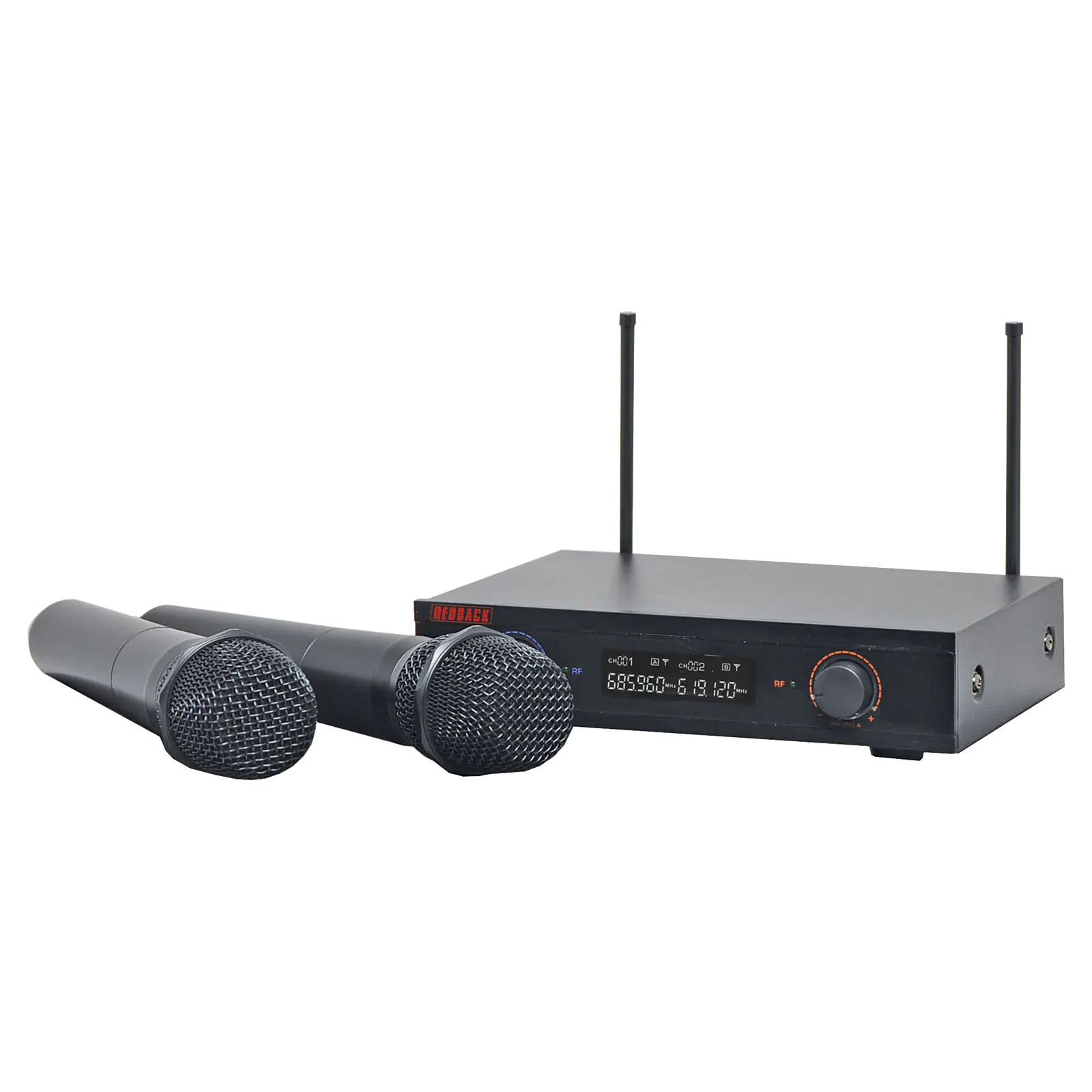

UHF Wireless Microphone System 2 Ch With Two Handheld Mics

by: Redback
SKU: C8884
For systems requiring the freedom of two independent wireless microphones at an economical price. The sturdy 1/2 rack mount cabinet is fitted with 2 channel fixed frequency wireless receiver.
$190.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $190.00
i h

Overview

This 2 channel fixed frequency UHF wireless microphone system, includes two handheld microphones and is the perfect system for wedding ceremonies, DJs, sporting clubs, schools, restaurants and function centres. Both microphones may be used simultaneously, making it perfect for Q&A sessions or with two people on stage. The fixed frequency design cuts out all the channel set up requirements, simply switch it on, set the output level and start talking! The miniaturised SMD construction and unique shielding technique, ensures excellent performance and minimal external interference. The receiver features an independent front panel level control and RF indicators. Outputs are provided for each channel via 3 pin XLR, plus a mixed output via 6.35mm jack. A range of 60m or more is obtainable in ideal conditions.

Included in the box:
1 x UHF Receiver
2 x UHF Wireless Transmitter Microphones
1 x USB Power Supply
1 x 6.35mm TS to 6.35mm TS Cable
1 x User Manual
4 x AA Batteries.



Features:

  • Multilevel high and mid frequency narrowband filters
  • Advanced noise detection and control
  • Tone key linked identity to reduce interference
  • Operating frequencies 520 / 524 MHz
  • RF signal presence indicator LEDs for channels A and B
  • Range of up to 60m in ideal conditions open air
  • 6.35mm unbalanced line mix output
  • 3-pin balanced XLR mic output for channels A and B
  • Screen shows parameters for both channels
  • Plug pack included
  • 4 x AA batteries included





Specifications:



Receiver:

Frequency Range: 520 + 524 MHz fixed UHF

Audio Output: Balanced Max output +5 dBu

Power Supply: 12-18 V DC

Power Consumed: 150 mA @13.5V DC

Receive Sensitivity: <-90 dBm



Handheld Transmitter:

Frequency Range: 520 + 524 MHz fixed UHF

RF Power: 10 mW

Battery: 2 x AA size battery (1.5V each)

Frequency Response: 50 - 20,000 Hz

Input Sensitivity: 2.1 mV/Pa

Power Consumed: 100mA @3V



System:

T.H.D. (Overall): < 0.1 %

Signal to Noise: = 96 dB (A)

RF frequency range: 520 + 524 MHz fixed UHF

Modulation: DQPSK

Bandwidth: 300kHz

Dynamic Range: >90 dB (A)

Audio sampling: 24 bit/48 kHz

Transmission system: PLL synthesised

Audio Delay: 3 ms

Audio Encoder: PT Live

Frequency Response: 20 - 20,000 Hz

Working Distance: up to 60m

Details

Products specifications

Warranty 12 Months
Professional Audio
Type Wireless UHF Packages
Frequency 520 / 524MHz

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
