A high performance wireless microphone system with true diversity operation and 300 selectable UHF channels for interference free operation

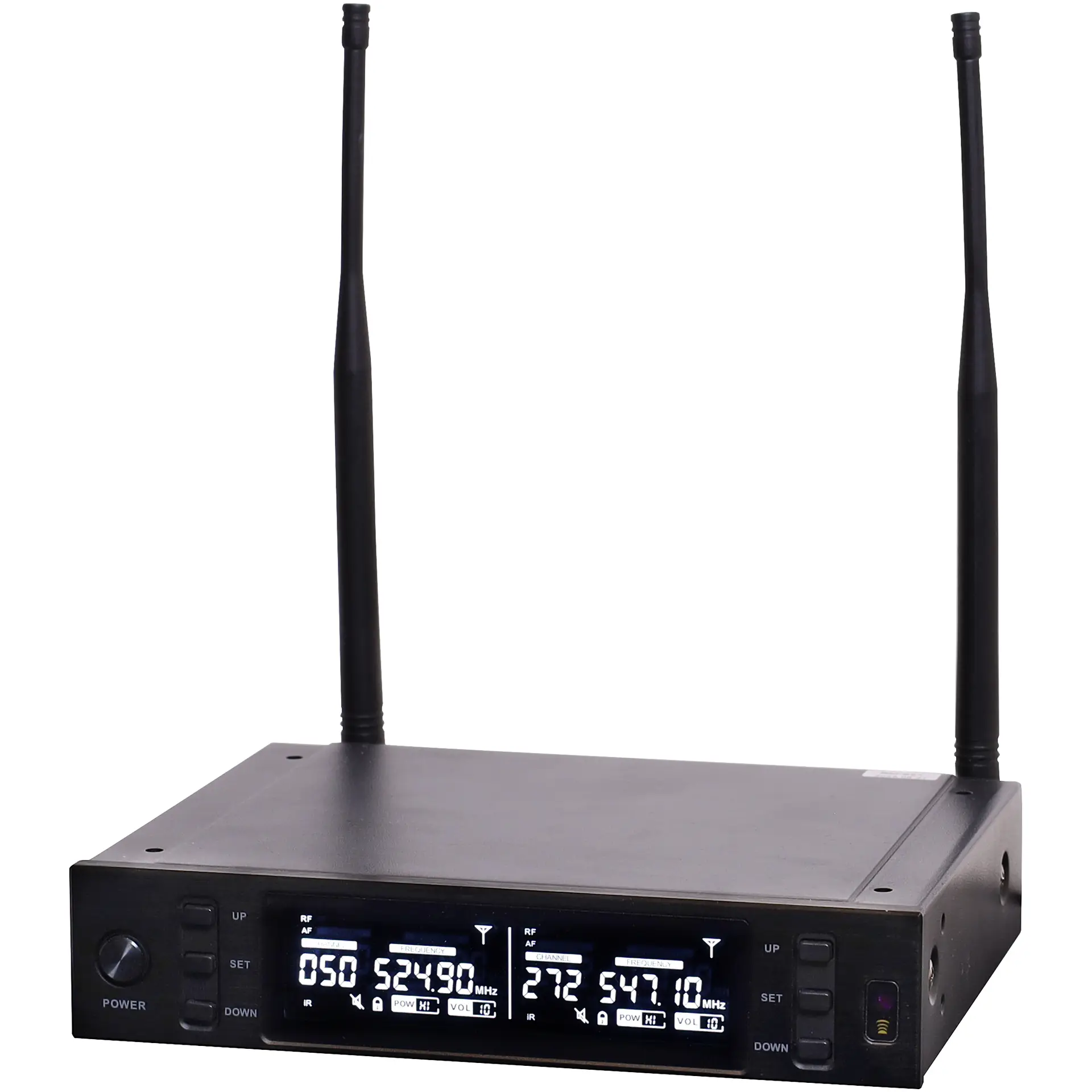

300 Channel True Diversity UHF Microphone Receiver

Name: 300 Channel True Diversity UHF Microphone Receiver
SKU: C8895
Price: 453.64 AUD
Availability: InStock

by: Redback

SKU: C8895

A high performance wireless microphone system with true diversity operation and 300 selectable UHF channels for interference free operation

$453.64

All Prices Shown are (ex GST)

Bulk Pricing

ea	$453.64
2+	$409.09

i h

Overview
Details
Warranty

Overview

A high performance wireless microphone system with true diversity operation and 300 selectable UHF channels for interference free operation. This ensures a consistent and clear microphone signal with minimal dropout and noise interference from other equipment within the venue. Transmitters can be matched with the receiver using an infra-red matching process allowing pairing to be done in seconds. Includes 19” rack mounting hardware to allow for one or two receivers to be mounted in a 1RU rack space. Channel and volume settings are adjusted via front panel controls. The LCD screen shows selected channel, frequency and RF/AF signal strength. A range in excess of 100m is possible in ideal conditions. Output is via 3 pin XLR balanced or 6.35mm unbalanced. Includes 12V DC power supply.

Please Note: Transmitters are sold separately - see accessories listed below

Features:

UHF True Diversity Technology to Avert Interferences
300 Preset Frequencies for each microphone, and IR Matching System for quick setup
520-550MHz UHF brand
Simple user interface with LCD display on transmitter and receiver
Transmitter AF-Level and battery-low monitoring directly on the receiver
Includes rack mounting hardware

Specifications:

Frequency: UHF 520-550MHZ

Frequency Stabilization: < ±30ppm

Dynamic Range: >90dB

Total Harmonic Distortion: <0.5%

Frequency Response: 40Hz-15KHz ±3dB

Audio output level: Balanced 400mV; Unbalanced 400mV

Power Supply: 12V DC 1A

Consumer Power: 7W

Signal/Noise Ratio: >90dB

Receiving sensitivity: 5dBuV

De-emphasis: 75uS

Dimensions: 210 x 43 x 187mm (antennas not included)

Antenna: 255m

Weight: 0.53kg

Details

Products specifications

Warranty	12 Months
Professional Audio
Type	Wireless UHF Packages
Frequency	520 / 524MHz

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
