A surface mount fire speaker featuring flame retardant housing material and PA Driver to suit the new approval requirements.

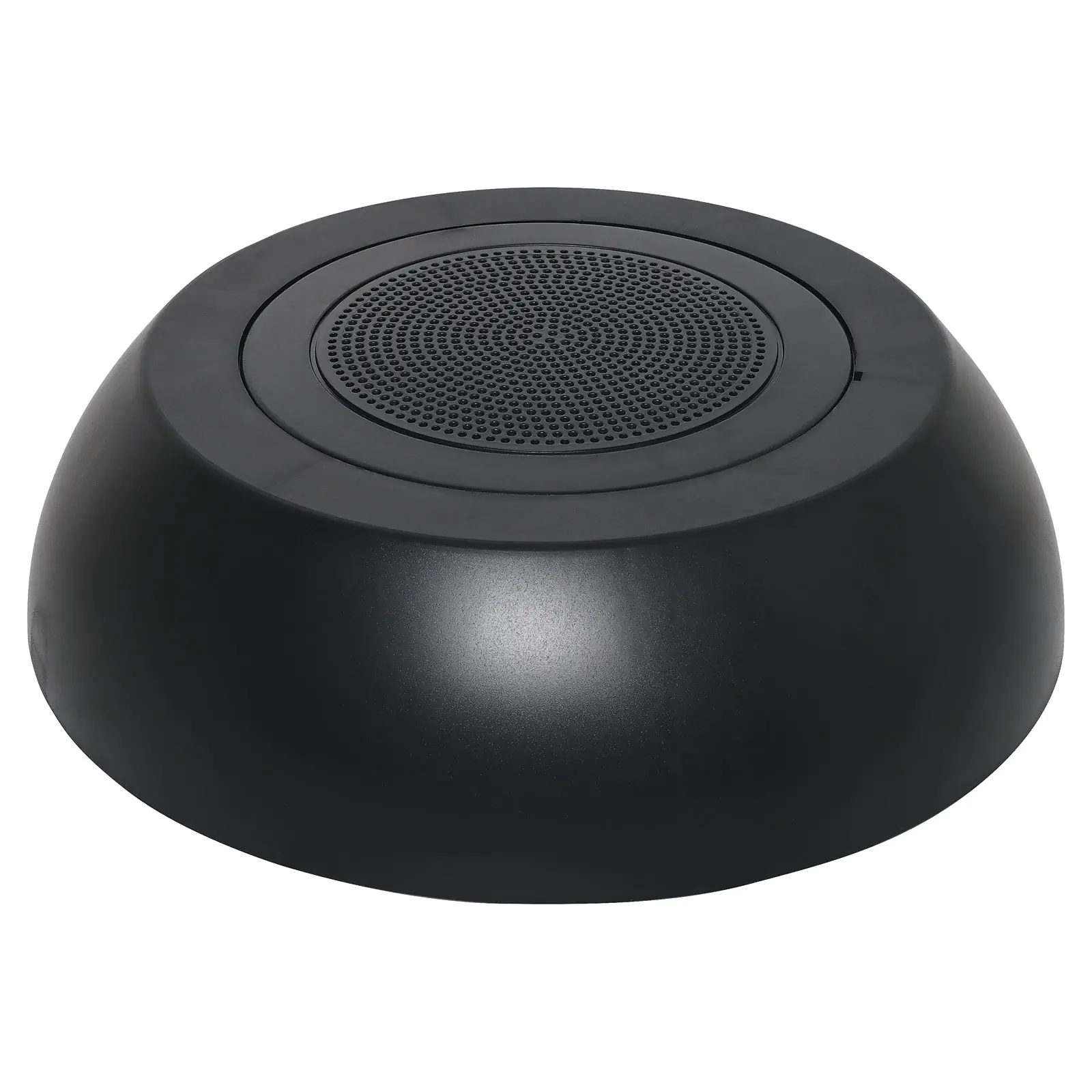

100mm (4") 100V 5W Surface Mount Speaker Black AS ISO7240.24

Name: 100mm (4") 100V 5W Surface Mount Speaker Black AS ISO7240.24
SKU: CF0706
Price: 95.45 AUD
Availability: InStock

by: One-Shot

SKU: CF0706

A surface mount fire speaker featuring flame retardant housing material and PA Driver to suit the new approval requirements.

$95.45

All Prices Shown are (ex GST)

Bulk Pricing

ea	$95.45
4+	$90.00
10+	$81.82

i h

Overview
Details
Warranty
Downloads

Overview

A surface mount fire speaker featuring flame retardant housing material and PA Driver to suit the new approval requirements. One-Shot design simply snap-fits in seconds to the surface mounting ring, reducing installation time considerably.

NOTE: This model requires no external equalisation to meet the AS IS7240.24 standard.

Features:

Designed to meet AS ISO7240.24 standard for fire & evacuation warning systems - NO EXTERNAL EQ REQUIRED.
Excellent speech intelligibility
High quality speaker driver developed for BGM, paging and emergency warning applications
Patented 2 way latching system reduces installation time.
Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
Fitted with supervisory capacitor for line monitoring.
High impact enclosure & grille.
Australian designed & assembled.
5 year warranty.

Specifications:

Rated Noise Power: 5W

Power Taps & Impedance (100V line): 0.33W (30kΩ), 0.66W (15kΩ), 1.25W (8kΩ), 2.5W (4kΩ), 5W (2kΩ)

Sensitivity: 91dB (1W @ 1m), 79dB (1W @ 4m).

Maximum Sound Pressure Level: 97dB (5W @ 1m), 85dB (5W @ 4m)

Frequency Response: 100Hz - 15kHz

External EQ: Not Required (meets AS ISO7240.24 without EQ)

Coverage Angle (-6dB): 500Hz: >180°, 1000Hz: 155°, 2000Hz: 120°, 4000Hz: 80°

Environmental Type: A (for indoor applications as per standard)

Speaker Component: 100mm (4") Paper Cone Speaker

Mounting Method: Surface Attachment

Line Monitoring: Yes, 22µF Bipolar Capacitor

Applicable Cable: 2.5mm (14AWG) max conductor area

Connection: 4 Way Screw Terminal

IP Rating: IP 21C

Finish: Black flame retardant ABS grille and housing (Taitalac 8540T), Clear flame retardant ABS spring clips (Makrolon 6557)

Weight: 0.9kg

Dimensions: 280Ø x 80 mm

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.
