Designed to meet AS ISO7240.24:2018. Our first One-Shot speaker with a aluminium grille, this model has been designed for installations requiring a premium finish whilst still meeting the required fire standards. It can also be used for standard 100V PA/BGM installations.

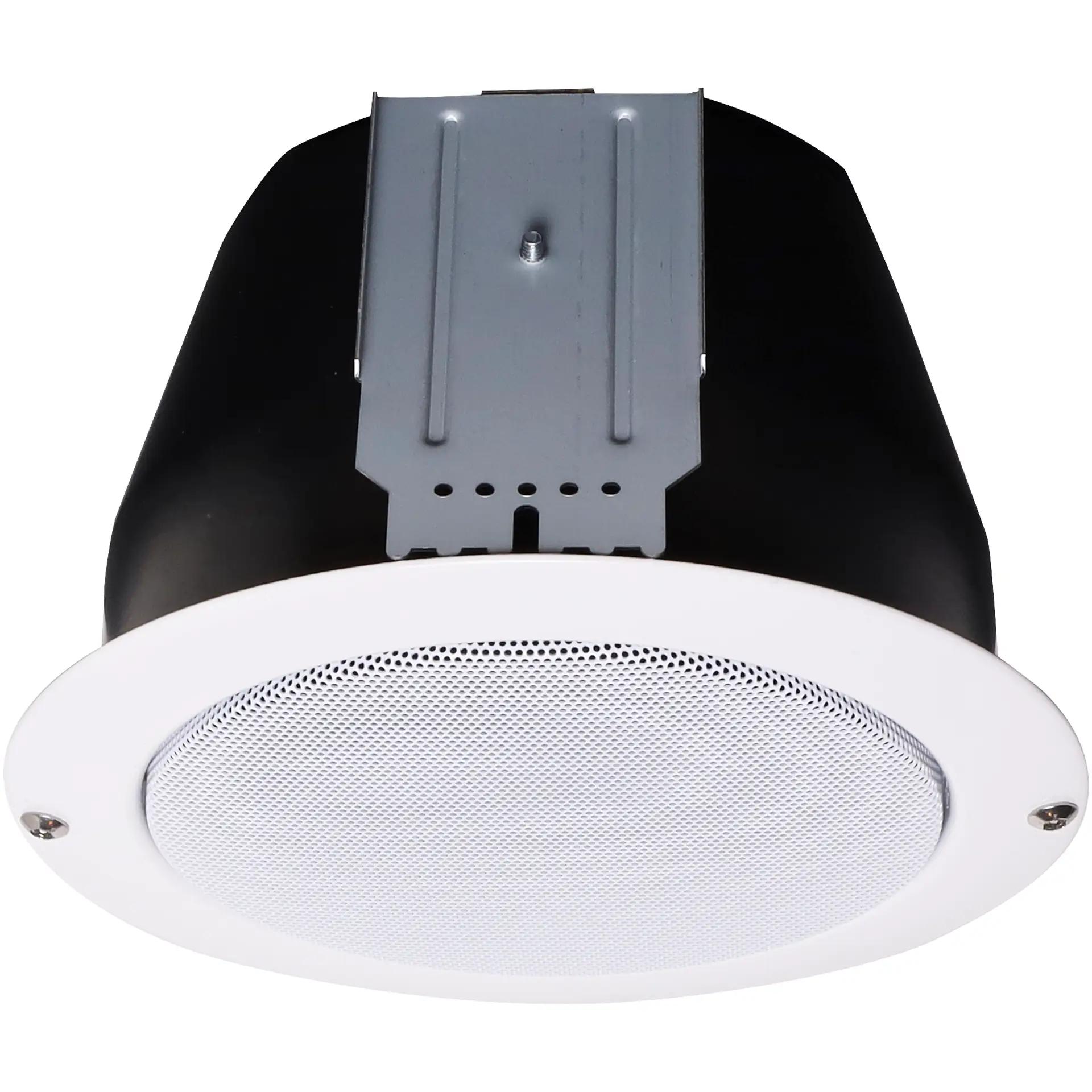

130mm 100V 10W Ceiling EWIS Speaker White Metal Grille

Name: 130mm 100V 10W Ceiling EWIS Speaker White Metal Grille
SKU: CF0887
Price: 150.00 AUD
Availability: InStock

by: One-Shot

SKU: CF0887

This 130mm (5") 10W ceiling speaker is engineered to EN54-24 and provides high levels of speech intelligibility for EWIS evacuation communication systems.

$150.00

All Prices Shown are (ex GST)

Bulk Pricing

ea	$150.00
2+	$136.36
4+	$120.00

i h

Overview
Details
Warranty
Downloads

Overview

This 130mm (5") 10W ceiling speaker is engineered to EN54-24 and provides high levels of speech intelligibility for EWIS evacuation communication systems. Installation is via the spring loaded steel torsion plates on the sides of the fire rated rear speaker enclosure. Cabling can be terminated using the 4 way ceramic terminal block allowing simply loop-in, loop-out cabling. Cable glands to suit are PG11 and we recommend H4315A and H4316A - see accessories listed below.

Features:

Round metal (steel) coaxial ceiling speaker.
EN54-24 certified for use with voice alarm and evacuation systems.
Quick installation with torsion springs.
Two-way speaker system comprising a bass mid-range driver and separate tweeter for enhanced performance.
Use for speech and background music

Specifications:

Standards
Compliant to EN54-24
Compliant to BS5839:8

Electrical
Rated power: 10 Watts
Power taps: 10/5/2.5/1.25 Watts
Impedance: 100V 1k/2k/4k/8k Ohms
Driver impedance: 8 Ohms
Frequency Range: (BSEN60268-5) 130Hz - 18,500Hz
SPL:
1m, 1 Watt, Octave, 100 Hz-10 kHz 90dB
1m, Full power, Octave, 100 Hz-10 kHz 100dB
4m, 1 Watt, 1/3 Octave, 100 Hz-10 kHz 78dB
4m, Full power, 1/3 Octave, 100 Hz-10 kHz 85dB
Dispersion at 1k/2k Hz: 175°/136° Horizontal, 175°/97° Vertical

Environmental
IP Rating: 21
Min/Max ambiment temperature: -10°C to 55°C
Relative humidity: ≤95%

Mechanical
Dimensions: Ø189 x 115.7mm
Net weight: 1.5kg
Colour: White, RAL9016
Material: Steel
Mounting: Torsion springs
Cut-out: Ø164mm

Safety
Ceramic Block
Thermal Fuse
Capacitor for DC line monitoring

Details

Products specifications

Warranty	12 Months
Speakers
Input	100 Volt Line Speakers
Size	5" (130mm)
