CF2234 is a ceiling mount speaker certified to the AS ISO7240.24 standard for fire & evacuation announcements in buildings. White metal grille finish.

200mm 100V 5W Ceiling EWIS Speaker White Metal Grille

Name: 200mm 100V 5W Ceiling EWIS Speaker White Metal Grille
SKU: CF2234
Price: 131.82 AUD
Availability: InStock

by: One-Shot

SKU: CF2234

CF2234 is a ceiling mount speaker certified to AS ISO7240.24 for fire & evacuation announcements in buildings. White metal grille finish.

$131.82

All Prices Shown are (ex GST)

Bulk Pricing

ea	$131.82
4+	$118.18
10+	$109.09

i h

Overview
Details
Warranty
Downloads

Overview

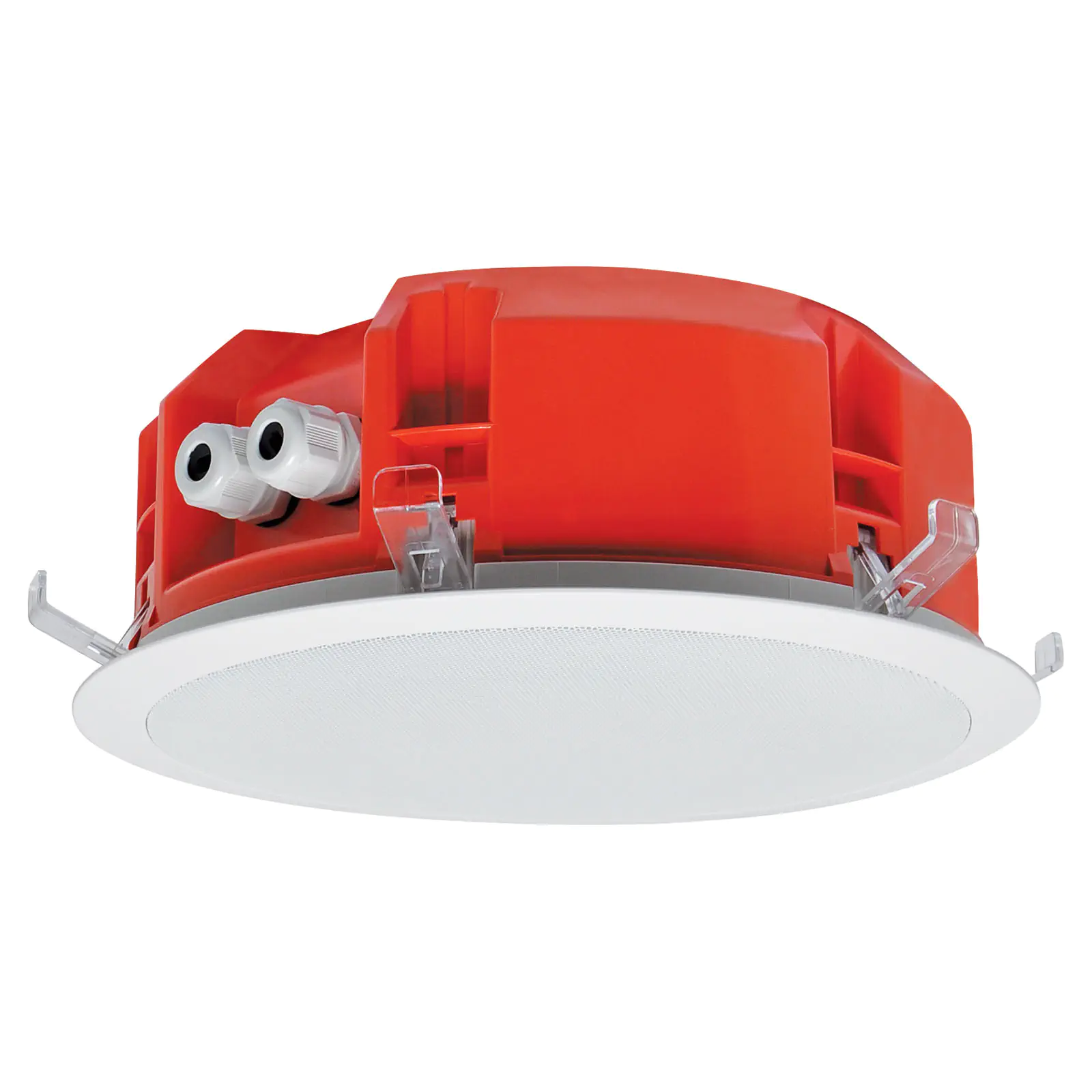

CF2234 is a ceiling mount speaker certified to the AS ISO7240.24 standard for fire & evacuation announcements in buildings. Each speaker is fitted with a fire retardant speaker/transformer dome and is fitted with sealed gland cable entries and terminal blocks for easy on site termination. The speaker utilises the One-Shot ‘snap fit’ mounting system. The CF2234 features a metal grille.

Features:

Designed to meet Australian Standard AS ISO7240.24
Excellent speech intelligibility
Overall depth only 108mm deep.
Tuned PA driver designed to meet the latest fire standards
High quality speaker driver developed for BGM, paging and emergency warning applications
Patented 6 way latching ensures a neat, sag free installation.
Fitted with 4 way wire protect terminal for loop in, loop out wiring.
Fitted with cable restraint plate and flame retardant safety cover.
Fitted with supervisory capacitor for line monitoring.
Assembled in Australia.
5 year warranty.

Specifications:

Rated Noise Power: 5 Watts (100V line)

Power Taps & Impedance (100V line): 0.33W (30kΩ), 0.66W (15kΩ), 1.25W (8kΩ), 2.5W (4kΩ), 5W (2kΩ)

Sensitivity: 94dB (1W @ 1m), 82dB (1W @ 4m)

Maximum Sound Pressure Level: 100dB (5W @ 1m), 88dB (5W @ 4m)

Frequency Response: 100Hz - 15kHz, 315Hz-6.3kHz: ±5dB

Coverage Angle (-6dB): 500Hz: >180°, 1000Hz: 165°, 2000Hz: 85°, 4000Hz 65°

Environmental Type: A (for indoor applications as per standard)

Speaker Component: 200mm (8”) paper cone speaker

Mounting Hole: 246mmØ

Mounting Method: 6 x plastic spring loaded clip

Line Monitoring: Yes, 22µF bipolar capacitor

Applicable Cable: 2.5mm2 (14AWG) max conductor area

Connection: 4 way screw terminal

Finish: White flame retardant ABS grille (ABS AF312C),

Clear Flame retardant ABS spring clips (Makrolon 6557),

Red flame retardant ABS transformer dome cover (Starex VH-0800)

Powdercoated aluminium grille insert (RAL9003 white)

Dimensions: 266Ø x 108Dmm

Weight: 1.25kg

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty	5 Years
Speakers
Input	100 Volt Line Speakers
Size	8" (200mm)

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Datasheet

PDF

Brochure

PDF

Certificate Of Conformity

PDF
